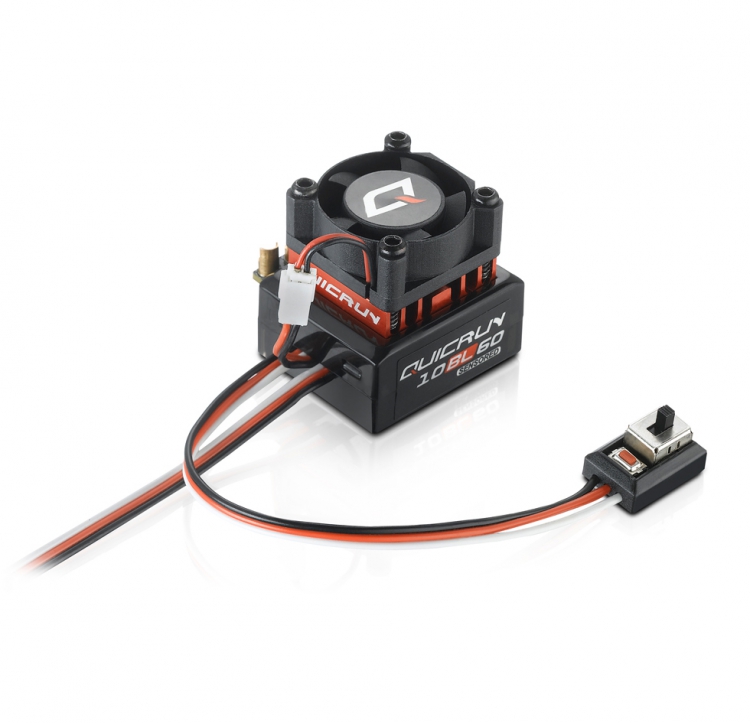

QuicRun 10BL60 Sensored ESC for Cars 1/10

438 SEK per pc

Secure payment by card
E-mail us, we reply swiftly!
Fast Deliveries
Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
Click on "Chat with us" and we can help you immediately!

* We can be busy, call again if we don´t answer!

BrandHobbywing

Description

Article no.: MC_HW30108000

Easy Operation
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Compact Design & SD/SL Dual Mode Supported
With the compact design, it’s applicable to various chassis. With the Dual (Sensored/Sensorless) Drive Mode, it’s compatible with different motors and brings racers two different control feel.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN 10BL60-SD to not only provide high power output but also overload protection of the ESC circuit.

Efficient Cooling System

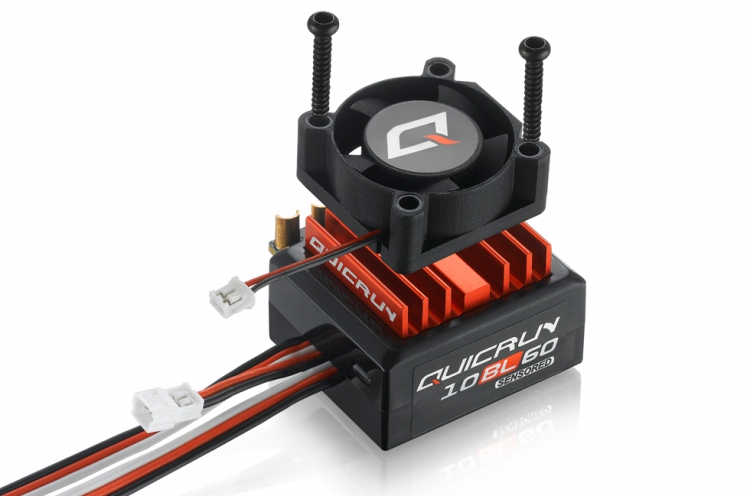

Hobbywing patented heat-conductive copper bar cover on the power board of the QUICRUN 10BL60-SD, which can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum heat sink housing, combined with high-performance cooling fan can keep your ESC as cool as possible.

Single-button Programming & Factory Reset
The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.

Wide Applicability

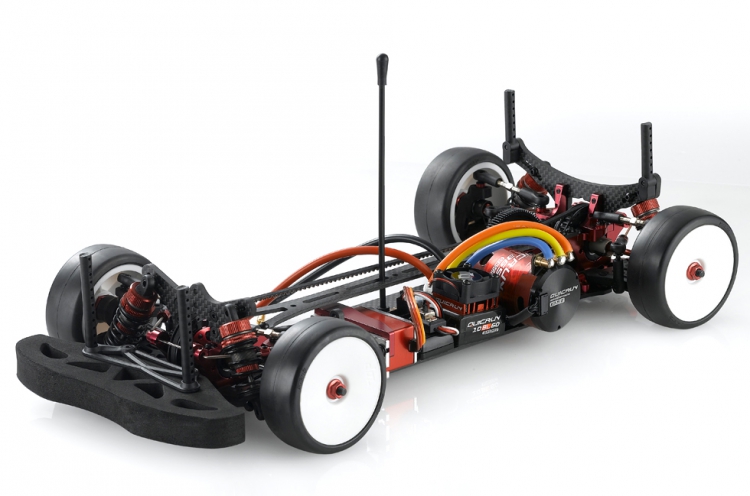

This ESC is designed for practice and daily training of1/10^th, 1/12^th scale touring cars, buggies, and F1.

Specifications

Scale: 1/10^th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: No
Cont./Peak Current: 60A/380A
Input: 2-3S LiPo/6-9 Cells NiMH
BEC Output: Linear Mode: 6V/2A

Wires & Connectors

Input Wires: Red-12AWG-200mm*1/Black-12AWG-200mm*1
Output Wires: Blue-12AWG-200mm*1/Yellow-12AWG-200mm*1/Orange-12AWG-200mm*1
Input Connectors: No
Output Connecotors: No

(Note: All the wire length above is the original length not the length you see from the outside.)

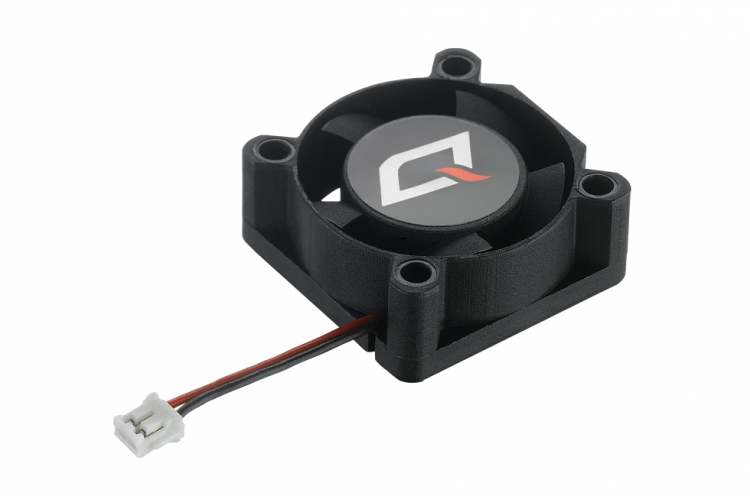

Fan

Size: 25.0x25.0x10.0mm
Voltage Range: 5-8.4V
Powered by: Powered by BEC

ESC Programing via

SET Button on ESC: Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
Program Port: Program/Throttle Wire

Firmware

Firmware Upgrade: Not Supported

Size & Weight

Size: 33x28x31.5mm (w/ Fan)
Weight: 59g

Applications

Motors: SL BL Motors/SD BL Motors
Vehicles: 1/10^th Touring Cars/Buggies/Drift Cars/F1

KV Rating/T Count:

2S LiPo: 1/10^th Touring Cars?8.5T, 1/10^th Buggies?13.5T
3S LiPo: 1/10^th Touring Cars?13.5T, 1/10 Buggies?17.5T
(3650 Motors)

Sensored motor wiring
When using sensored brushless motor, please connect the “SENSOR” port of the ESC and the the “SENSOR” port of the motor with a sensor wire. For sensored brushless motor, the #A, #B, #C wires of the ESC MUST be connected with the motor wire #A, #B, #C respectively. Do not change the wires sequence optionally! (#A is Blue, #B is Yellow, #C is Orange.)

Sensorless motor wiring
When using sensorless brushless motor, the #A, #B, #C wires of the ESC can be connected with the motor wires freely (without any order). If the motor runs in the opposite direction, please swap any two wire connections. Please disconnect the battery from the ESC after running the car!
