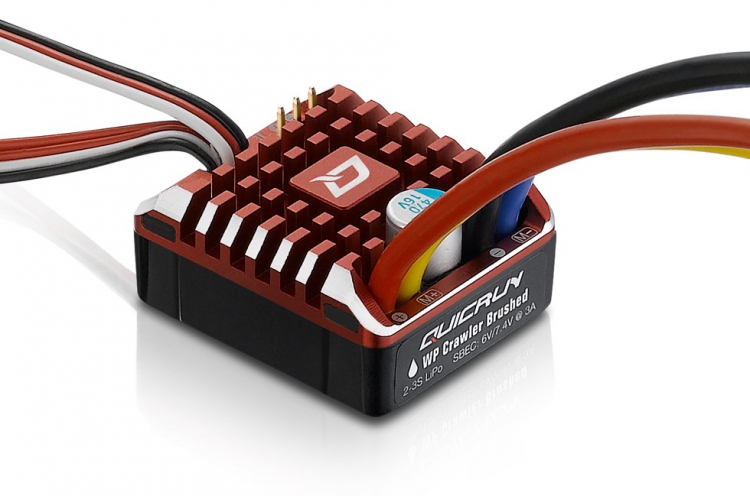

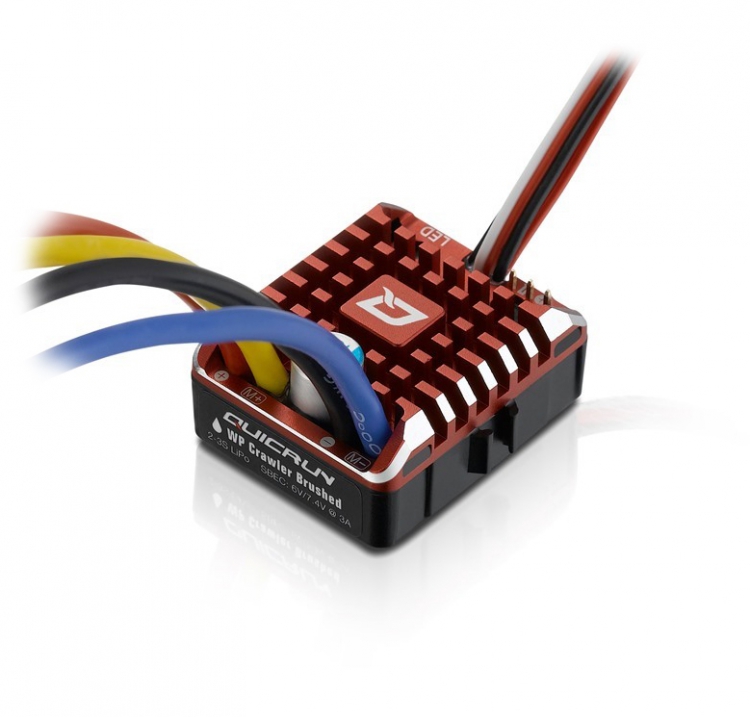

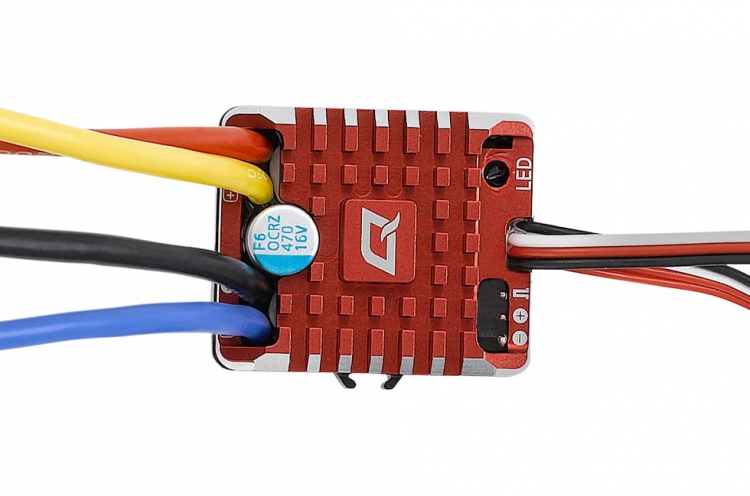

QuicRun WP Crawler Brushed ESC

558 SEK per pc

Secure payment by card
E-mail us, we reply swiftly!
Fast Deliveries
Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
Click on "Chat with us" and we can help you immediately!

* We can be busy, call again if we don´t answer!

BrandHobbywing

Description

Article no.: MC_HW30112750

Special Design for 1/10^th, 1/8^th Crawlers
The reliable hardware combined with powerful software (features an array of programmable parameters like start force, drag brake rate, and etc.) creates an ideal power solution to 1/10^th, 1/8^th rock crawlers.

Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology
The adjustable PWM frequency combined with advanced DEO/freewheeling technology guarantees users great throttle linearity and driving feel.

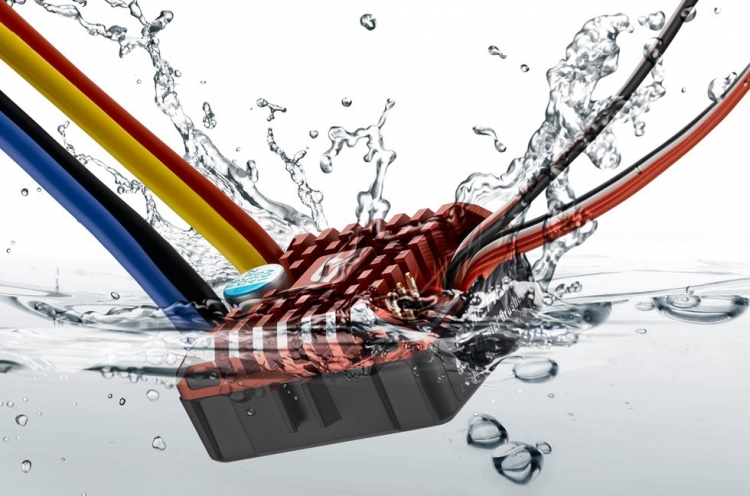

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the WP-Crawler-Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.

Excellent Braking Performance
Hobbywing's innovative, fine-tunable drag brake rate and adjustable drag brake and brake force greatly improve the brag brake and allow users to have the excellent braking performance.

Super Internal BEC
The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows the use of various standard servos, high voltage servos and other peripherals.

15 Programmable Parameters
The WP-Crawler-Brushed, which features 15 programmable parameter items, is applicable to various vehicles and tracks.

Separate Programming/Fan Port
The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LED program box for ESC programming.

A LED Program Box is Included
A standard, dedicated LED program box (included in the box) allows users to program the WP-Crawler-Brushed easily.

Specifications

Scale: 1/8^th & 1/10^th
Brushed/Brushless: Brushed
Waterproof: Yes
Cont./Peak Current: 80A/400A
Input Voltage: 2-3S Lipo/5-9 Cell NiMH
BEC Output: Switch Mode: 6V/7.4V@3A

Wires & Connectors

Input Wires: Red-14AWG-200mm*1 / Black-14AWG-200mm*1
Output Wires: Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1

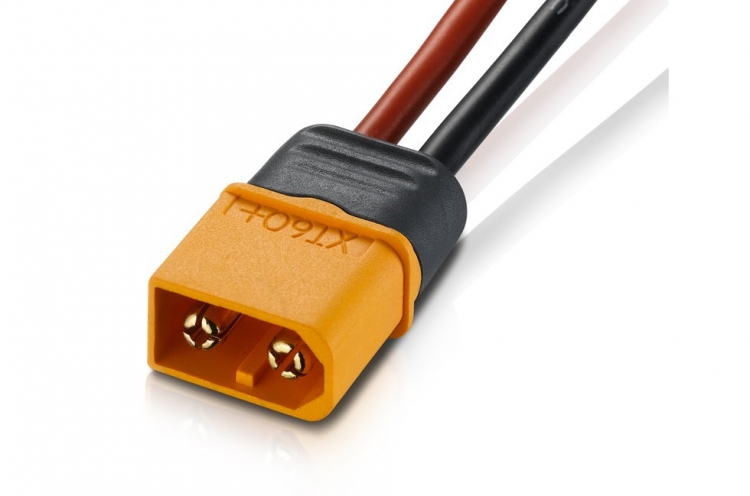

Input Connectors: XT60 Connectors
Output Connectors: No

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via

SET Button on ESC: Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
Program Port: Separate Program Port

Firmware

Firmware Upgrade: Not Supported

Size & Weight

Size: 36.2x31.6x17.0mm
Weight: 58.5g (w/Wires)

Applications

Motors: Brushed Motor (540/550/775 size motors)
Vehicles: 1/8^th,1/10^th Rock Crawlers

KV Rating/T Count

Brushed Motor Limit with 2S LiPo/6S NiMH: ?10T or RPM<30000@7.4V
Brushed Motor Limit with 3S LiPo/9S NiMH: ?16T or RPM<20000@7.4V
