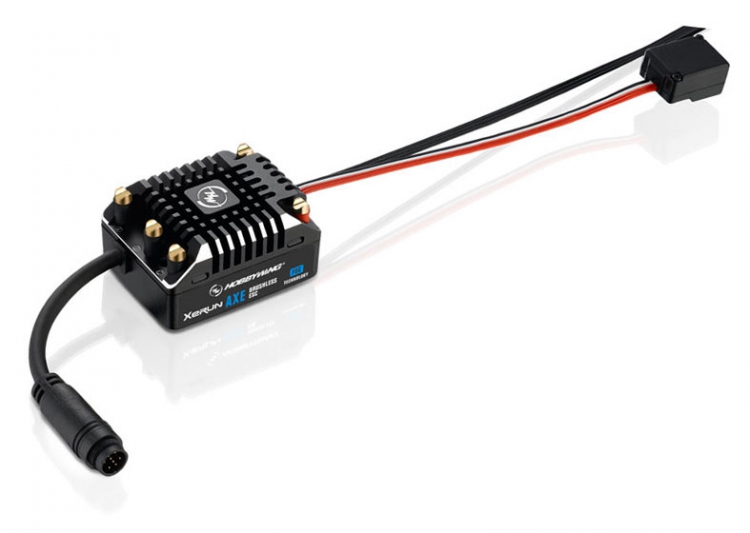

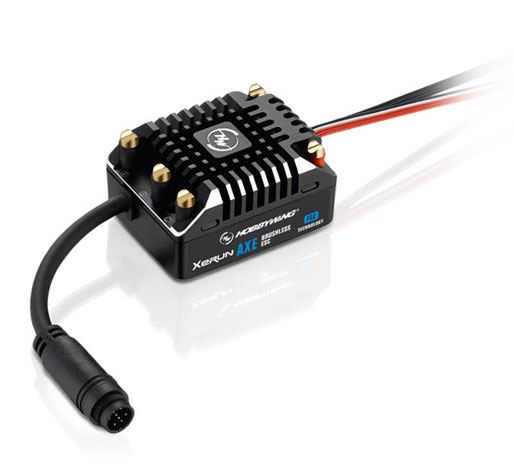

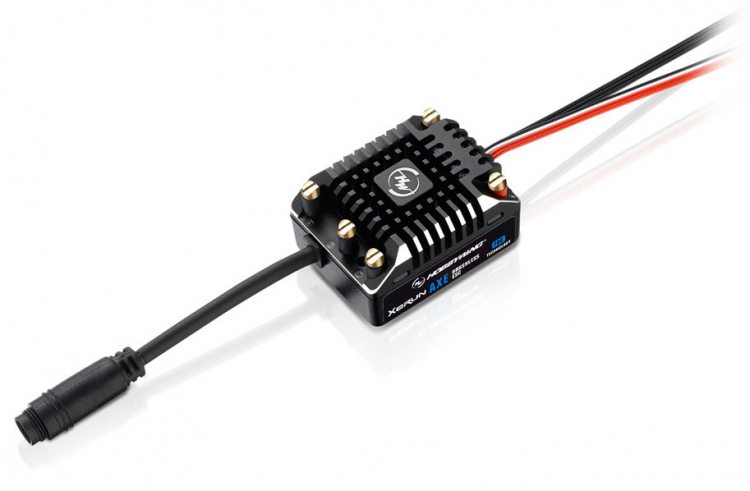

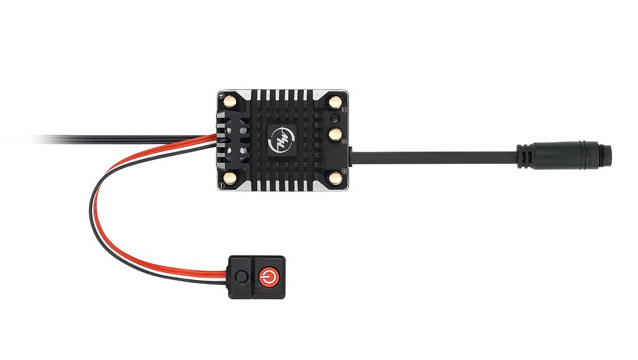

Hobbywing XeRun AXE Brushless Crawler ESC

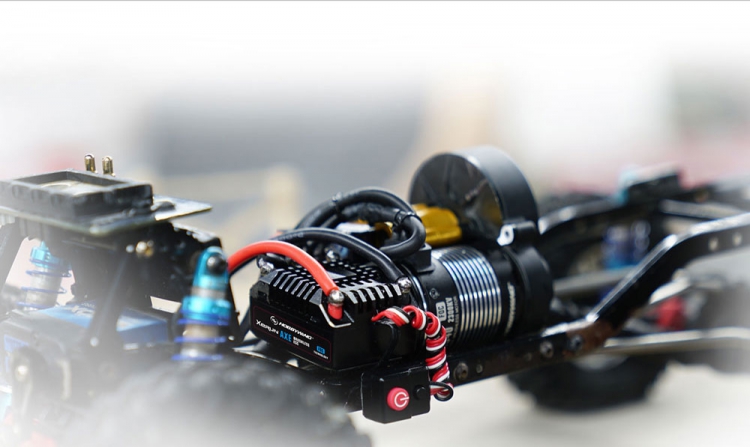

The AXE system is an unique brushless system that gives the scale trail & crawlers intelligent torque output and closed loop for easy control in all situations. That is possible due to the new motors that has a patented staggered pole rotors and new FOC sensors that gives a new level of brushless performance.


Features:

• The first FOC (Field-oriented Control) brushless power system for rock crawlers will provide the very powerful low rpm torque compared to standard sensored brushless power systems and brushed power systems. This also translates to higher efficiency and longer runtimes.
• The chip-type magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs the pure and precise signals indicating the rotor position.
• The waterproof and dust-proof design (*IP67 standards) allows the AXE brushless power system to be used in all weather & track conditions without any issue of damage caused to the system from water or dust. Damage to the vehicle caused by water, mud, or conditions should be monitored closely when running in muddy, wet, or adverse conditions.
• Intelligent torque output & speed closed-loop control for easy control, and consistent motor RPM under all loads.
• The adjustable drag brake & drag brake rate control with the maximum drag brake of up to 200% (that’s nearly twice the drag brake of standard brushless power systems) can provide unprecedented parking capacity on slopes, with no jerky stops.
• The innovative built-in Bluetooth connectivity allows users to read ESC data or update ESC firmware via a smart phone (installed with the HW LINK app).

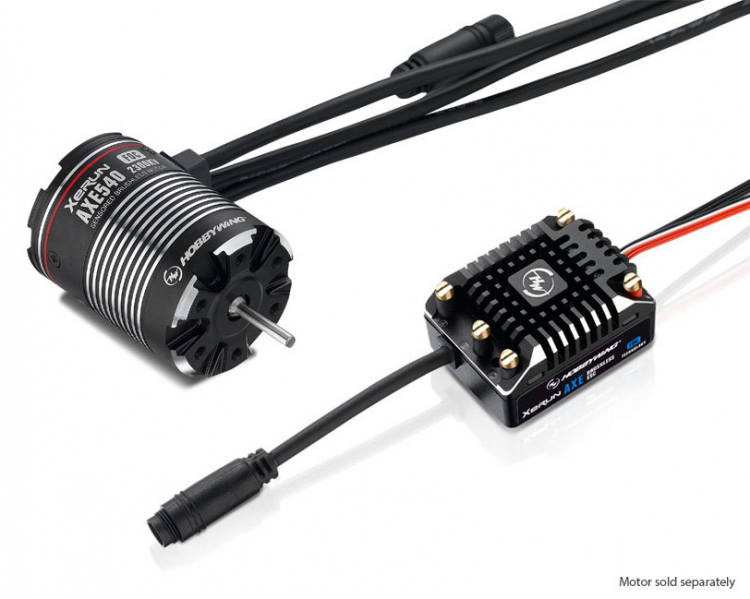

• The motor with 4 poles & 12 magnets, featuring Hobbywing’s “staggered pole” patent has zero cogging effect & torque ripple. It can work smoothly at low speeds. This greatly improves the maneuverability of rock crawlers at low speeds.

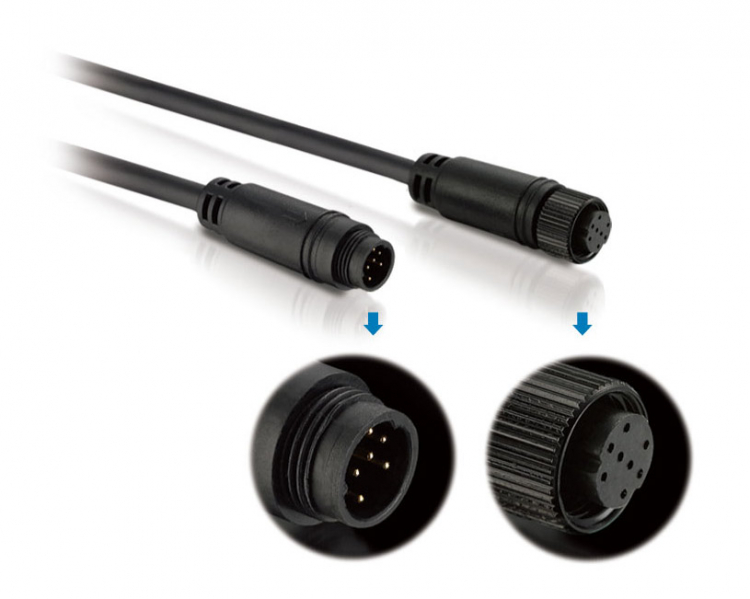

• The new sensor harness, which features the plug-and-screw design, has a silicon O ring inside. The new design & O ring not only provide firm connection between motor and ESC but solves the “waterproof” challenge for the sensor ports.

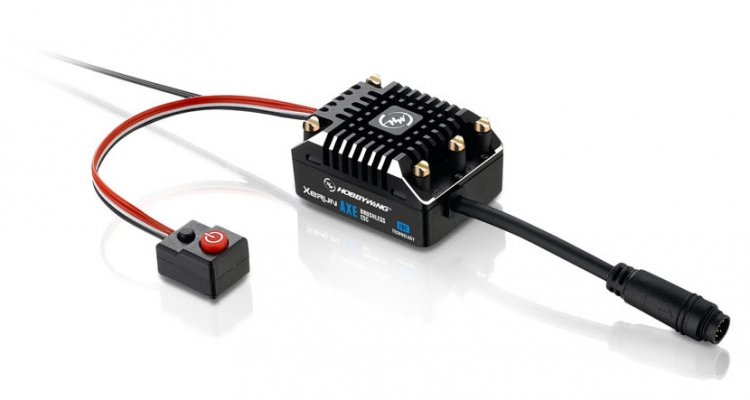

• Advanced and secure electronic switch features a waterproof, dust-proof and shock-resistant design.
• Multiple protections: low-voltage cutoff, thermal, fail safe (throttle signal loss), motor lock-up, over current, and battery reverse.

Specifications:

• Scale: 1/10th
• Type:: Brushless Sensored FOC
• Waterproof: YES（IP67）

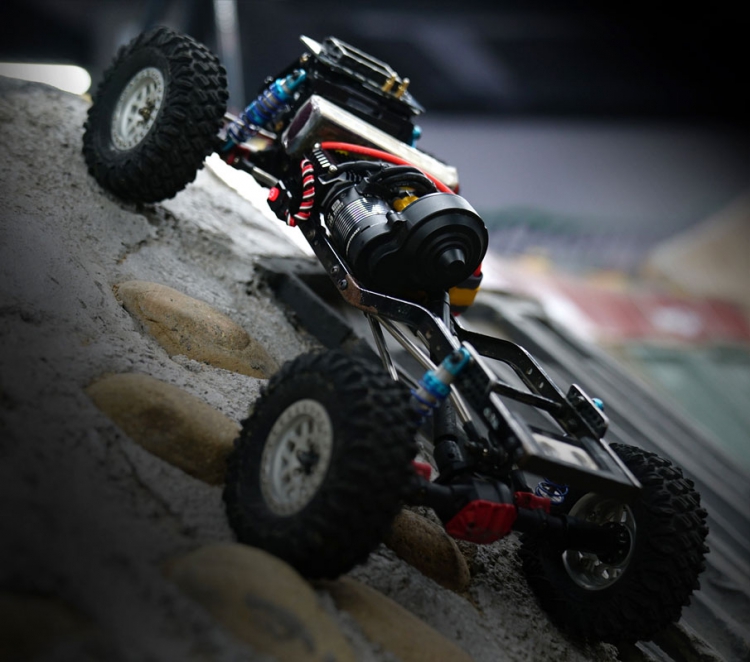

• Applications: 1/10thRock Crawler
• Cont./Peak Current: 60A/360A
• Input Voltage: 2-3S LiPo / 6-9 Cell NiMH
• BEC: Switch Mode 6V / 7.4V @3A
• Input Wires: 14AWG x 200mm
• Output Wires: No
• Input Connectors: XT60
• Output Connectors: Solder Posts
• Size: 47.4 x 36.2 x 24.6 mm
• Weight: 82g

ESC Programing via:

• SET Button on ESC: Not Supported
• LED Program Box: Not Supported
• LCD Program Box: Not Supported
• WiFi Module: Not Supported
• Bluetooth Connection: Supported
• Firmware Upgrade: Supported
