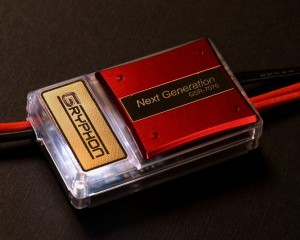

Gryphon QUASAR Hyper 75V 20A HV Switching BEC GSR-7075 LMT
895 SEK per styck
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandGryphon
Description
Article no.: GSR-7075-LMT
Specification:
Input Voltage Range : 11V ~ 75.6V (3~18 Cells)
Output voltage Range : 5.2V, 6.0V, 6.8V, 7.4V, 8.4V Selectable
Voltage ADJ : 4.8V~7.7V ADJ (Potentiometer)
Output currant(Peak) : 20A
Output currant(Cont) : 10A
Low voltage alarm setup : 10V~75V (Available GDB-1010 or GDB-1030)
On/Off Switch : Available (GSB-1010P, GSB-1010S, GSB-1030P, GSB-1030S)
Size : 12mm(H) x 31mm(W) x 52mm(L)
Weight : 20g (Excluding Cables)
Input Voltage Range : 11V ~ 75.6V (3~18 Cells)
Output voltage Range : 5.2V, 6.0V, 6.8V, 7.4V, 8.4V Selectable
Voltage ADJ : 4.8V~7.7V ADJ (Potentiometer)
Output currant(Peak) : 20A
Output currant(Cont) : 10A
Low voltage alarm setup : 10V~75V (Available GDB-1010 or GDB-1030)
On/Off Switch : Available (GSB-1010P, GSB-1010S, GSB-1030P, GSB-1030S)
Size : 12mm(H) x 31mm(W) x 52mm(L)
Weight : 20g (Excluding Cables)
