Description
Article no.: MD_6410

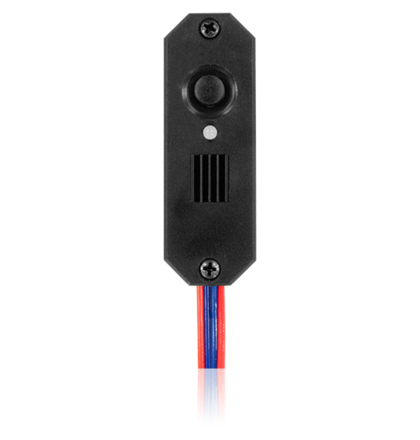

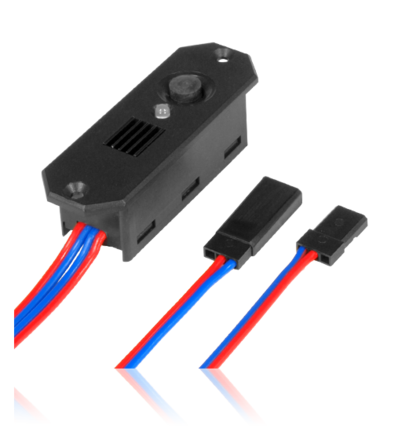

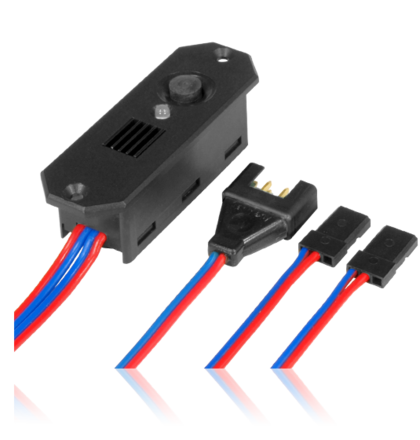

Digi-Switch
from PowerBox Systems
The smallest combined electronic switch / linear regulator system for modelling !
from PowerBox Systems
The smallest combined electronic switch / linear regulator system for modelling !
- Electronic switch, operated using a sensor button
- Linear IC-controlled voltage regulator
- Multi-colour LED for monitoring Li-Po battery voltage
- Low voltage detection
- Input voltage 8.40 Volts ( 2 Li- Po cells )
- Output voltage 5.50 Volts ( equates to charged 4-cell NC battery )
- Regulator capacity approx. 3 -5 A ( dependent upon available cooling )
- Weight only 15 grammes
- Small to medium-sized model aircraft with up to 6 servos
- F3A models
- Model gliders with up to 10 servos ( or more, according to servo size )
- Helicopters with up to 1.5 m rotor diameter
- Electric helicopters
- RC model cars
- Model boats
- Ignition systems designed for 4-cell NC battery operation
