PowerBox EVO

Name: PowerBox EVO
Brand: PowerBox
SKU: 4250
Availability: InStock

2,695 SEK per pc

Powerful dual battery power supply with 7 channels, voltage regulators and telemetry.

Features

7 channels
10 outputs
High-performance battery backer with high continuous load capacity
All power electronics duplicated
Redundant electronic switch
Four selectable output voltages: 6.0V, 7.4V, 7.8V or unregulated

Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum, SRXL2, Multiplex M-Link, JR X-BUS and Graupner HoTT
All features can be controlled from PowerBox and Jeti transmitters
Signal amplification for all 10 outputs
Voltage indication by means of tri-colour LEDs
Supports four battery types: LiPo, LiIon, NiMh/NiCd, LiFe
Servo feedback current suppression
Machined high-performance heat-sink for optimised heat dissipation
Machined, anodised aluminium switch case
Compact format

Technical Data

Operating voltage	4.0V - 9.0V
Power supply	2S LiPo, 2S Lilon, 2S LiFePo, 5S NiMH
Current drain Power-on state	66mA
Current drain Standby	8μA
Maximum load current	2x10 A (<30s 2x 40A)
Drop-out voltage	0.3V
Output voltage	6.0V, 7.4V, 7.8V, unregulated
Signal input	PWM

Supported RC systems	PowerBox, Futaba, Jeti, Spektrum, Multiplex, JR, G
Channels	7
Servo sockets	10
Supported telemetry systems	P²BUS, S.BUS2, EX-BUS, SRXL2, M-Link, Hott, JR-DMS
Dimensions	89 x 55 x 18 mm
Weight	69g
Weight Sensor Switch	8g
Temperature range	-30°C to +105°C

Set contents

PowerBox Evo
MicroSwitch
8x patch leads
6x fixing screws
4x rubber grommets and brass sleeves
Operating instructions

Product description

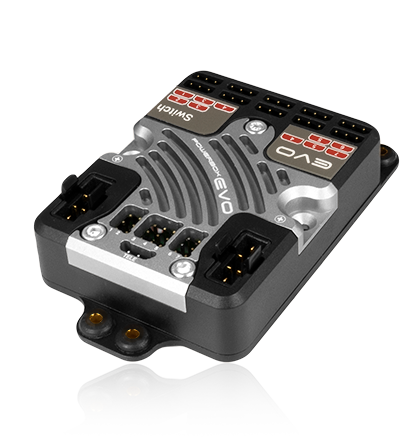

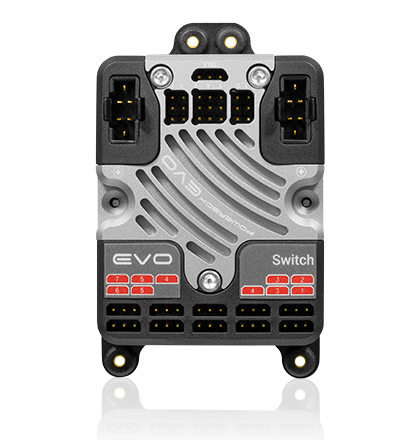

The PowerBox Evo is an ultra-compact dual power supply featuring 7 channels, regulated output voltage and telemetry.

The 7 inputs are assigned to 10 outputs, allowing two servos to be controlled in parallel on each of 3 channels, without requiring additional Y-leads. All servo outputs have integral signal amplification and are protected against servo feedback currents.

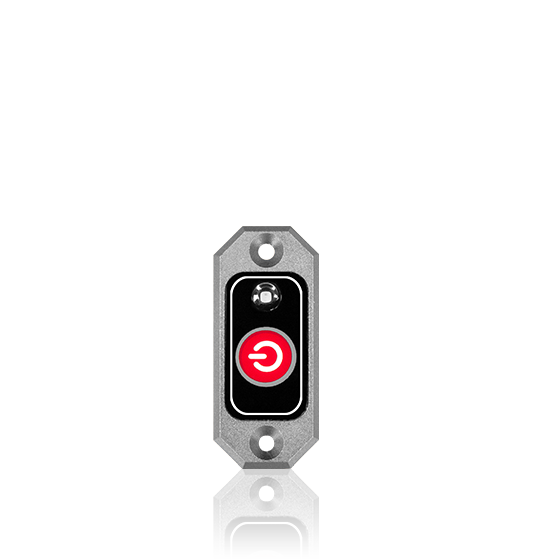

The PowerBox MicroSwitch included in the set is not subject to wear, and operates both electronic switches reliably. It is also used to set the output voltage and the battery type.

By default the two high-performance voltage regulators deliver 6.0V, but that value can easily be changed to 7.4V, 7.8V or no regulation at all using the PowerBox MicroSwitch.

The machined aluminium heat-sink ensures a high continuous load capacity.

The PowerBox Evo supports all current telemetry systems: PowerBox, Jeti, Futaba, Multiplex, Graupner, Spektrum and JR, which means that the voltage of both batteries can be monitored conveniently from the transmitter. It is also possible to read off the state of charge of the batteries at any time using the two tri-colour LEDs.

Files and media

Manual
