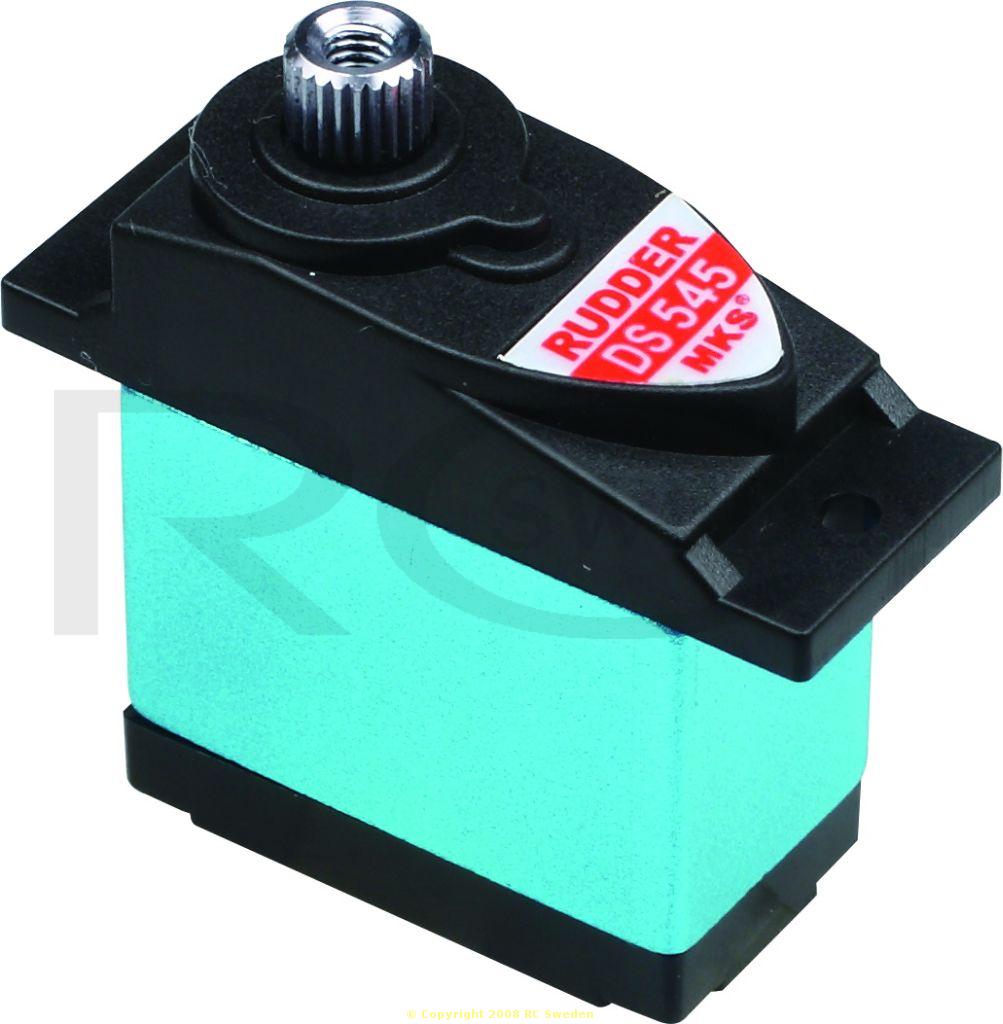

DS545
220 SEK per pc
4,8V - 5,0V0,073 - 0,070s/60°
2,20 - 2.30 kg.cm
Vikt 14,5g
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandMKS
- Servo TypeMicro
- Dead Band:0.002ms (Default)
- Control System:+Pulse Width Control
- Working frequence:1520μs / 80hz Digital mode/Analogy mode
- (RX) Required Pulse:3.0 ~5.0 Volt Peak to Peak Square Wave
- Operating Voltage:4.8 ~5.0 V DC Volts
- Operating Temperature Range:-10 to + 60 Degree C
- Operating Speed (4.8V):0.073 sec/60° degrees at no load
- Operating Speed (5,0V):0.070 sec/60° degrees at no load
- Stall Torque (4.8V):2.20 kg.cm (30.56 oz/in)
- Stall Torque (5.0V):2.30 kg.cm (31.95 oz/in)
- 360ﾰ Modifiable:NO
- Motor Type:Coreless Motor
- Potentiometer Drive:Indirect Drive
- Driver Type:FET
- Bearing Type:Dual Ball Bearings
- Gear Type:Aluminum-titanium alloy Gears*4 + Plastic gear *1
- Programmable:YES
- Connector Wire Length:15.0 cm (5.9 in)

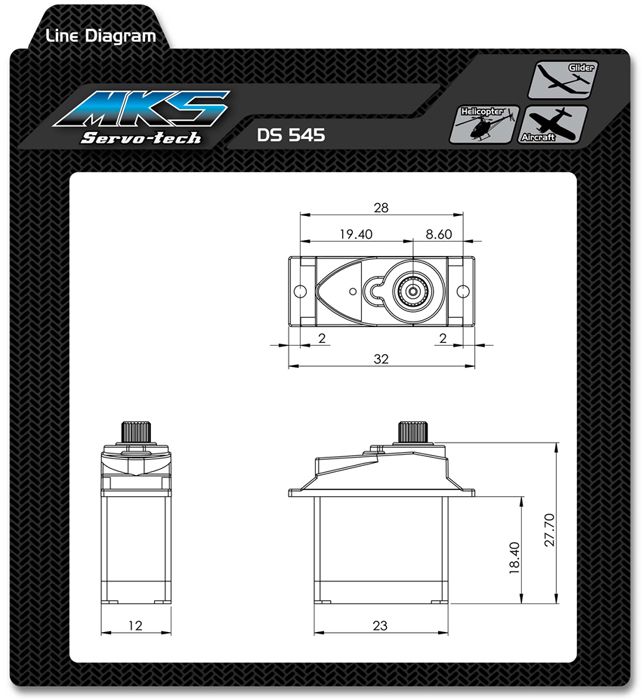

- Dimensions:23x12x25 mm (0.90x0.47x1.02 in)
- Weight:14.5 g (0.51 oz)
- BrandMKS Servo
Description
Article no.: MKS_S0013002
