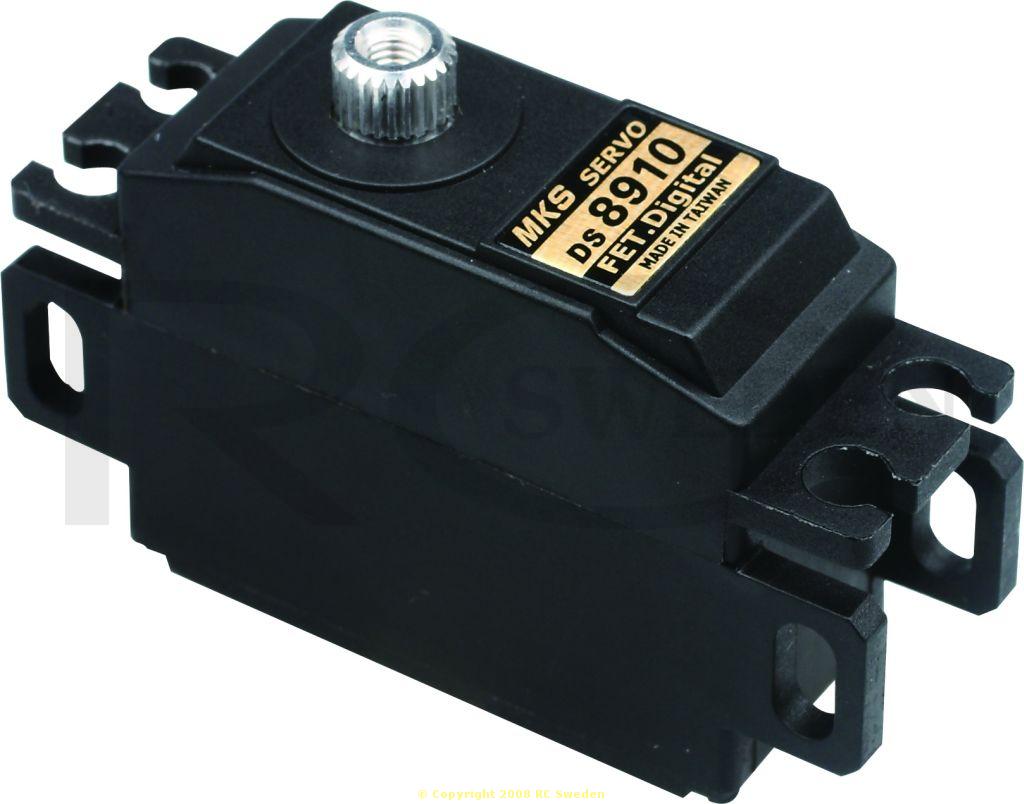

DS8910 Digital Servo
725 SEK per pc
4,8V - 5,5V0,054 - 0,047s/60°
2,01 - 2.30 kg.cm
Vikt 28,2g
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandMKS
- Servo TypeMini
- Dead Band:0.0008ms (Default)
- Control System:+Pulse Width Control
- Working frequence:760µs / 560hz
- (RX) Required Pulse:3.0 Volt Peak to Peak Square Wave
- Operating Voltage:4.8 ~5.5 V DC Volts
- Operating Temperature Range:-10 to + 60 Degree C

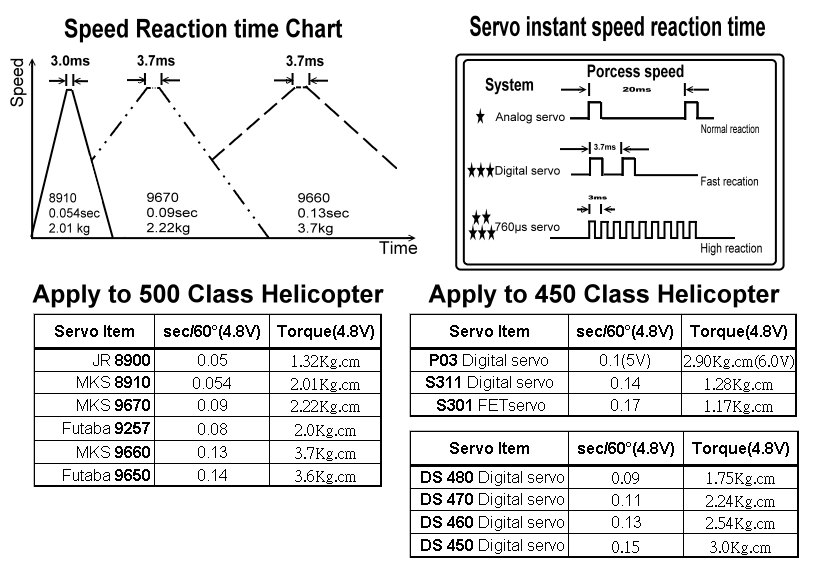

- Operating Speed (4.8V):0.054 sec/60° degrees at no load
- Operating Speed (5,5V):0.047 sec/60° degrees at no load
- Stall Torque (4.8V):2.01 kg.cm (27.9 oz/in)
- Stall Torque (5.5V):2.30 kg.cm (31.9 oz/in)
- 360ﾰ Modifiable:NO
- Motor Type:Coreless Motor
- Potentiometer Drive:Indirect Drive
- Driver Type:FET
- Bearing Type:Dual Ball Bearings
- Gear Type:2 Metal Gears + 3 aluminum-alloy Gears
- Programmable:NO
- Connector Wire Length:15.0 cm (5.9 in)

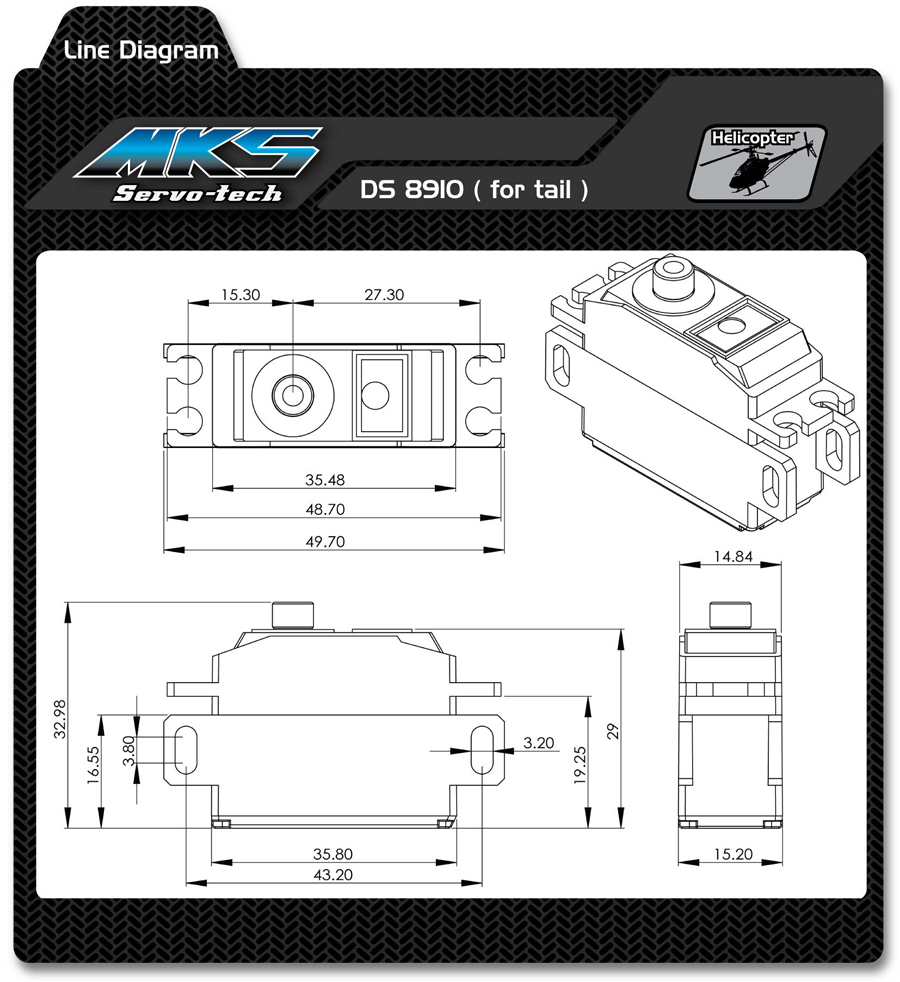

- Dimensions:35.8x15.2x29 mm (1.41x0.6x1.14 in)
- Weight:28.2 g (0.99 oz)
- BrandMKS Servo
Description
Article no.: MKS_S0008003
please use 4S Nicd/NiMH or use UBEC @ 4.8V~5.5V
