DS92
245 SEK per pc
4,8V - 6,0V0,075 - 0,060s/60°
2,30 - 2.85 kg.cm
Vikt 17,43g
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandMKS
- Servo TypeMicro
- Dead Band:0.001ms (Default)
- Control System:+Pulse Width Control
- Working frequence:1520µs / 333hz (Data 850µs-2150µs)
- (RX) Required Pulse:3.0 ~5.0 Volt Peak to Peak Square Wave
- Operating Voltage:4.8 ~5.5 V DC Volts
- Operating Temperature Range:-10 to + 60 Degree C
- Operating Speed (4.8V):0.075 sec/60° degrees at no load
- Operating Speed (5,5V):0.065 sec/60° degrees at no load
- Stall Torque (4.8V):2.30 kg.cm
- Stall Torque (5.5V):2.64 kg.cm
- 360ﾰ Modifiable:YES
- Motor Type:DC Motor
- Potentiometer Drive:Direct Drive
- Driver Type:FET
- Bearing Type:Dual Ball Bearings
- Gear Type:Chrome-Titanium alloy gear
- Programmable:NO
- Connector Wire Length:19.0 cm (7.5 in)

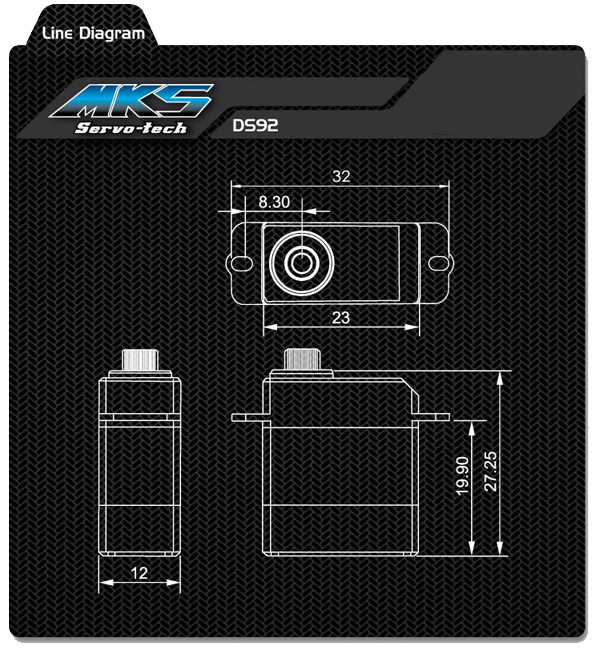

- Dimensions:23x12x27.25 mm (0.90x0.47x1.07 in)
- Weight:17.43 g (0.61 oz)
- BrandMKS Servo
Description
Article no.: MKS_S0018001
För att undvika problem med för hög spänning påminner vi här att det finns en begränsning på utspänning på följande MKS servo.

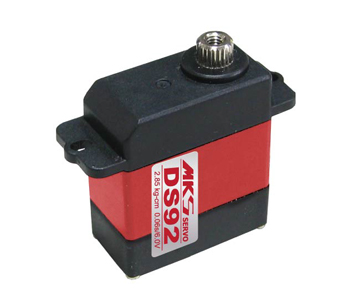

DS92 is a digital servo. The DS92 is revised from the linear output of DS95, it uses the plastic case to reduce weight and better applied on electric fixed wing airplanes. The motor of DS92 is good for starter and amateur flyers, not good for FBL system. We suggest the advanced flyers to use DS95 for FBL.
