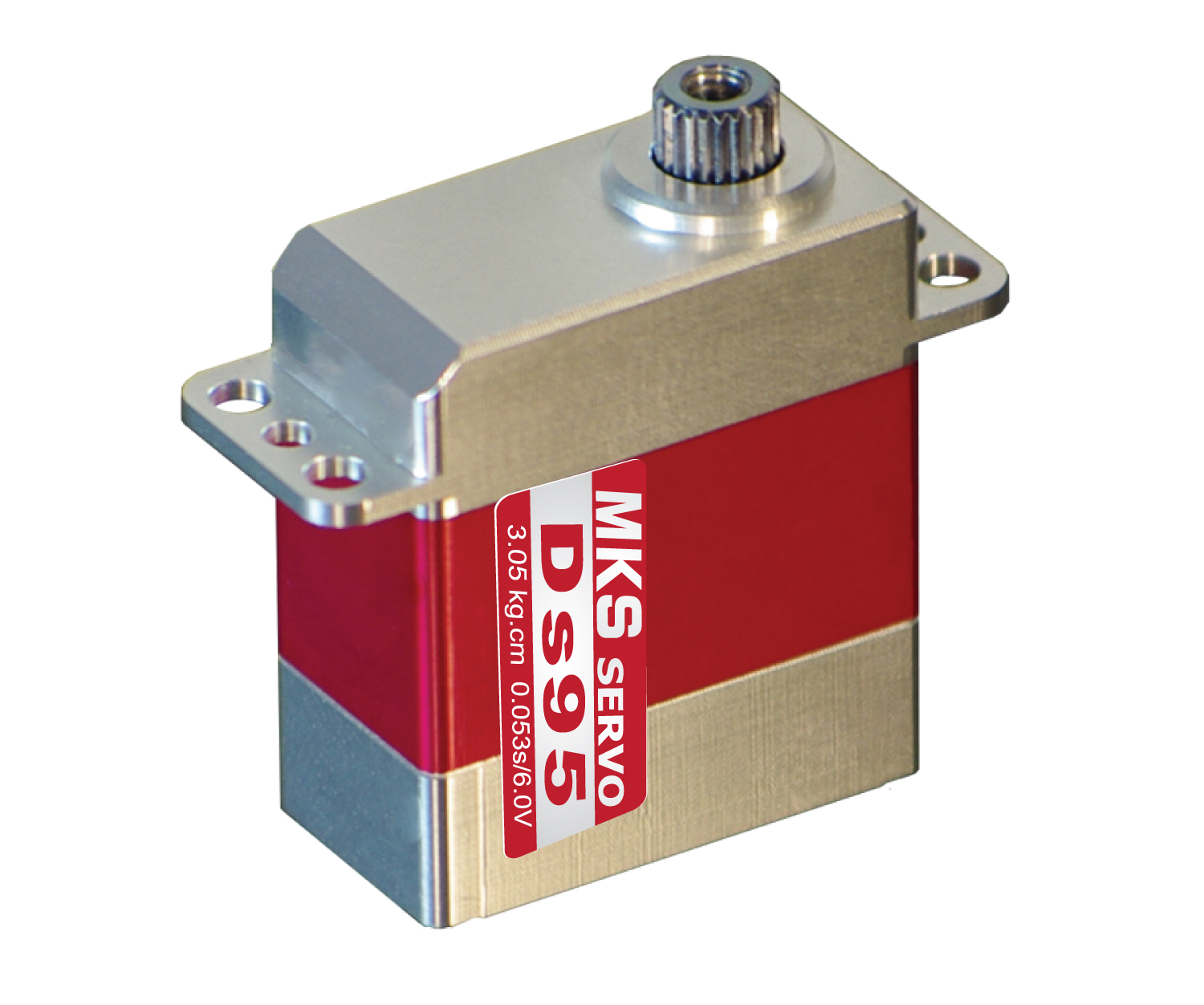

DS95
800 SEK per pc
4,8V - 6,0V0,066 - 0,053s/60°
2,44 - 3.05 kg.cm
Vikt 21,21g
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandMKS
- Servo TypeMicro
- Dead Band:0.001ms (Default)
- Control System:+Pulse Width Control
- Working frequence:1520µs / 333hz (Data 850µs-2150µs)
- (RX) Required Pulse:3.0 ~5.0 Volt Peak to Peak Square Wave
- Operating Voltage:4.8 ~6.0 V DC Volts
- Operating Temperature Range:-10 to + 60 Degree C
- Operating Speed (4.8V):0.066 sec/60° degrees at no load
- Operating Speed (6.0V):0.053 sec/60° degrees at no load
- Stall Torque (4.8V):2.44 kg.cm (33.88 oz/in)
- Stall Torque (6.0V):3.05 kg.cm (42.36 oz/in)
- 360ﾰ Modifiable:YES
- Motor Type:Coreless Motor
- Potentiometer Drive:Direct Drive
- Driver Type:FET
- Bearing Type:Dual Ball Bearings
- Gear Type:Chrome-Titanium alloy gear
- Programmable:NO
- Connector Wire Length:20.0 cm (7.86 in)

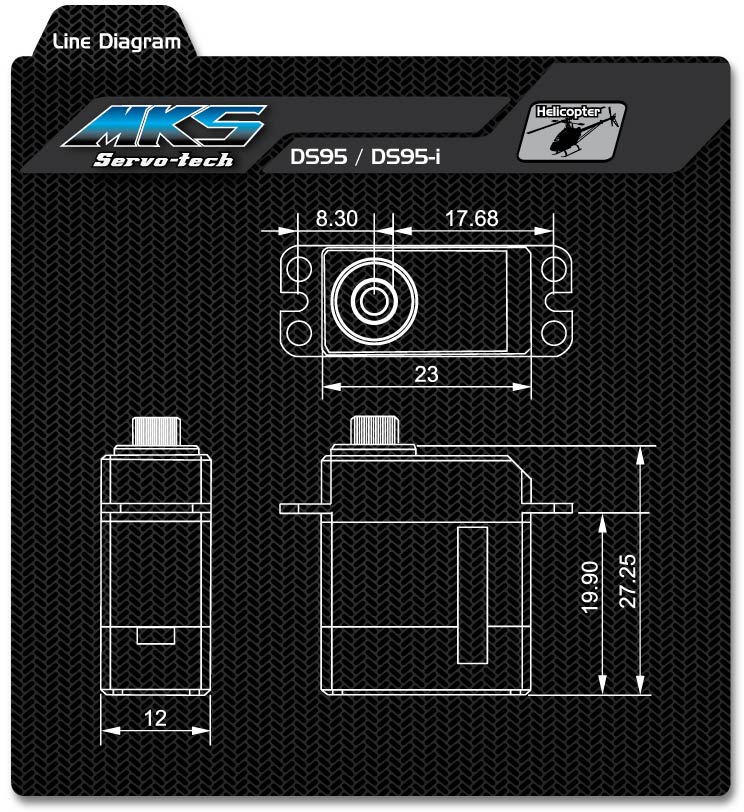

- Dimensions:23x12x27.25 mm (0.90x0.47x1.07 in)
- Weight:21.21 g (0.74 oz)
- BrandMKS Servo
Description
Article no.: MKS_S0017001
