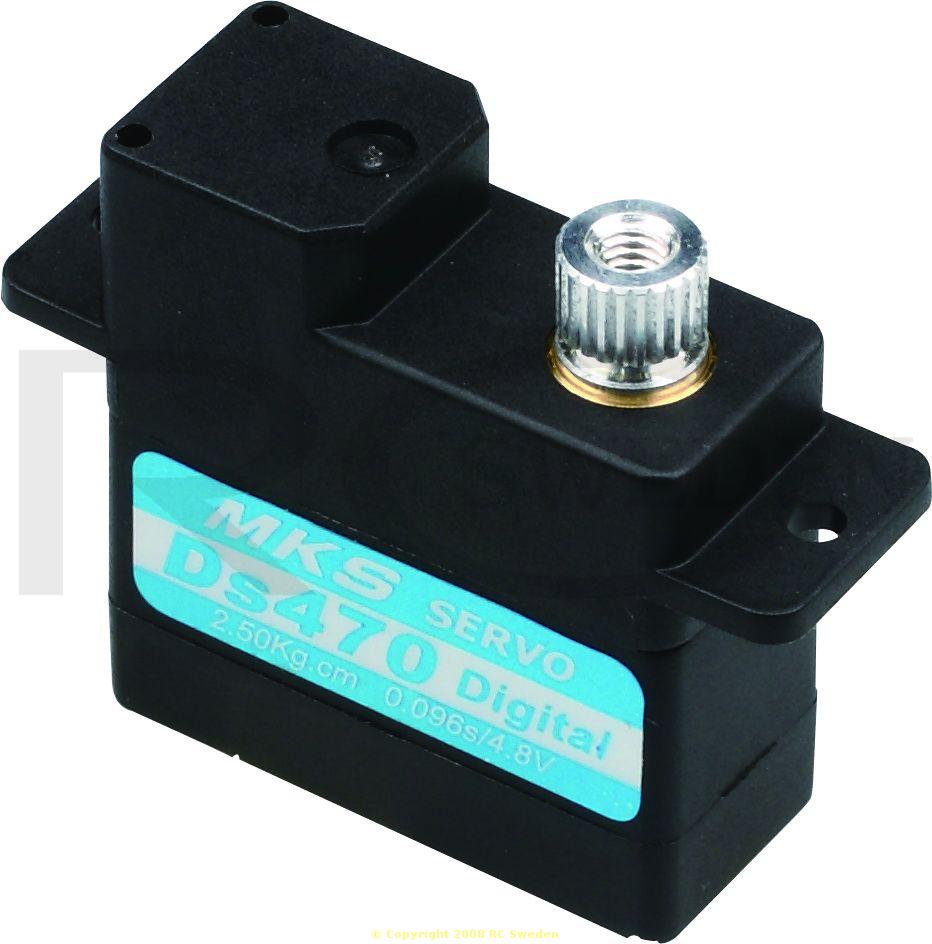

DS470
220 SEK per pc
4,8V - 5,0V0,089 - 0,085s/60°
2,37 - 2.47 kg.cm
Vikt 9,5g
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandMKS
- Servo TypeMicro
- Dead Band:0.002ms (Default)
- Control System:+Pulse Width Control
- Working frequence:1520µs / 333hz
- (RX) Required Pulse:3.0 ~5.0 Volt Peak to Peak Square Wave
- Operating Voltage:4.8 ~5.0 V DC Volts
- Operating Temperature Range:-10 to + 60 Degree C
- Operating Speed (4.8V):0.089 sec/60° degrees at no load
- Operating Speed (5,0V):0.085 sec/60° degrees at no load
- Stall Torque (4.8V):2.37 kg.cm (32.9 oz/in)
- Stall Torque (5.0V):2.47 kg.cm (34.3 oz/in)
- 360ﾰ Modifiable:YES
- Motor Type:Coreless Motor
- Potentiometer Drive:Indirect Drive
- Driver Type:FET
- Bearing Type:2 Jewel Bearing + 1 Bronze Bushing
- Gear Type:Metal + Aluminum-magnesium alloy Gears
- Programmable:YES
- Connector Wire Length:15.0 cm (5.9 in)

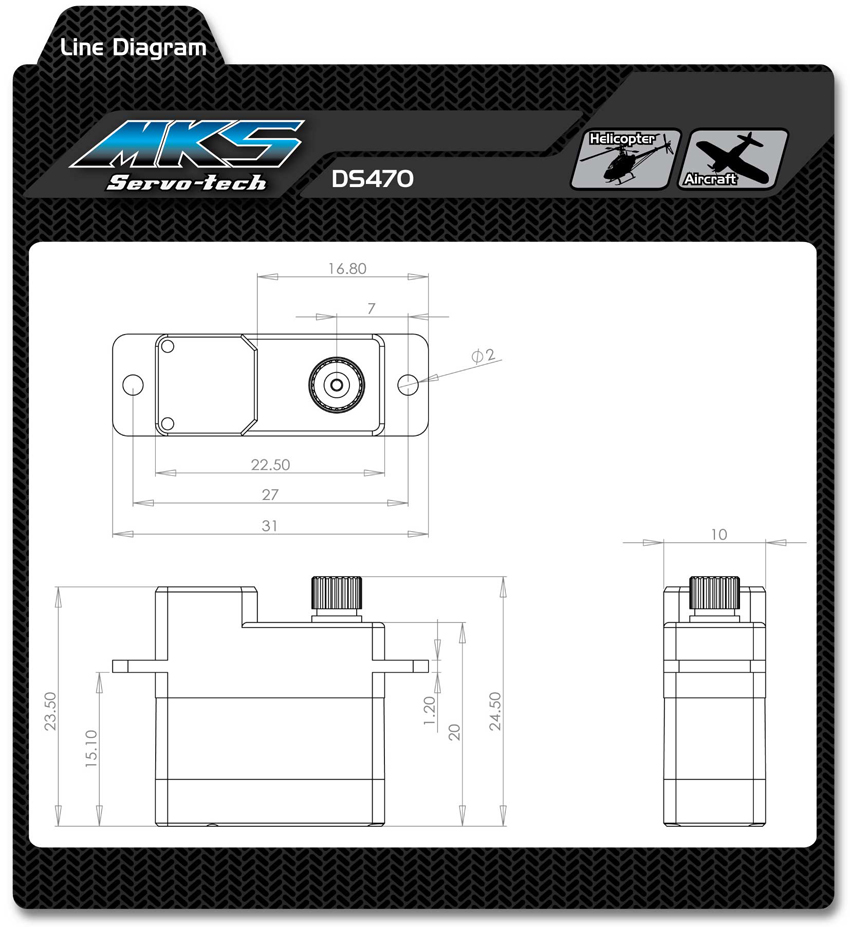

- Dimensions:22.5x10x23.5 mm (0.89x0.39x0.93 in)
- Weight:9.5 g (0.335 oz)
- BrandMKS Servo
Description
Article no.: MKS_S0009003
