DS530
210 SEK per pc
4,8V - 5,0V0,098 - 0,094s/60°
2,88 - 3.00 kg.cm
Vikt 13,0g
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandMKS
- Servo TypeMicro
- Dead Band:0.002ms (Default)
- Control System:+Pulse Width Control
- Working frequence:1520μs / 80hz Digital mode/Analogy mode
- (RX) Required Pulse:3.0 ~5.0 Volt Peak to Peak Square Wave
- Operating Voltage:4.8 ~5.0 V DC Volts
- Operating Temperature Range:-10 to + 60 Degree C
- Operating Speed (4.8V):0.098 sec/60° degrees at no load
- Operating Speed (5,0V):0.094 sec/60° degrees at no load
- Stall Torque (4.8V):2.88 kg.cm
- Stall Torque (5.0V):3.00 kg.cm
- 360ﾰ Modifiable:YES
- Motor Type:DC Motor
- Potentiometer Drive:Indirect Drive
- Driver Type:FET
- Bearing Type:Dual Ball Bearings
- Gear Type:Aluminum-titanium alloy Gears*4 + Plastic gear *1
- Programmable:YES
- Connector Wire Length:15.0 cm (5.9 in)

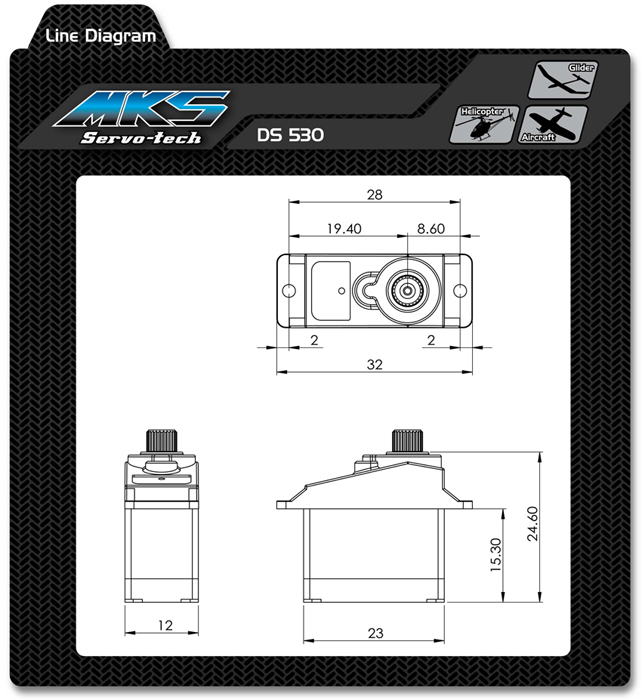

- Dimensions:23x12x25 mm (0.90x0.47x1.02 in)
- Weight:13.0 g (0.46 oz)
- BrandMKS Servo
Description
Article no.: MKS_S0013001
