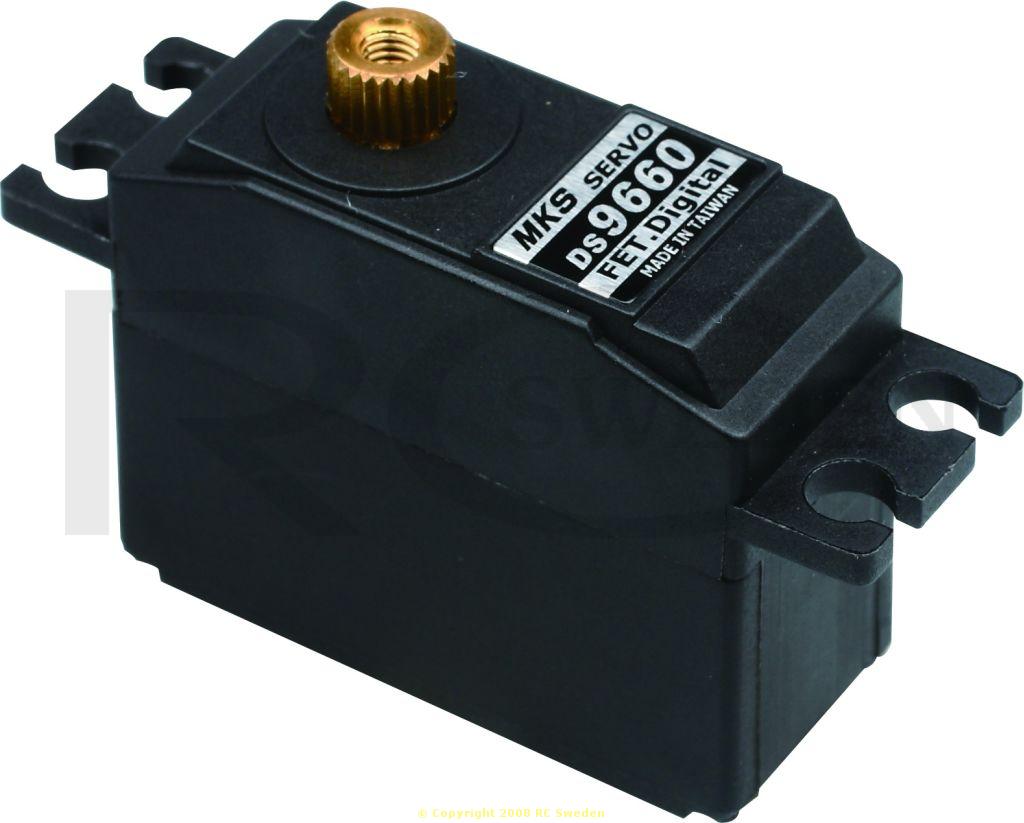

DS9660 Digital Servo
520 SEK per pc
4,8V - 6,0V0,13 - 0,10s/60°
3,7 - 4.6 kg.cm
Vikt 32,3g
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandMKS
- Servo TypeMini
- Dead Band:0.0008ms (Default)
- Control System:+Pulse Width Control
- Working frequence:1520µs / 333hz
- (RX) Required Pulse:3.0 ~6.0 Volt Peak to Peak Square Wave
- Operating Voltage:4.8 ~6.0 V DC Volts
- Operating Temperature Range:-10 to + 60 Degree C

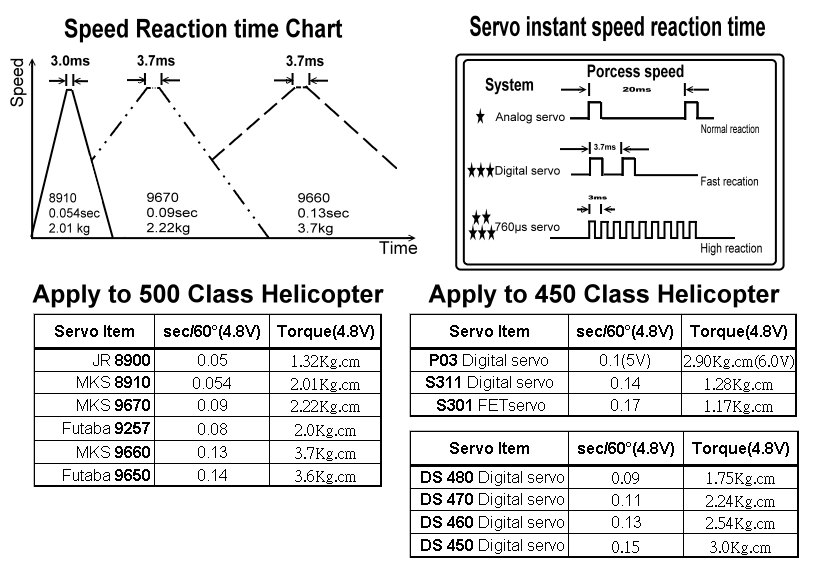

- Operating Speed (4.8V):0.13 sec/60° degrees at no load
- Operating Speed (6.0V):0.10 sec/60° degrees at no load
- Stall Torque (4.8V):3.7 kg.cm (51.4 oz/in)
- Stall Torque (6.0V):4.6 kg.cm (63.9 oz/in)
- 360ﾰ Modifiable:NO
- Motor Type:Coreless Motor
- Potentiometer Drive:Indirect Drive
- Driver Type:FET
- Bearing Type:Dual Ball Bearings
- Gear Type:ALL metal gear
- Programmable:NO
- Connector Wire Length:24.0 cm (9.4 in)

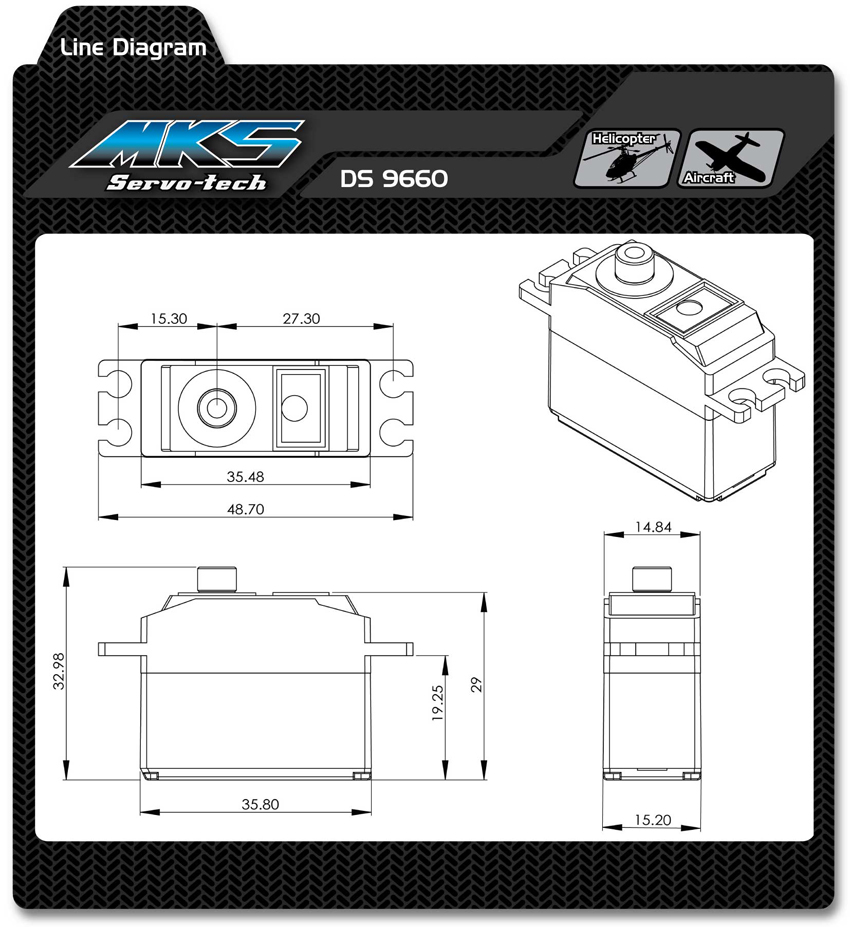

- Dimensions:35.8x15.2x29 mm (1.41x0.6x1.14 in)
- Weight:32.3 g (1.14 oz)
- BrandMKS Servo
Description
Article no.: MKS_S0008001
