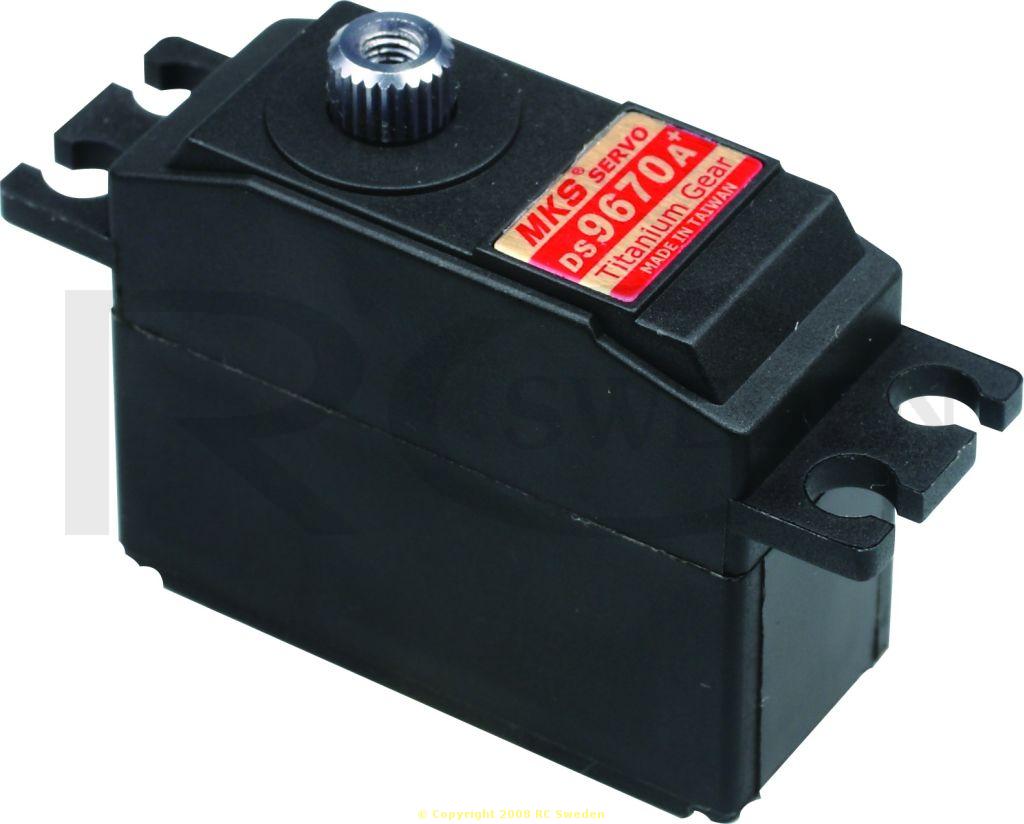

DS9670A+
690 SEK per pc
4,8V - 6,0V0,088 - 0,068s/60°
2,26 - 2.83 kg.cm
Vikt 27,5g
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandMKS
- Servo TypeMini
- Dead Band:0.0008ms (Default)
- Control System:+Pulse Width Control
- Working frequence:1520µs / 333hz
- (RX) Required Pulse:3.0 ~6.0 Volt Peak to Peak Square Wave
- Operating Voltage:4.8 ~6.0 V DC Volts
- Operating Temperature Range:-10 to + 60 Degree C
- Operating Speed (4.8V):0.088 sec/60° degrees at no load
- Operating Speed (6.0V):0.068 sec/60° degrees at no load
- Stall Torque (4.8V):2.26 kg.cm (31.4 oz/in)
- Stall Torque (6.0V):2.83 kg.cm (38.3 oz/in)
- 360ﾰ Modifiable:NO
- Motor Type:Coreless Motor
- Potentiometer Drive:Indirect Drive
- Driver Type:FET
- Bearing Type:Dual Ball Bearings
- Gear Type:1 Titanium Gears + 4 aluminum-alloy Gears
- Programmable:NO
- Connector Wire Length:15.0 cm (5.9 in)

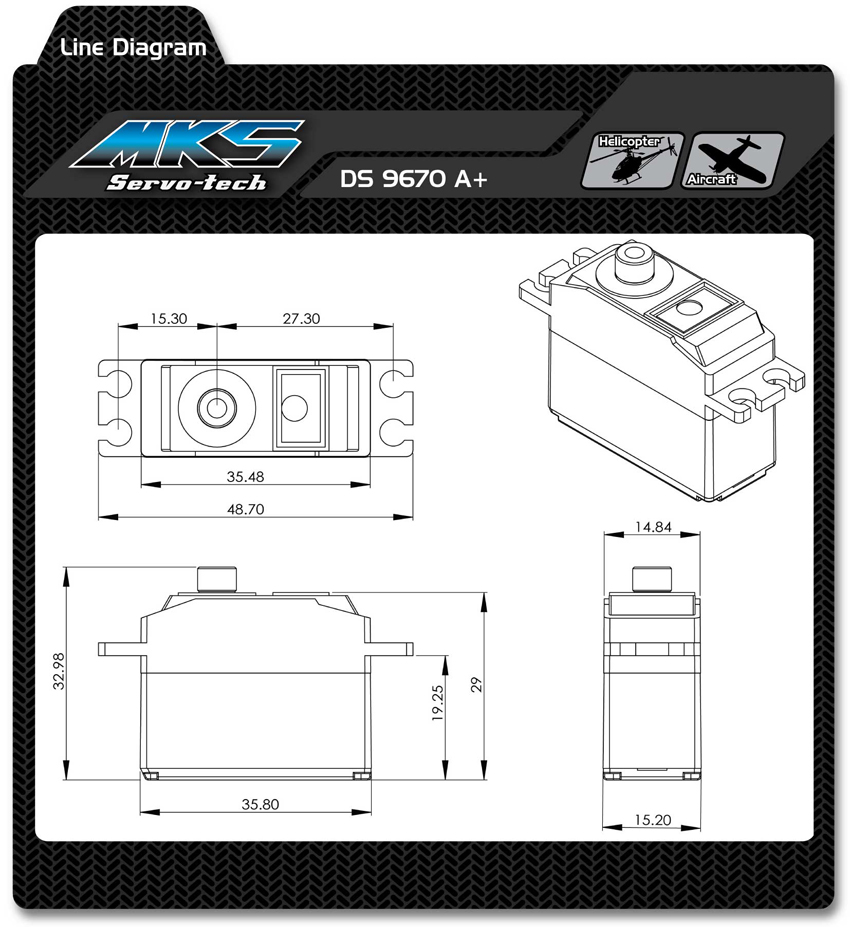

- Dimensions:35.8x15.2x29 mm (1.41x0.6x1.14 in)
- Weight:27.5 g (0.97 oz)
- BrandMKS Servo
Description
Article no.: MKS_S00080A2
Because of market variation, this product will stop production and delivery from November 2015.
If you are looking for a substitute, DS9660A+ is recommended.
If you are looking for a substitute, DS9660A+ is recommended.
