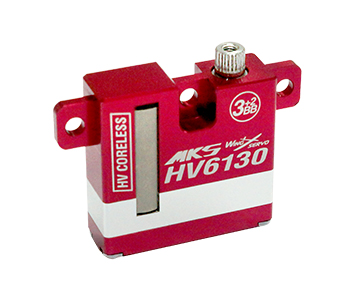

HV6130
810 SEK per pc
3,5V - 8,4V0,14 - 0,10s
6,0 - 8.1 kg.cm
Vikt 22.5 g
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandMKS
- Servo TypeWing High Voltage
- Dead Band:0.001ms (Default)
- Working frequence:1520µs / 333hz
- Operating Voltage:3.5 ~ 8.4 V DC Volts (2S LiPo un-regulated)
- Operating Speed (6.0V):0.14 sec
- Operating Speed (7,4V):0.11 sec
- Operating Speed (8,2V):0.10 sec
- Stall Torque (6.0V):6.0 kg.cm
- Stall Torque (7,4V):7.6 kg.cm
- Stall Torque (8,2V):8.1 kg.cm
- Motor Type:Corless Motor
- Bearing Type:2* Ball Bearing + 1*Oil-retaining Bearing + 2*Jewel Bearing
- Gear Type:Metal Alloy Gear

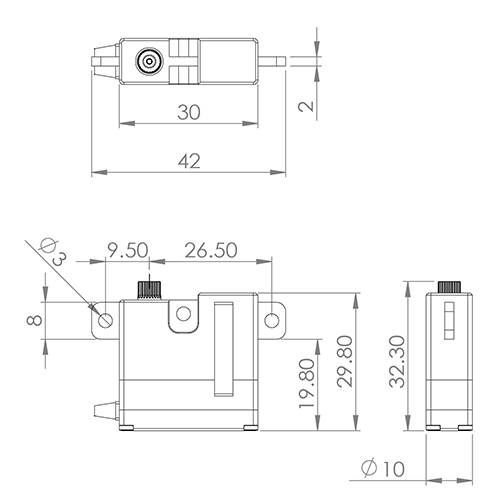

- Dimensions:30x10x29.8 mm
- Weight:25.5 g
- BrandMKS Servo
Description
Article no.: MKS_S0022009
1. För alla servo, vrid inte utgående axel för hand varken när strömmen är på eller av. Detta kan skada elektroniken i servot.
2. Använd endast servo enligt föreskriven spänning.
When the servo motor life is ended,
Built-In Safe System avoids the servo short circuit and let plane land safely.
2. Använd endast servo enligt föreskriven spänning.
When the servo motor life is ended,
Built-In Safe System avoids the servo short circuit and let plane land safely.
