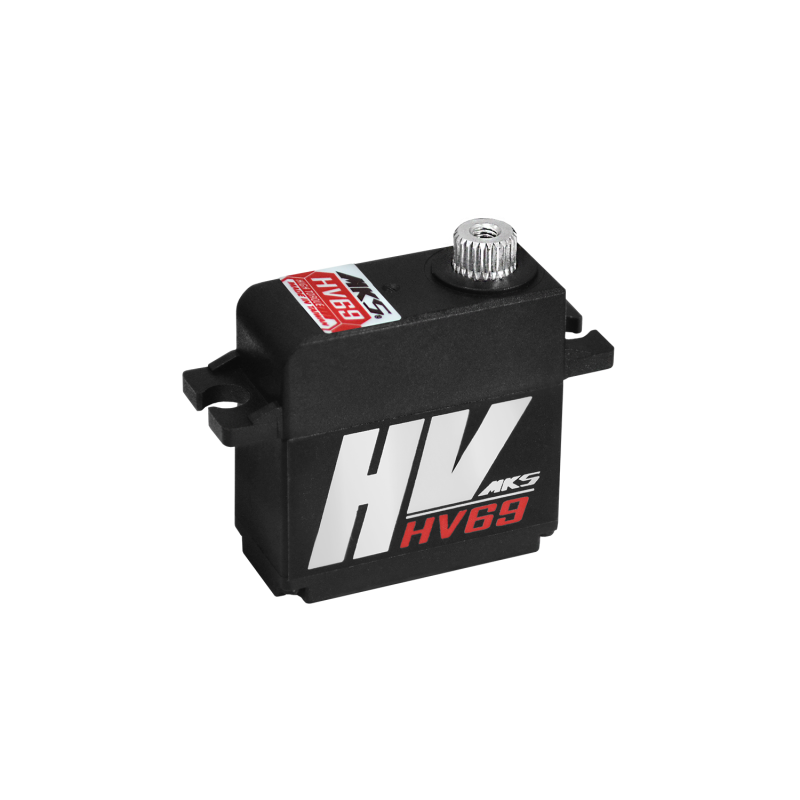

HV69
695 SEK per pc
4,8V - 8,2V0,17 - 0,10s
6,0 - 10.2 kg.cm
Weight 21g
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandMKS
- Servo TypeMicro High Voltage
- Dead Band:0.001ms (Default)
- Working frequence:1520µs / 333hz
- Operating Voltage:6.0 ~8.4 V DC Volts (2S Lipo un-reulated)
- Operating Speed (4.8V):0.17 sec
- Operating Speed (6.0V):0.13 sec
- Operating Speed (7,4V):0.11 sec
- Operating Speed (8,2V):0.10 sec
- Stall Torque (4.8V):6.0 kg.cm
- Stall Torque (6.0V):7.5 kg.cm
- Stall Torque (7,4V):9.2 kg.cm
- Stall Torque (8,2V):10.2 kg.cm
- Motor Type:Coreless Motor
- Bearing Type:2* Ball Bearing
- Gear Type:Metal Alloy Gear

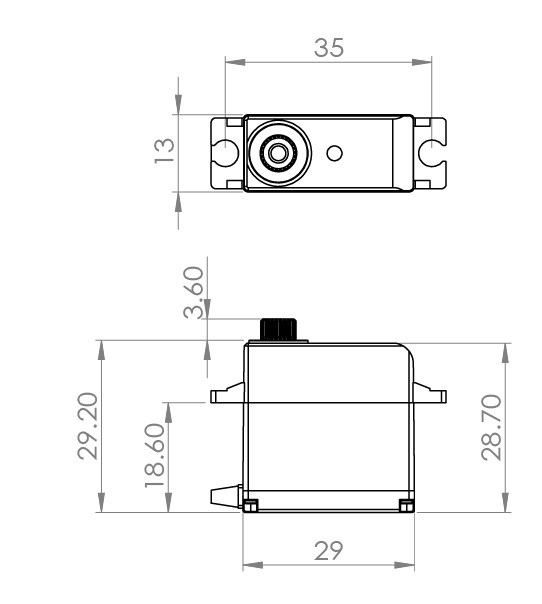

- Dimensions:29 x 13 x 28.7 mm
- Weight:21 g
- BrandMKS Servo
Description
Article no.: MKS_S0022012
