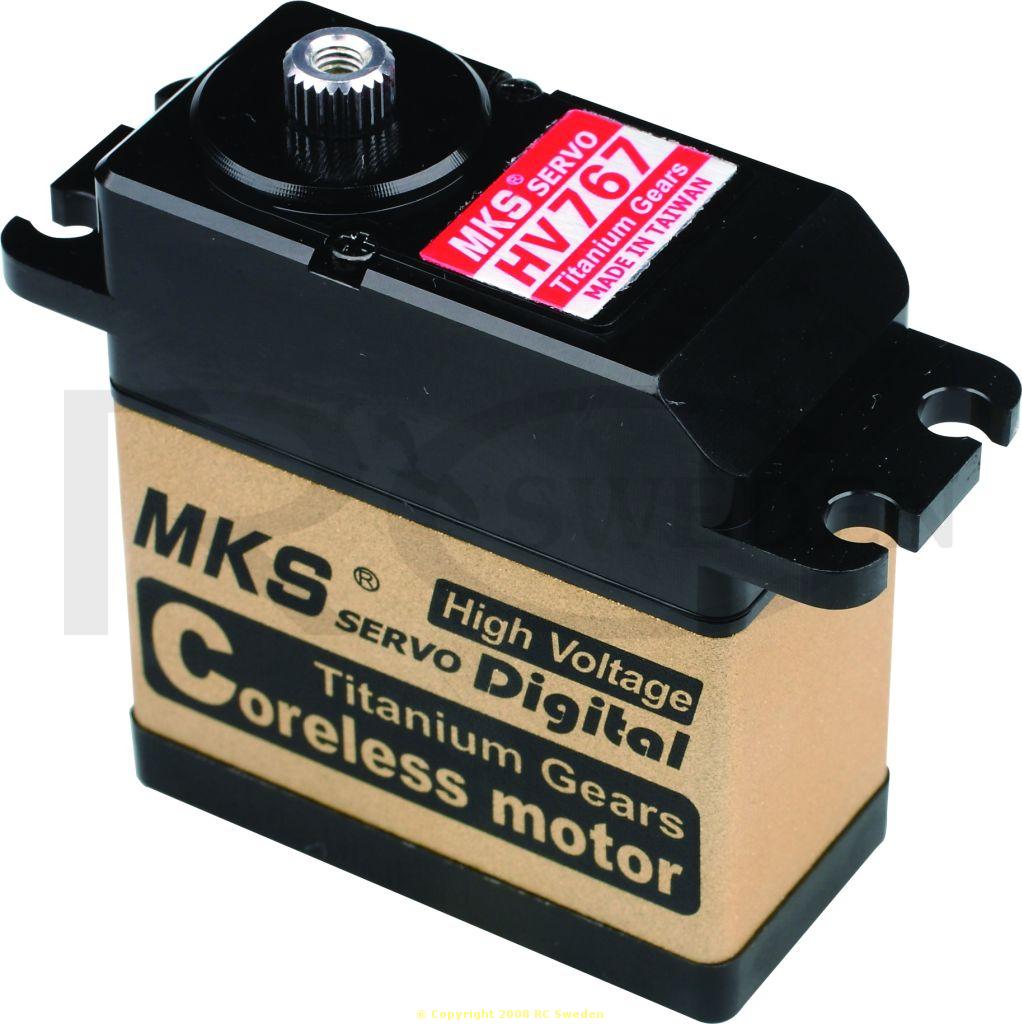

HV767 (Aluminum upper case)
740 SEK per pc
6,0V - 7,4V0,145 - 0,118s/60°
25,0 - 31.0 kg.cm
Vikt 77,9g
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandMKS
- Servo TypeHigh Voltage
- Dead Band:0.0008ms (Default)
- Control System:+Pulse Width Control
- Working frequence:1520µs / 333hz
- (RX) Required Pulse:3.5 ~7.4 Volt Peak to Peak Square Wave
- Operating Voltage:6.0 ~7.4 V DC Volts (2S LiPo)
- Operating Temperature Range:-10 to + 60 Degree C
- Operating Speed (6.0V):0.145 sec/60° degrees at no load
- Operating Speed (7,4V):0.118 sec/60° degrees at no load
- Stall Torque (6.0V):25.00 kg.cm (347.2 oz/in)
- Stall Torque (7,4V):31.00 kg.cm (430.5 oz/in)
- 360ﾰ Modifiable:NO
- Motor Type:Coreless Motor
- Potentiometer Drive:Indirect Drive
- Driver Type:FET
- Bearing Type:Dual Ball Bearings
- Gear Type:Titanium Gears
- Programmable:NO
- Connector Wire Length:15.0 cm (5.9 in)

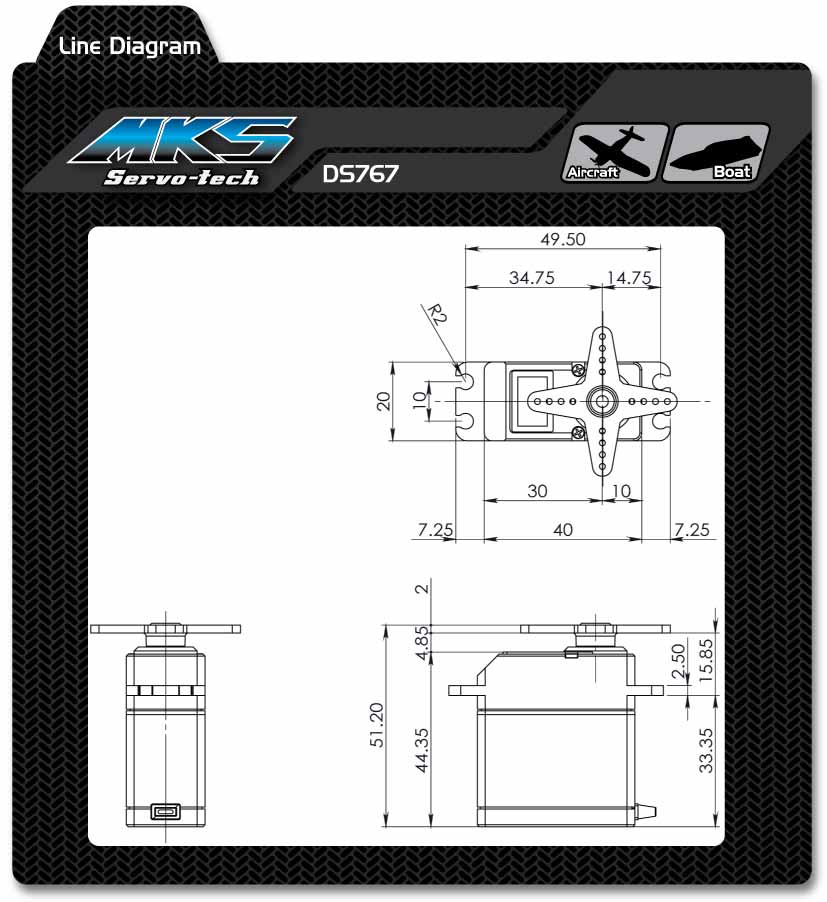

- Dimensions:40x20x45 mm (1.57x0.79x1.77 in)
- Weight:77.9 g (2.75 oz)
- BrandMKS Servo
Description
Article no.: MKS_S0011003
Gjord för 2S LiPo
