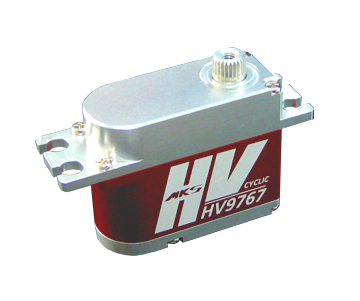

HV9767
975 SEK per pc
High Voltage Brushless5,5V - 8,4V
0,090 - 0,078s/60°
6,8 - 8,5 kg.cm
Weight 38,55g
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandMKS
- Servo TypeMini High Voltage
- Dead Band:0.001ms (Default)
- Working frequence:1520µs / 333hz
- Operating Voltage:5.5 ~ 8.4 V DC Volts (2S LiPo)
- Operating Speed (6.0V):0.090 sec/60° degrees at no load
- Operating Speed (7,4V):0.078 sec/60° degrees at no load
- Operating Speed (8,2V):0.070 sec/60° degrees at no load
- Stall Torque (6.0V):6.8 kg.cm
- Stall Torque (7,4V):8.5 kg.cm
- Stall Torque (8,2V):9.4 kg.cm
- Electricalectric current draw (6.0V):2,0A max
- Electricalectric current draw (7.4V):2,4A max
- Electricalectric current draw (8.2V):2,6A max
- Bearing Type:Dual Ball Bearings
- Gear Type:Chrome-Titanium Alloy Gears
- Connector Wire Length:29.5 cm

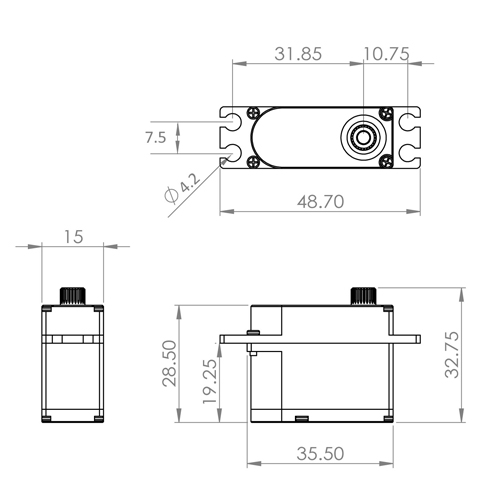

- Dimensions:35,5x15x28,5 mm
- Weight:38,55 g
- BrandMKS Servo
Description
Article no.: MKS_S0008004
Made for 2S LiPo
1. For all servos, do not turn the output shaft by hand either when the power is on or off. This can damage the electronics of the servo.
2. Use only servo according to the prescribed voltage.
