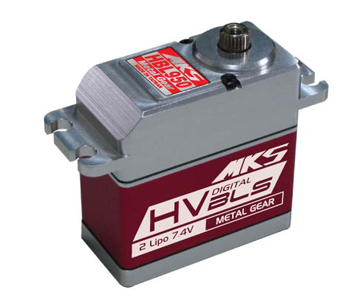

MKS HBL950
1,295 SEK per pc
High Voltage Brushless6,0V - 7,4V
0,12 - 0,10s/60°
13,3 - 16,5 kg.cm
Weight 70,29g
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandMKS
- Servo TypeHigh Voltage Brushless
- Dead Band:0.0008ms (Default)
- Control System:+Pulse Width Control
- Working frequence:1520µs / 333hz
- (RX) Required Pulse:3.5 ~ 7.4 Volt Peak to Peak Square Wave
- Operating Voltage:6.0 ~ 7.4 V DC Volts (2S LiPo)
- Operating Temperature Range:-10 to + 60 Degree C
- Operating Speed (6.0V):0.12 sec/60° degrees at no load
- Operating Speed (7,4V):0.10 sec/60° degrees at no load
- Stall Torque (6.0V):13.3 kg.cm
- Stall Torque (7,4V):16.5 kg.cm
- 360ﾰ Modifiable:NO
- Motor Type:Brushless Motor
- Potentiometer Drive:Indirect Drive
- Bearing Type:Dual Ball Bearings
- Gear Type:Chrome-Titanium Alloy Gears
- Programmable:NO
- Connector Wire Length:24.0 cm (9.4 in)

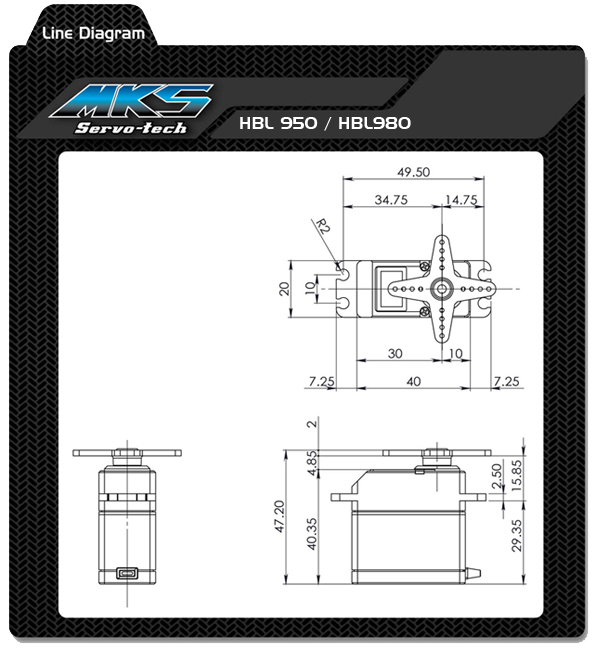

- Dimensions:40x20x40 mm (1.57x0.79x1.50 in)
- Weight:70,29 g
- BrandMKS Servo
Description
Article no.: MKS_S0010005
Made for 2S LiPo
