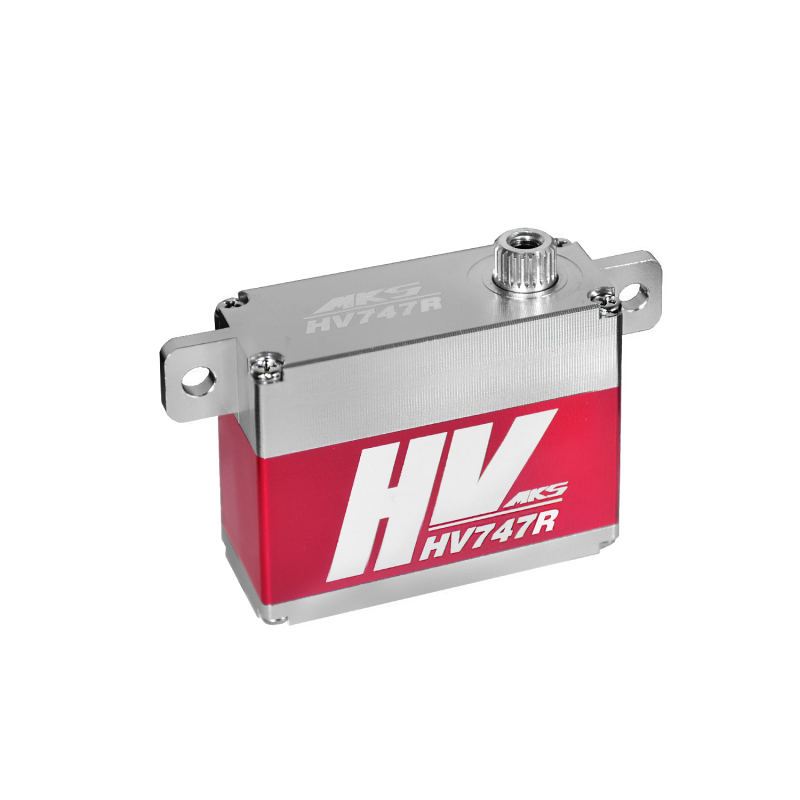

MKS HV747R
1,095 SEK per pc
High Voltage6,0V - 8,2V
0,17 - 0,13s/60°
11,8 - 15,0 kg.cm
Weight 40,07g
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandMKS
- Servo TypeMini Wing High Voltage
- Dead Band:0.001 ms (Default)
- Working frequence:1520µs / 333hz
- Operating Voltage:6.0 ~ 8.4 V DC Volts
- Operating Speed (6.0V):0.17 sec/60° degrees at no load
- Operating Speed (7,4V):0.14 sec/60° degrees at no load
- Operating Speed (8,2V):0.13 sec/60° degrees at no load
- Stall Torque (6.0V):11.8 kg.cm
- Stall Torque (7,4V):13.8 kg.cm
- Stall Torque (8,2V):15.0 kg.cm
- Stall Current at locked load (6,0V):2,3A
- Stall Current at locked load (7,4V):2,8A
- Stall Current at locked load (8,2V):3,1A
- 360ﾰ Modifiable:NO
- Motor Type:Coreless Motor
- Bearing Type:Dual Ball Bearings
- Gear Type:Metal Alloy Gear
- Programmable:NO
- Connector Wire Length:29.5 cm

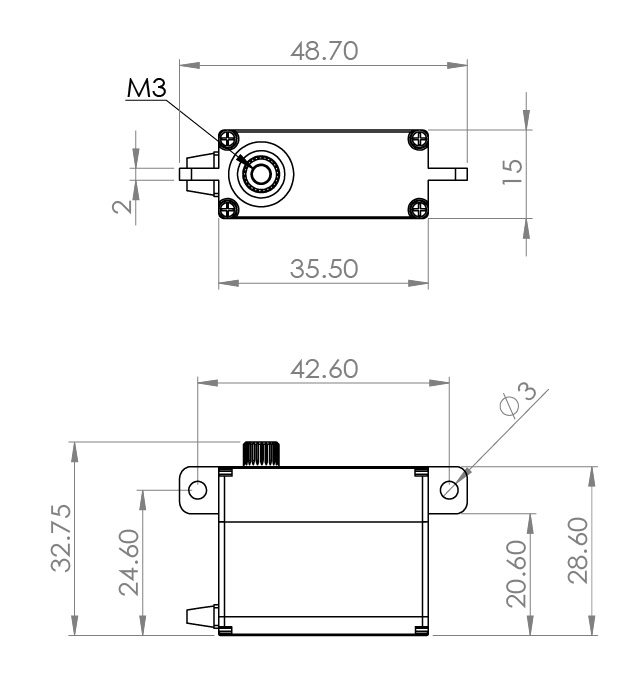

- Dimensions:35,5x15x28,6 mm
- Weight:40,07 g
- BrandMKS Servo
Description
Article no.: MKS_S0022011
