Savöx SAV-SW2290SG SW-2290SG Servo 70Kg 0,11s HV Alu Brushless Steel Gear WP
1,795 SEK per pc
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandSavöx
- Servo TypeHigh Voltage Brushless
- Operating Speed (6.0V):0,16 sek/60°
- Operating Speed (7,4V):0.13s/60°
- Operating Speed (8.4V):0.11s/60°
- Stall Torque (6.0V):45 kg/cm
- Stall Torque (7,4V):55 kg/cm
- Stall Torque (8.4V):70 kg/cm
- Motor Type:Brushless
- Bearing Type:2BB
- Case:Alu
- Connector Wire Length:300 +/- 5mm
- Dimensions:L x W x H: 41 x 21 x 39.9mm
- Weight:81g
- BrandSavöx
Description
Article no.: MC_SAV-SW2290SG

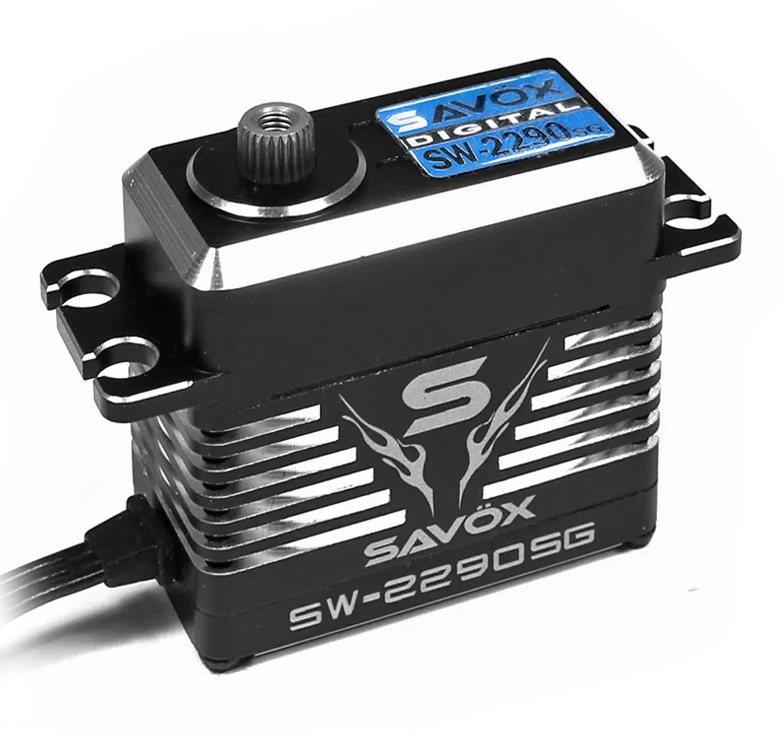

SAVÖX SAV-SW2290SG - Waterproof Monster Torque High Voltage, Brushless, Digital Servo 0.11s / 70kg/cm @ 8.4v
The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.Features:
- Waterproof (IP67)
- Full Aluminum Case
- 3 Precision Ball Bearings
- Unique steel gears
Specifications:
- Torque @ 6v: 45kg
- Torque @ 7.4v: 55kg
- Torque @ 8.4v: 70kg
- Speed @ 6v: 0.16s/60°
- Speed @ 7.4v - 0.13s/60°
- Speed @ 8.4v - 0.11s/60°

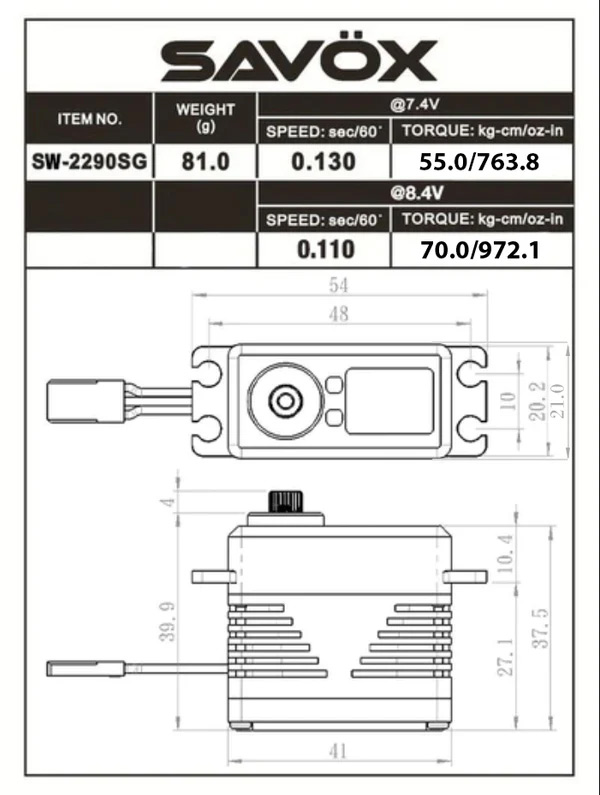

- Dimensions L x W x H: 41 x 21 x 39.9mm
- Weight: 81g
Technical:
- Operating Temperature: -10° - 50°C
- Running Current (no load): 180mA @6.0V, 220mA @7.4V, 220mA @8.4V
- Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V, 10500mA @8.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
