Savöx SB-SB2263MGBE Servo 10Kg 0,076s Brushless Black Edition Low
995 SEK per pc
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandSavöx
- Servo TypeBrushless Low Profile
- Operating Voltage:4.8-6.6V
- Operating Speed (4.8V):0.10 sec/60 deg
- Operating Speed (6.0V):0.076 sec/60 deg
- Stall Torque (4.8V):8kg/cm
- Stall Torque (6.0V):10kg/cm
- Bearing Type:2BB
- Dimensions:L x W x H: 40.8 x 20.2 x 25.4mm
- Weight:48g
- BrandSavöx
Description
Article no.: MC_SAV-SB2263MGBE

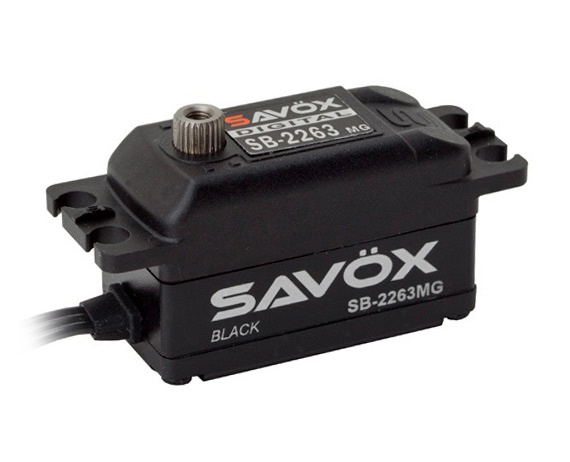

SAVÖX SB-2263MGBE - Brushless Metal-Geared High Speed Low-Profile Servo
The SB-2263MGBE is a high speed, brushless, low profile servo suitable for RC cars and boats where you want/need a fast and low servo that is not High Voltage. The "BE" version has a cool and sleek all black look.
Features:

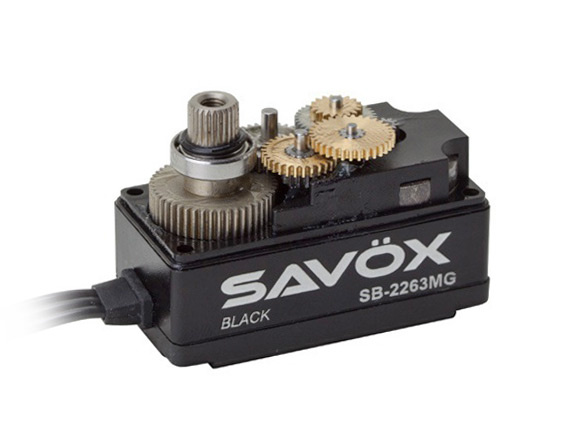

- Metal gear train ensures durability under harsh situations
- Cool black design
- Ideal for 1/10 on road cars requiring a high speed servo
Specifications:
- Voltage range: 4.8-6.6V
- Torque @ 4.8V: 8kg/cm
- Torque @ 6V: 10kg/cm
- Speed @ 4.8V: 0.10 sec/60 deg
- Speed @ 6V: 0.076 sec/60 deg

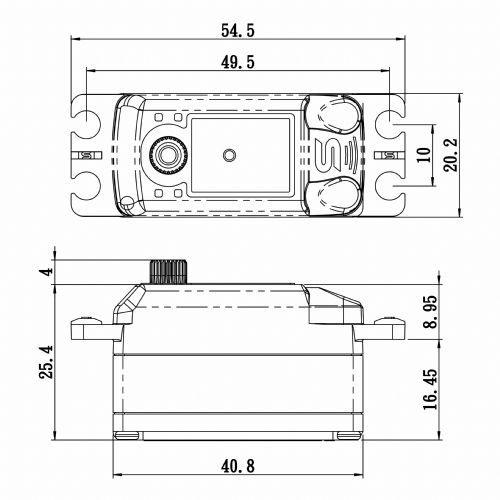

- Dimensions L x W x H: 40.8 x 20.2 x 25.4mm
- Weight: 48g
Technical Details:
- Operating Temperature: -10° - 50°C
- Running Current (no load): 180mA @4.8V, 220mA @6.0V
- Stall Current (at locked): 2900mA @4.8 V, 3700mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 50 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 90° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
