Savöx SV0258MG Servo 8Kg 0,11s HV Metal Drive Low Profile

SAVÖX SAV-SV0258MG - SV-0258MG Low Profile Servo 8Kg 0.11s HV Hybrid Gears

Protection and Precision for Entry-Level RC
The SV-0258MG is engineered to work seamlessly with entry-level ESCs in RTR kits, limiting current draw to just 1.5A to prevent shutdowns and ensure uninterrupted driving. Its low-profile composite case saves space, while hybrid gears and digital electronics provide consistent, precise steering control.

It's ideal for RTR and 1/10 touring cars where both protection and performance matter.

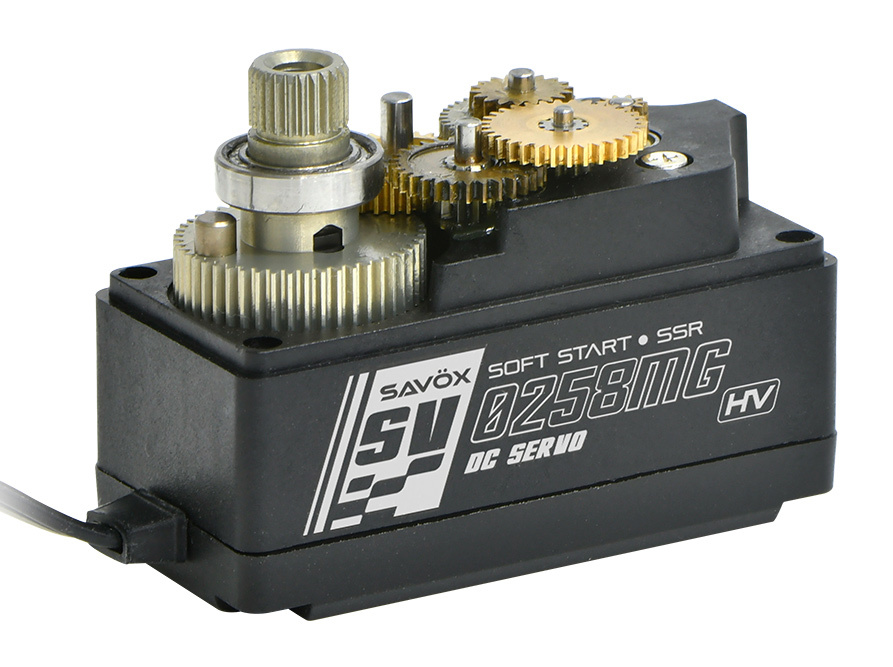

Hybrid Metal/Composite Gears
Provides a balance of durability and weight savings for everyday and beginner use.

Low-Profile Compact Size

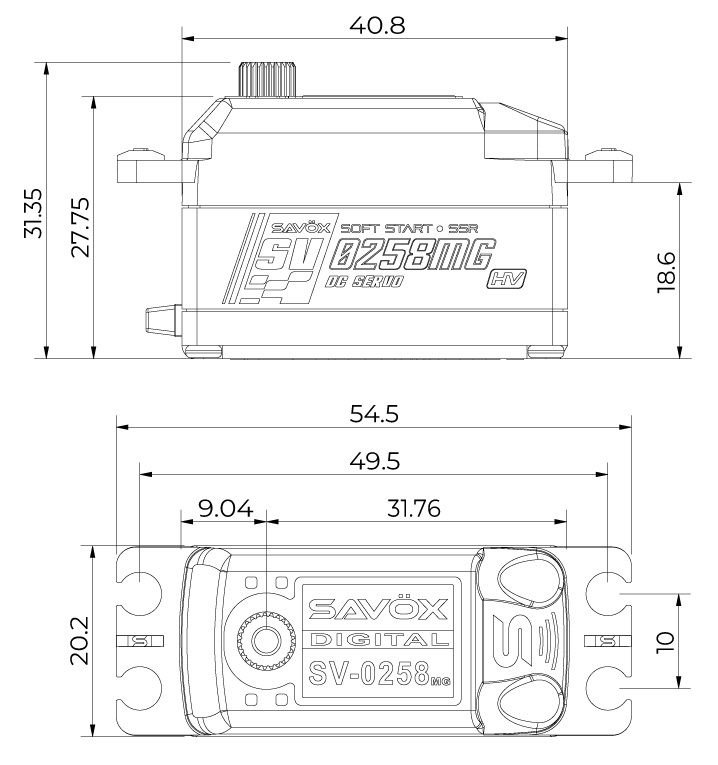

Measures only 40.8×20.2×27.75mm, making it a perfect fit for 1/10 touring cars and other compact builds.

Digital Precision Control
Equipped with a 10-bit digital PCB and VR potentiometer for smooth, accurate steering response.

Specs:

• Line: BLACK EDITION
• Application: CAR
• Servo Size: Low Profile
• Operating Voltage: 6V-7.4V
• Speed @6.0V: 0.13s/60°
• Torque @6.0V: 6.5kg/cm
• Speed @7.4V: 0.11s/60°
• Torque @7.4V: 8.0kg/cm
• Amplifier Type: Digital Controller
• Motor Type: DC
• Case Type: Composite
• Protection: Dust Resistant
• Dimensions: L40.8xW20.2xH27.7 mm
• Weight: 36g
• Gear Type: Hybrid (Metal/Composite)
• Compatibility: Sanwa SSR
• PCB Board: 10-bit
• Horn Gear Spline: 25T (Φ6)
• Rotating Direction: Clockwise (when 1000→2000μsec)
• Max Travel: ~140° (when 800→2200μsec)
• Operating Travel: 90° (when 1000→2000μsec)
• Neutral Position: 1500μsec
• Bearing: 2x Ball Bearings
• Potentiometer: VR
• Cable Diameter: 26AWG
• Cable Length: 250±5mm
• Connector: JR
• Stall Current @6.0V: 1500mA
• Operating Current @6.0V: 150mA
• Stall Current @7.4V: 1800mA
• Operating Current @7.4V: 180mA
• Idle Current: 6mA
• Dead Band Width: 3-5μsec
• Frequency Range: 50-360Hz
• Control System: Pulse Width Modification
• Operating Temperature: -10°C to 50°C
