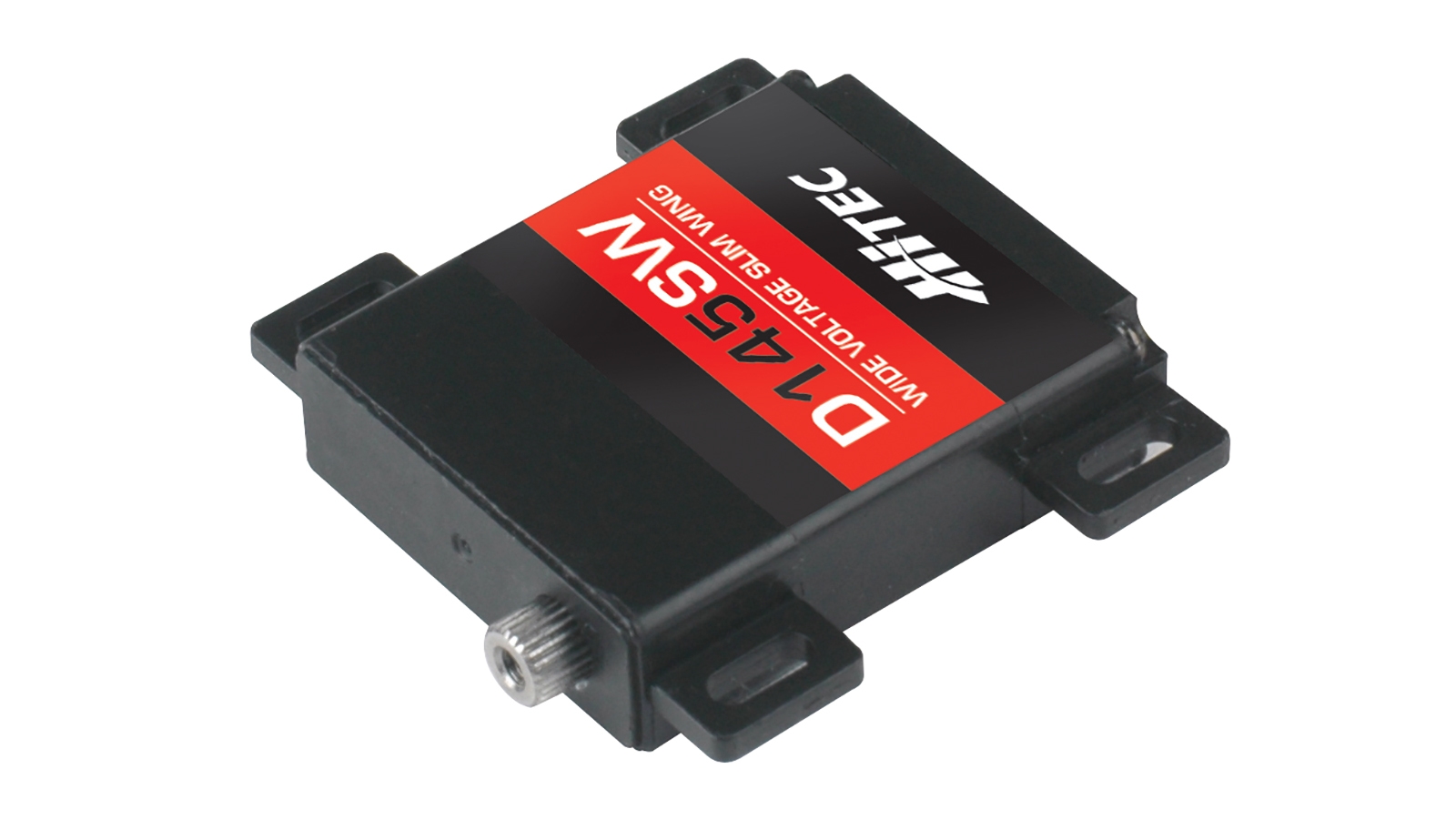

Servo D145SW
768 SEK per pc
4,8-7,4 V | max. 58,8 N/cm | max. 0,14 Sek/60° | IP4X
Contents:
• 1x HiTEC Servo D145SW
• Servo arm (MS-ML25)
• Mounting hardware
Contents:
• 1x HiTEC Servo D145SW
• Servo arm (MS-ML25)
• Mounting hardware
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandHitec
- Servo TypeMini Wing
- Motor Type:Cored Carbon Brush
- Dimensions:30x37x10mm
- BrandHitec
Description
Article no.: MPX-1-00064
Description

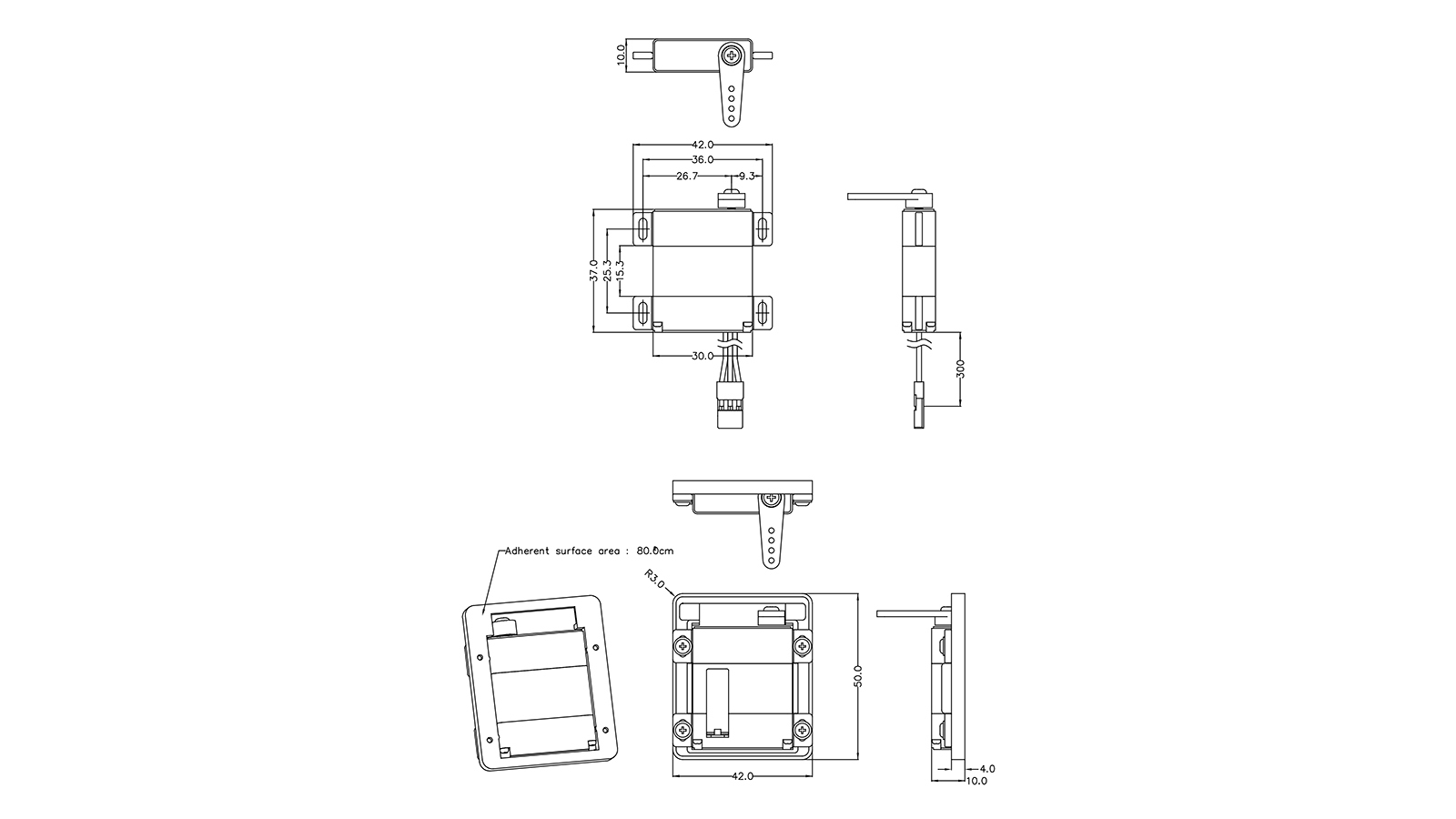

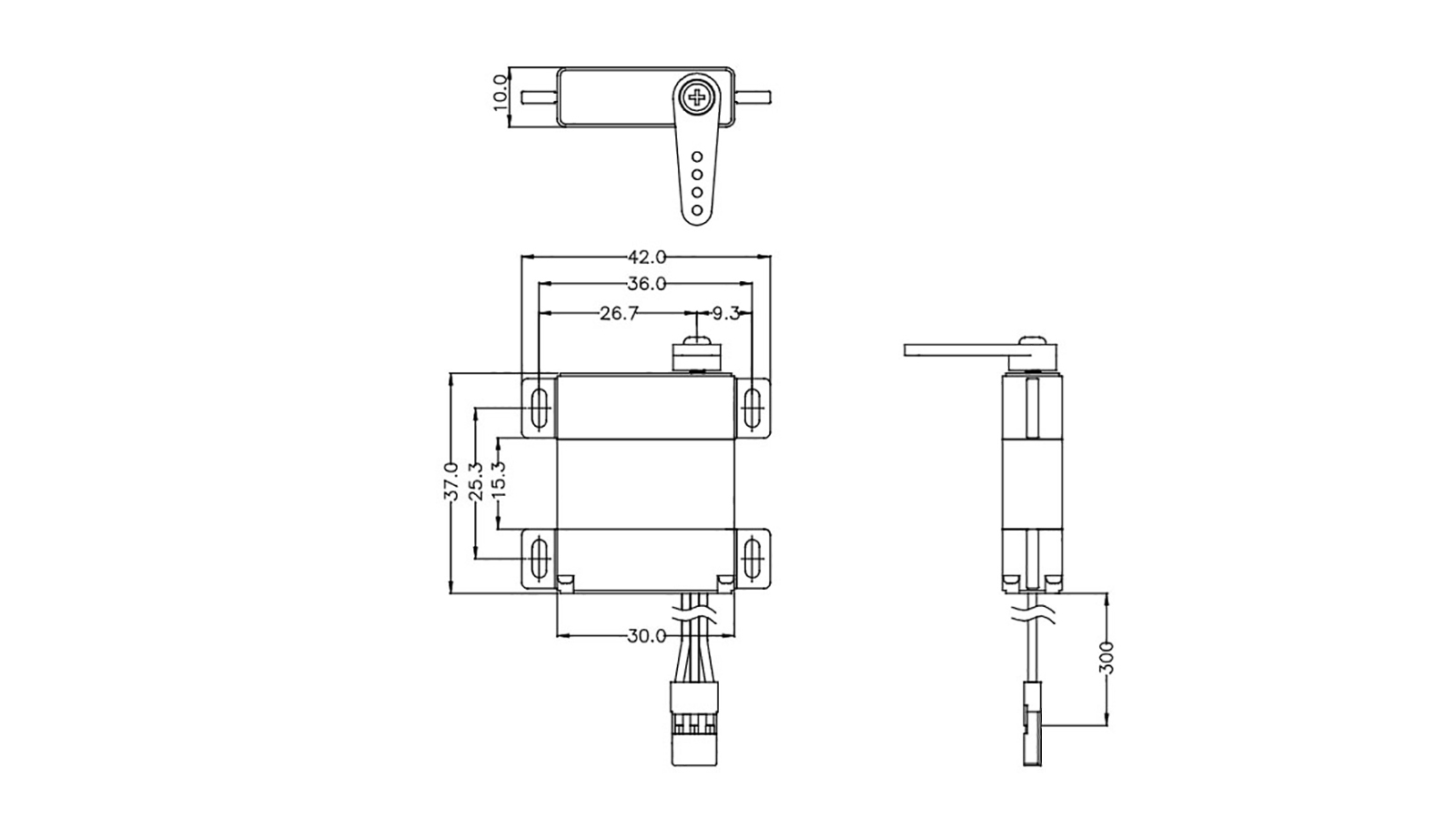

This digital servo motor from HiTEC excels wherever a slim footprint and clean positioning performance are required. The D145SW employs a precise iron-core brushed motor, delivering direct, finely tuned response. Its wide 4.8–7.4 V operating range supports flexible power and system concepts. With up to 68 N·cm of torque and transit times of 0.21–0.14 s/60°, it provides substantial headroom for fast, repeatable motion - ideal for actuator duties under varying loads. The ultra-flat housing, just 10.0 mm wide, and the compact dimensions of 30.0 × 10.0 × 37.0 mm (L×W×H, 1.18 × 0.39 × 1.46 in) simplify integration in dense assemblies and make mechanical planning predictable. In short: digital control quality, a slim design, and robust performance figures - a servo for precise, professional applications.For further technical advice, please contact our Technical Support team?.
Video
Technical Data
| Width (mm) | 10,00 |
| Motor Type | Cored Carbon Brush |
| Encoder | Potentiometer |
| IP Protection Class | IP4X |
| Communication | PWM / TTL |
| Servo Type | Digital |
| Voltage max. (V) | 7,40 |
| Torque max. (kg/cm) | 7,00 |
| Setting Speed max. (sec/60 degrees) | 0,14 |
| Hitec Servo Series | D-Series |
| Weight (gramm) | 24,00 |
| Horn Gear Spline | M25T (Ø5,0mm) |
| Length (mm) | 30,00 |
| Height (mm) | 37,00 |
| Voltage min. (V) | 4,80 |
| Torque min. (kg/cm) | 4,90 |
| Setting Speed min. (sec/60 degrees) | 0,21 |
| Angle Standard (degrees) | ± 60° |
| Rotation Angle programmable (degrees) | 175° |
| Multi Turn | not possible |
| Contniuos Rotation | No |
| Current Draw at idle (mA) | 30 |
| Current Draw max. (mA) | 2500 |
| Torque min. (N/cm) | 38,20 |
| Torque max. (N/cm) | 58,80 |
| Housing | Engineering Plastic |
| Connector | Hitec 3 Pin (Uni) |
| Gearing (characteristic) | Steel |
