SH-0255MG Plus Servo 3.9Kg 0.13s Aluminum Metal Drive Micro
384 SEK per pc
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandSavöx
- Servo TypeMicro
- Operating Voltage:6,0 V
- Operating Speed (4.8V):0,16 sek/60°
- Operating Speed (6.0V):0,13 sek/60°
- Stall Torque (4.8V):3,1 kg/cm
- Stall Torque (6.0V):3,9 kg/cm
- Motor Type:Brushed
- Bearing Type:Double Ball Bearings
- Gear Type:Metal
- Case:Metal
- Dimensions:22,8 x 12,0 x 29,4 mm (L x W x H)
- Weight:15,8 g
- BrandSavöx
Description
Article no.: MC_SAV-SH0255MGPLUS

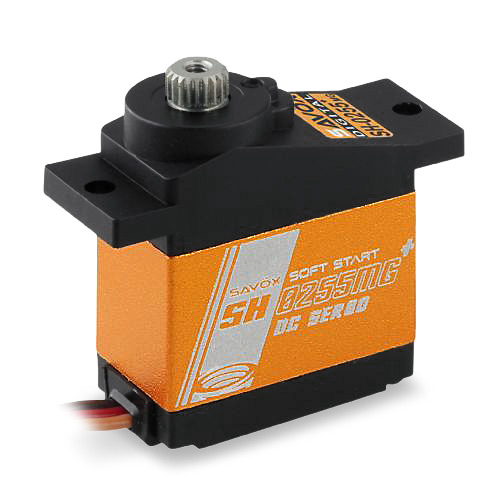

SAVÖX SH-0255MG PLUS - Metal-Geared Digital Micro Servo - V2
The Savox SH-0255MG+ micro, metal-gear, digital servo has plenty of torque to match much larger standard size servos and outperform other competitive micro-size servos.Features:
- Metal gear train ensures durability and longevity
- Aluminum middle case allows for cooler operating temperatures
- Ideal for small planes and 450 size helicopters
- Soft Start
Specifications:
- Torque @4.8V: 3.1kg/cm
- Torque @6V: 3.9kg/cm
- Speed @4.8V: 0.16 sec/60 deg
- Speed @6V: 0.13 sec/60 deg

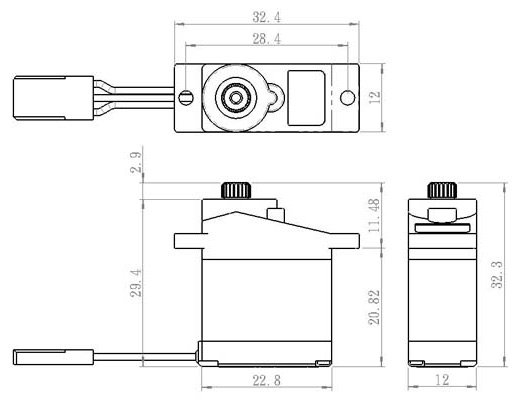

- Dimensions L x W x H: 22.8 x 12.0 x 29.4mm
- Weight: 15.8g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 180mA @4.8V, 240mA @6.0V
- Stall Current (at locked): 1200mA @4.8V, 1400mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 250 ± 5mm
- Output Gear Spline: 21 Tooth
- Bearings: 1BB
- Operating Travel: 90° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 750 → 2250 µ second
- Maximum Travel: Appx 145° (750 → 2250 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
