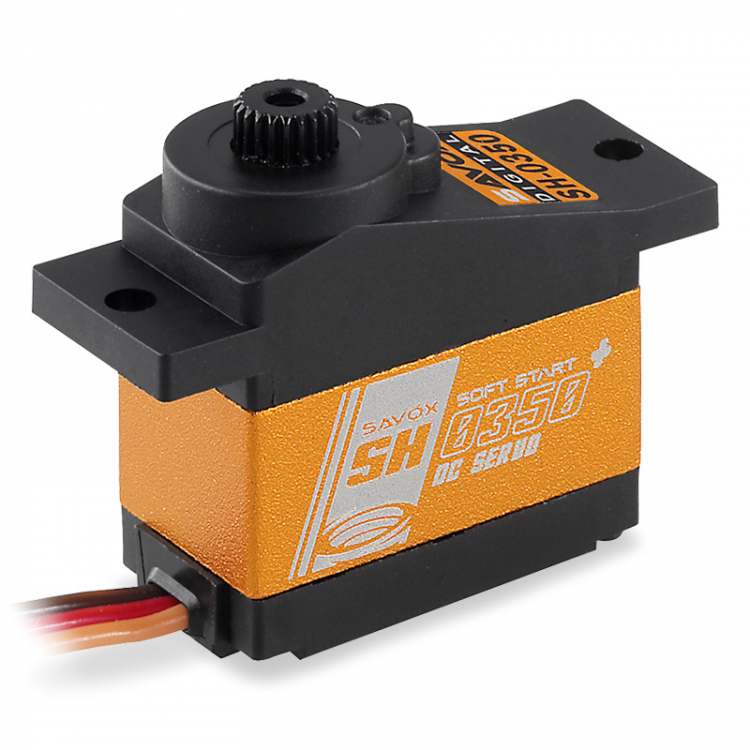

SH-0350MG Plus Servo 2.6Kg 0.16s Alu Micro
243 SEK per pc
Powerful and fast - SH-0350MG Plus Servo!
Welcome to our own online store where we present the impressive SH-0350MG Plus Servo. This servo is designed to impress and deliver outstanding performance.
With an impressive speed of 0.16 seconds and a jump of 2.6 kg, this servo is an excellent choice for anyone who requires fast and precise motion control. Moreover, it is made of aluminum to ensure durability and stability.
SH-0350
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandSavöx
- Servo TypeMicro
- Operating Voltage:6,0 V
- Operating Speed (4.8V):0,21 sek/60°
- Operating Speed (6.0V):0,16 sek/60°
- Stall Torque (4.8V):2,2 kg/cm
- Stall Torque (6.0V):2,6 kg/cm
- Bearing Type:Double Ball Bearings
- Case:Alu

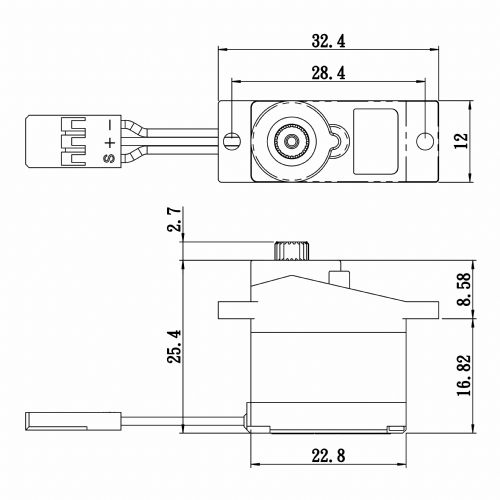

- Dimensions:22,8 x 12,0 x 25,4 mm (L x W x H)
- Weight:12,3 g
- BrandSavöx
Description
Article no.: MC_SAV-SH0350PLUS
SAVÖX SH-0350MG+ - Micro Servo v2
The SH-0350MG+ is a budget-friendly, plastic-geared, micro-sized servo with an aluminum case for additional support.Features:
- Aluminum middle case allows for cooler operating temperatures
- Ideal for small planes and 450 size helicopters
- Soft Start
Specifications:
- Torque @4.8V: 2.2kg/cm
- Torque @6V: 2.6kg/cm
- Speed @4.8V: 0.21 sec/60 deg
- Speed @6V: 0.16 sec/60 deg
- Dimensions L x W x H: 22.8 x 12.0 x 25.4mm
- Weight: 12.3g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 150mA @4.8V, 180mA @6.0V
- Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 250 ± 5mm
- Output Gear Spline: 21 Tooth
- Bearings: 2BB
- Operating Travel: 90° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 700 → 2300 µ second
- Maximum Travel: Appx 150° (700 → 2300 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
