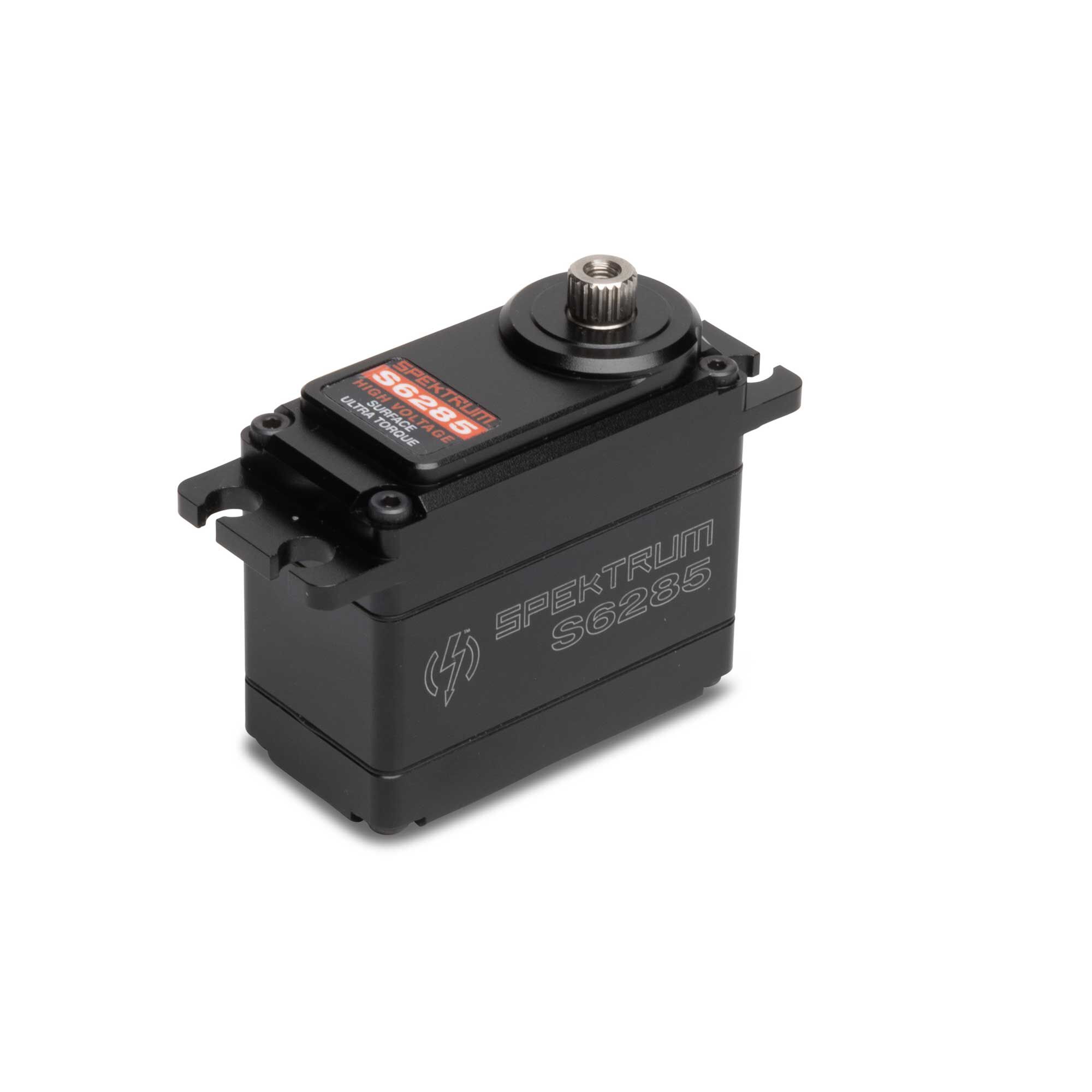

Spektrum S6285 1/8 High Voltage High Torque Metal Gear Race Servo

S6285 1/8 High Voltage High Torque Metal Gear Race Servo Overview

Spektrum™ high-voltage servos deliver premium power, precision, and performance. The S6285 is compatible with 8.4V input and boasts a durable, all-aluminum case that helps dissipate heat. Its metal gear train has been engineered for tight mesh, low wear, and smooth operation. Producing 496oz-in of torque at 8.4v, the S6285 is servo of choice for 1/8 off road applications. Equally capable of high-performance operation in crawling and bashing applications that demand maximum torque and holding power. The convenience of a removeable servo lead lets you select different lengths for different vehicle applications. The convenience of a removeable servo lead lets you select different lengths for different vehicle applications.

S6285 1/8 High Voltage High Torque Metal Gear Race Servo Features

• Stylish all black anodized metal case
• Powerful Coreless motor
• High Voltage HV Capable (6.0v-8.4v)
• 23T output Spline
• Hardened steel gears
• Precision engineered gear train for tight and low wear mesh
• Impressive transit speed (0.10sec at 8.4v)
• Class-leading torque (35.7kg-cm / 496oz-in at 8.4v)
• Excellent steering servo option for 1/8th Scale Racers, RC Crawlers and Scalers

S6285 1/8 High Voltage High Torque Metal Gear Race Servo Product Specs
