SkyRC B6 Lite laddare 13A, LiPo/LiFe/LiHV, NiMH 12VDC
644 SEK/styck
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- FabrikatSkyRC
- Drivspänning:12 VDC
- Laddar (Batterityp):Li-Po Li-Fe Li-Ion NiMH
- Antal Ladduttag:1st
- Laddar (Li-Fe):1-6S
- Laddar (Li-Ion):1-6S
- Laddar (Li-Po):1-6S
- Laddar (NiMH):1-15S
- Laddström:0.1-13A
- Urladdningsström:0.1-3A
- Uteffekt:220W
- Mått:85x76x37 mm
- Vikt:130 g
- VarumärkeSkyRC
Beskrivning
Art.nr: SK100151-01
SkyRC Smart B6 Lite Charger
B6 Lite, a tiny but mighty charger, especially designed for hobbist. With B6 Lite, charging becomes faster and more pleasant. This product is suitable for charging and discharging of LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries. It has protection functions such as input high and low voltage protection and reverse input and output reverse polarity protection.
Capacitive Touch Button
B6 Lite adpots touch button, advantages of which are sturdy and durable, quick-responsive and easy operative.Charging is no more rigid.
Powerful, Tiny, Smart, that is it!
B6 Lite is highly optimized in firmware and structure, while monster power is delivered from such a tiny body. Black screen and touch button contribute to better overall experience on visualization and portability.
Specs:
Battery Capacity Range:
Charge Voltage:
Discharge Cut-off Voltage:
Charge Method:
B6 Lite, a tiny but mighty charger, especially designed for hobbist. With B6 Lite, charging becomes faster and more pleasant. This product is suitable for charging and discharging of LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries. It has protection functions such as input high and low voltage protection and reverse input and output reverse polarity protection.
Capacitive Touch Button
B6 Lite adpots touch button, advantages of which are sturdy and durable, quick-responsive and easy operative.Charging is no more rigid.
Powerful, Tiny, Smart, that is it!
B6 Lite is highly optimized in firmware and structure, while monster power is delivered from such a tiny body. Black screen and touch button contribute to better overall experience on visualization and portability.
Specs:
- Case Material: Plastic

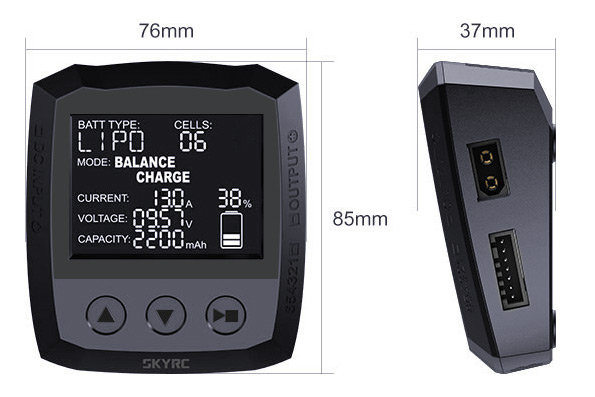

- Case Size: 76x85x37mm
- Weight: 130g

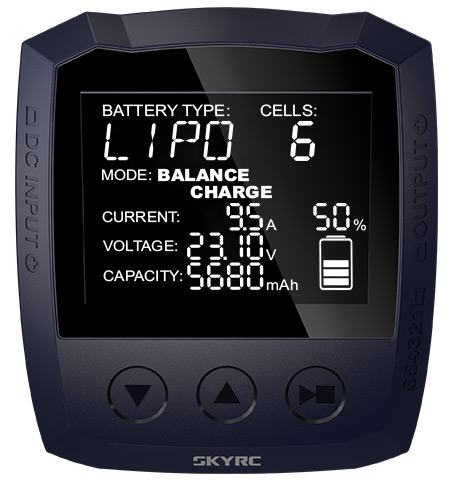

- Display Type: LCD
- Reading Voltage Range: 0.1-26.1V/cell

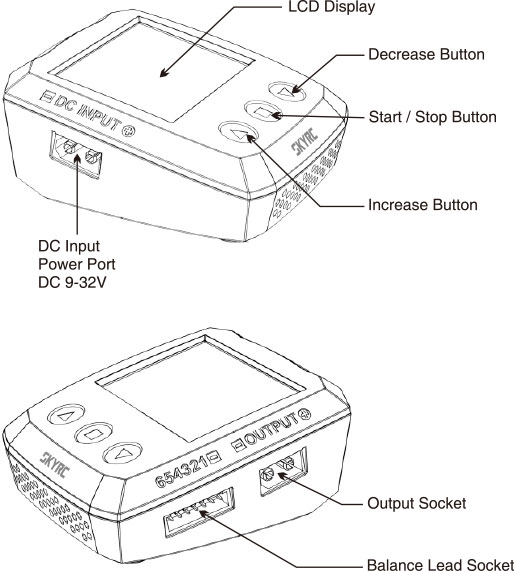

- External Port: 2-6S Balance Socket-XH, XT60 Battery Socket, DC Input
- Controls:Three buttons
- DC Input Voltage : 7-32V
- Charge Wattage: 220W
- Discharge Wattage: 5W
- LiPo/LiIon/LiFe/LiHV:1-6cells
- NiMH/NiCd: 1-15cells
Battery Capacity Range:
- NiMH/NiCd:100-50000mAh
- LiPo/LiIon/LiFe/LiHV:100-50000mAh
- Pb: 100-50000mAh
Charge Voltage:
- NiMH/NiCd: Delta peak detection
- LiPo: 4.18-4.25V/cell
- LiFe: 3.58-3.7V/cell
- LiIon: 4.08-4.2V/cell
- LiHV: 4.25-4.35V/cell
Discharge Cut-off Voltage:
- NiMH/NiCd:0.1-1.1V/cell
- LiPo:3.0-3.3V/cell
- LiFe:2.6-2.9V/cell
- LiIon: 2.9-3.2V/cell
- LiHV: 3.1-3.4V/cell
- Charge Current: 0.1A-13.0A
- Discharge Current: 0.1A-3.0A
- Balance Cells: 2-6 cells
- Balance Current: 1000mA/cell Max
- Safety Timer: 1-720minutes off
Charge Method:
- CC/CV for lithium types and lead(Pb) batteries
- Delta-peak Sensitivity for NiMH/NiCd
- Operating temperature: 0-40
- Working humidity: 0%-75%
- Storage temperature: -10-70
- Storage humidity: 0%-75%
