SkyRC S60 Laddare 60W 240VAC
520 SEK/styck
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- Drivspänning:230 VAC 12 VDC
- Laddar (Batterityp):Pb Li-Fe Li-Ion Li-Po LiHV NiMH
- Antal Ladduttag:1st
- Laddar (Li-Fe):2-4S
- Laddar (Li-Ion):2-4S
- Laddar (Li-Po):2-4S
- Laddar (NiMH):6-8S
- Laddar (Pb):6-12V
- Laddström:0.1-6A
- Urladdningsström:0.1-2A
- Uteffekt:60W
- Urladdningseffekt:10W
- Mått:112 x 106 x 52 mm
- Vikt:310g
- VarumärkeSkyRC
Beskrivning
Art.nr: SK100106-01
| Vikt: | 310 g |
| Drivspänning: | 100-240 V |
| Mått: | 112x106x52 mm |
| Laddar (Batterityp): | Multiladdare, Pb, NiCd, Li-Ion, Li-Po, Li-Fe, NiMH |
| Laddar (Li-Fe): | 2-4 Celler |
| Laddar (Li-Ion): | 2-4 Celler |
| Laddar (Li-Po): | 2-4 Celler |
| Laddar (NiMH): | 6-8 Celler |
| Laddar (Pb): | 6 / 12V |
| Laddström: | 0,1-6,0A |
| Urladdning: | 0,1-2,0A |
| Uteffekt: | 60W |
ChargeMaster1.01.zip
Charging-Info-Swe-Eng-20170309.pdf
SK100106-01_S60_Manual.pdf

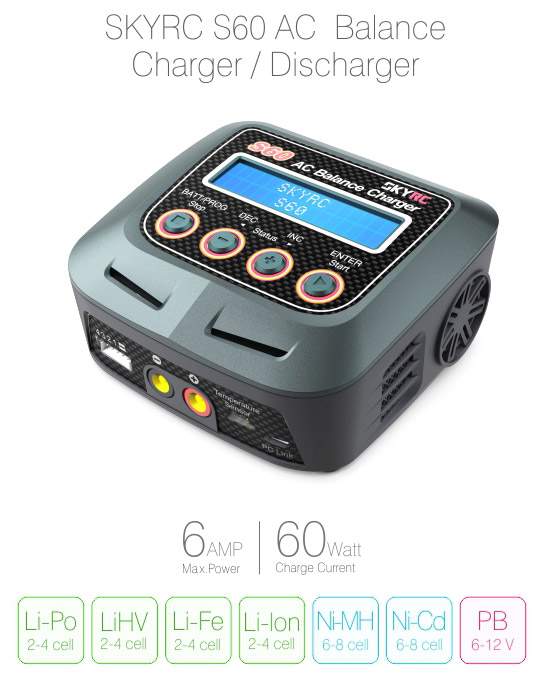

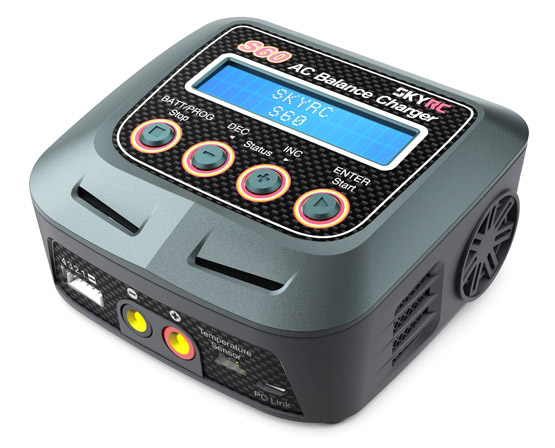

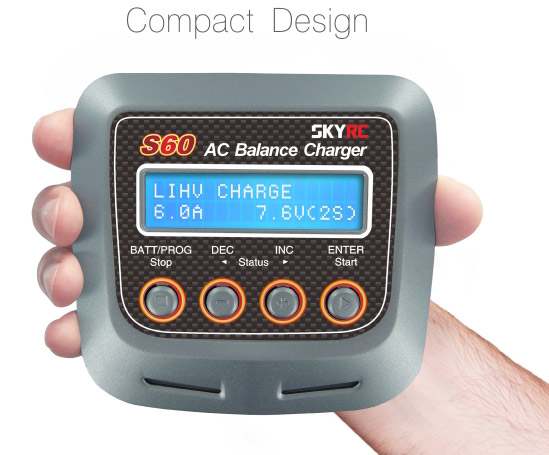

SkyRC S60 AC Professional Charger/Discharger stands out for its exquisite and stylish design. It can charge nearly all current battery types in the market, including new generation LiPo battery with end voltage 4.35V. What's more, users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. Besides that, users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safe to use.

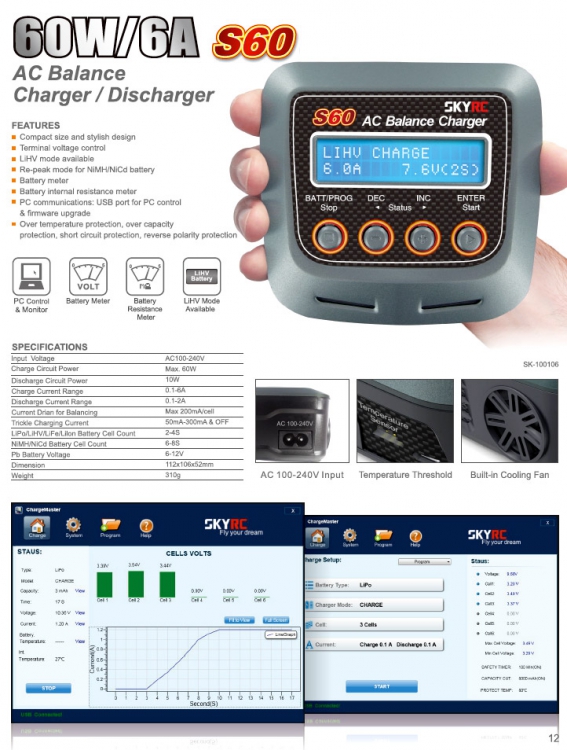

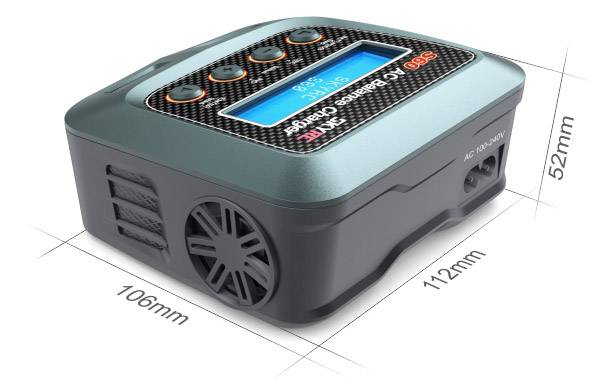

- Dimersions: 112 x 106 x 52 mm
- Net Weight: 310g
- Input Voltage: AC100-240V
- Charge Circuit Power: Max. 60W
- Discharge Circuit Power: 10W
- Charge Current Range: 0.1-6A
- Discharge Current Range: 0.1-2A

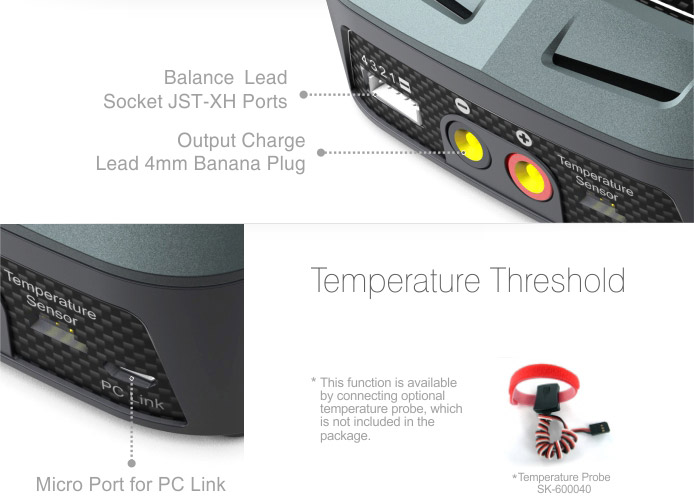

- Current Drian for Balancing Port: Max 200mA/cell
- Trickle Charging Current: 50mA-300mA & OFF
- LiPo/LiFe/Lilon/LiHV Battery Cell Count: 2-4S
- NiMH/NiCd Battery Cell Count: 6-8S
- Pb Battery Voltage: 6-12V
Included:
- SKYRC S60 Charger
- Power Cord
- 18AWG Charging Cable with XT60 Connector
PC Control
The user can monitor pack voltage, cell voltage and other data during the charging, view charge date in realtime graphs, and can also control charging and update firmware from "Charge Master".
