ToolkitRC M8D LiPo 1-8S 30A Duo Charger DC 10-49V

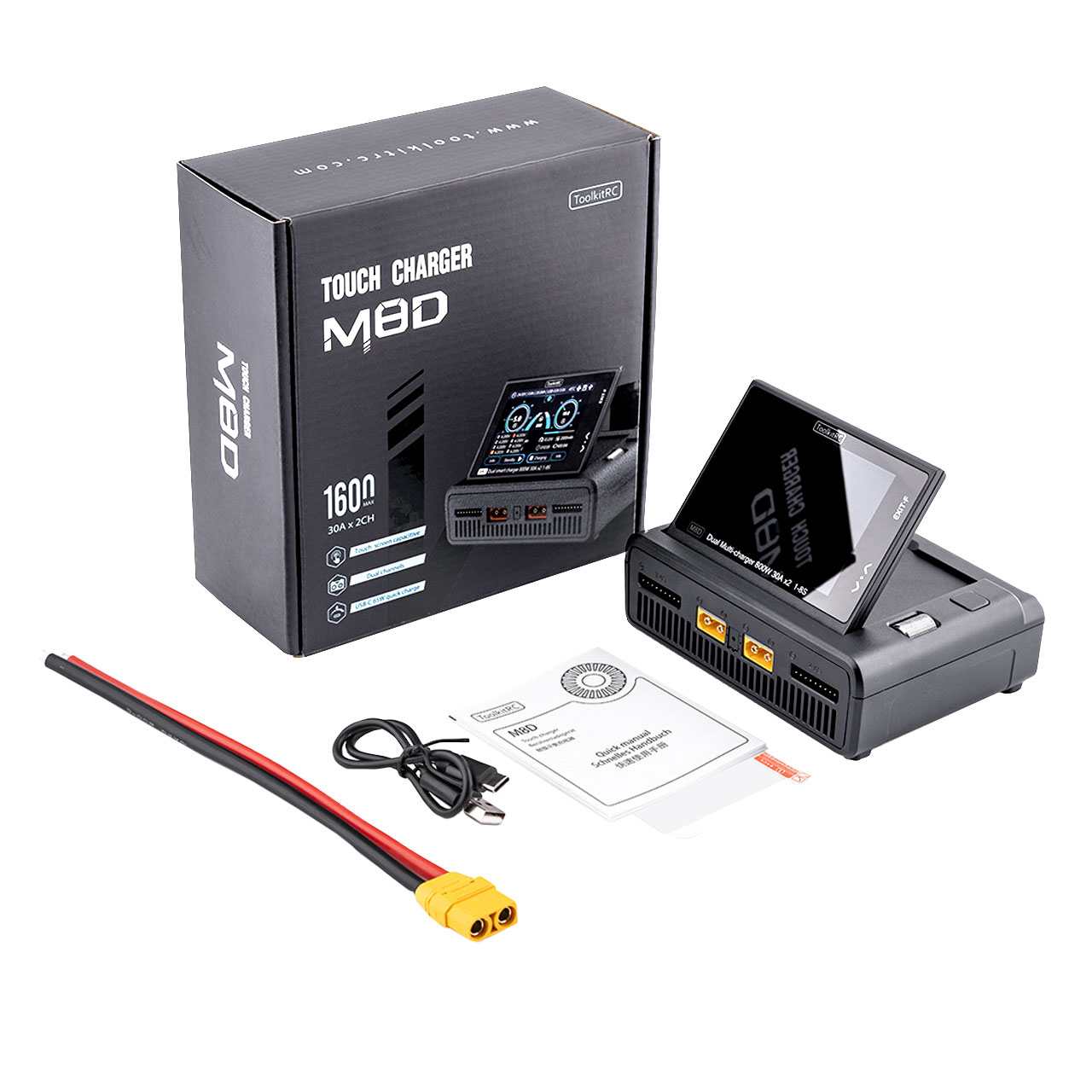

Delivery:
- 1x M8D charger
- 1x USB-C cable
- 1x XT90 input cable
- 1x Screen protector
- 1x Manual
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- FabrikatToolkit
- Drivspänning:10-49 VDC
- Laddar (Batterityp):Li-Fe Li-Ion Li-Po LiHV NiMH Pb LTO
- Antal Ladduttag:2st
- Laddar (Li-Fe):1-8S
- Laddar (Li-Ion):1-8S
- Laddar (Li-Po):1-8S
- Laddar (NiMH):1-20S
- Laddar (Pb):1-15S
- Laddström:Max 30A x2 (Asynch. Mode), Max 50A x2 (Synch. Mode)
- Urladdningsström:Max 30A (Recycle Mode), Max 10A (Normal Mode)
- Uteffekt:Max 800W x2 (Asynch. Mode), Max 1600W x2 (Synch. Mode)
- Urladdningseffekt:Max 800W (Recycle Mode), Max 40W (Normal Mode)
- Mått:140 x 110 x 50mm
- Vikt:450g
- Medföljande laddkablar:1x USB-C cable, 1x XT90 input cable
- VarumärkeToolkit RC
Beskrivning
Art.nr: TK13000

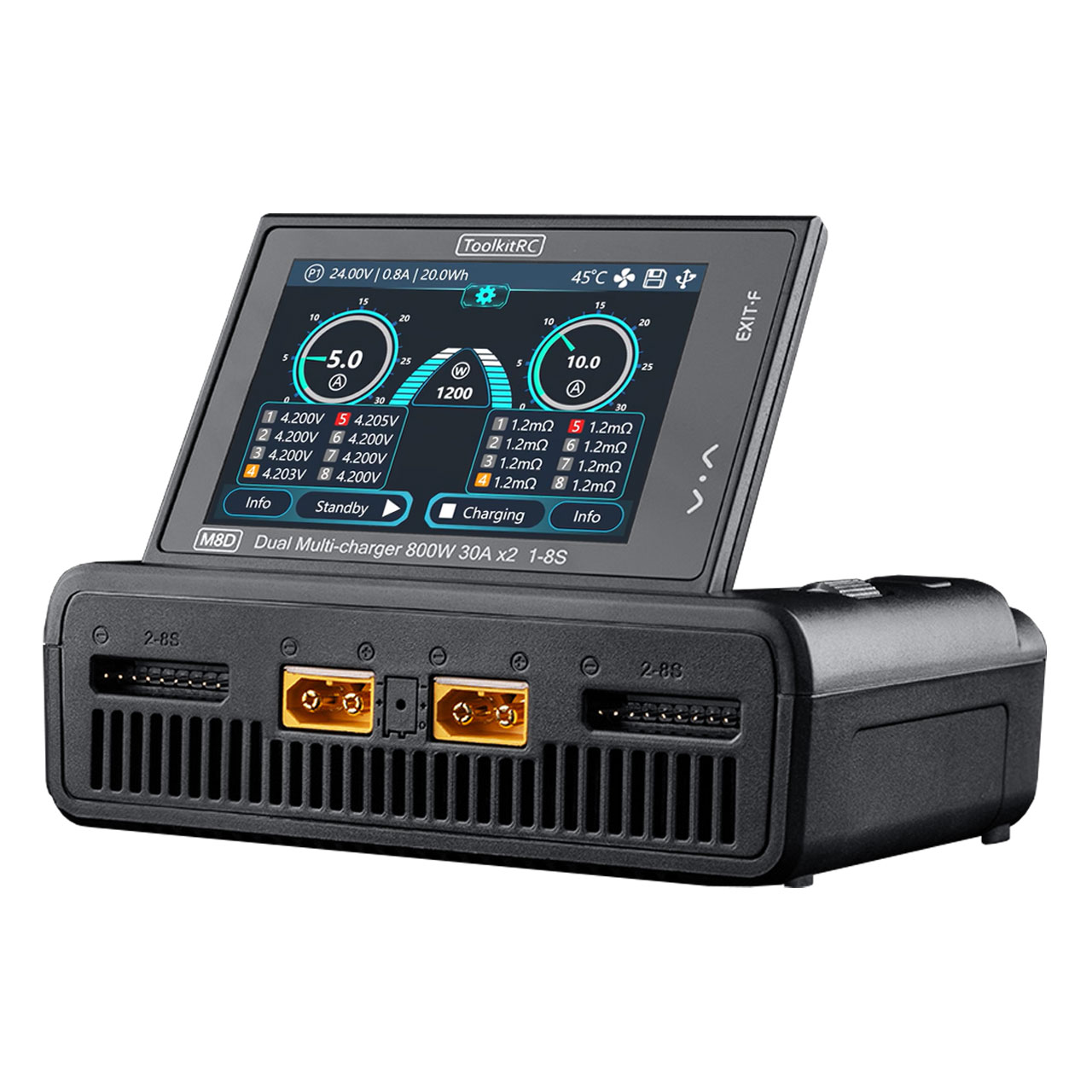

The M8D charger with a flipable touchscreen is a powerful and compact 2-channel charger for, among other things, up to 8S lithium batteries. With a total of 1600W and 50A charging current in synchronized mode, it ensures that batteries are reliably supplied with the energy they need. In addition, it has a 65W fast charging function that can achieve useable results even in a short time.
The new UI design, which is used for the first time on the M8D and is based on the user interface of real cars, makes operation via the touchscreen as simple and intuitive as possible. In the settings menu, for example, there are mostly sliders and on/off switches, while charging can be controlled using the buttons in the main screen. The display itself is optimized to clearly display the most important information of both channels. In addition to the attractive UI design, the function for destroying a battery is also new. This feature ensures that used batteries can be disposed of safely and compliantly at the end of the process.
Features:
- Up to 1600W charging power and a maximum of 50A charging current
- Max. 800W discharge power
- 2 channels and quick charge function

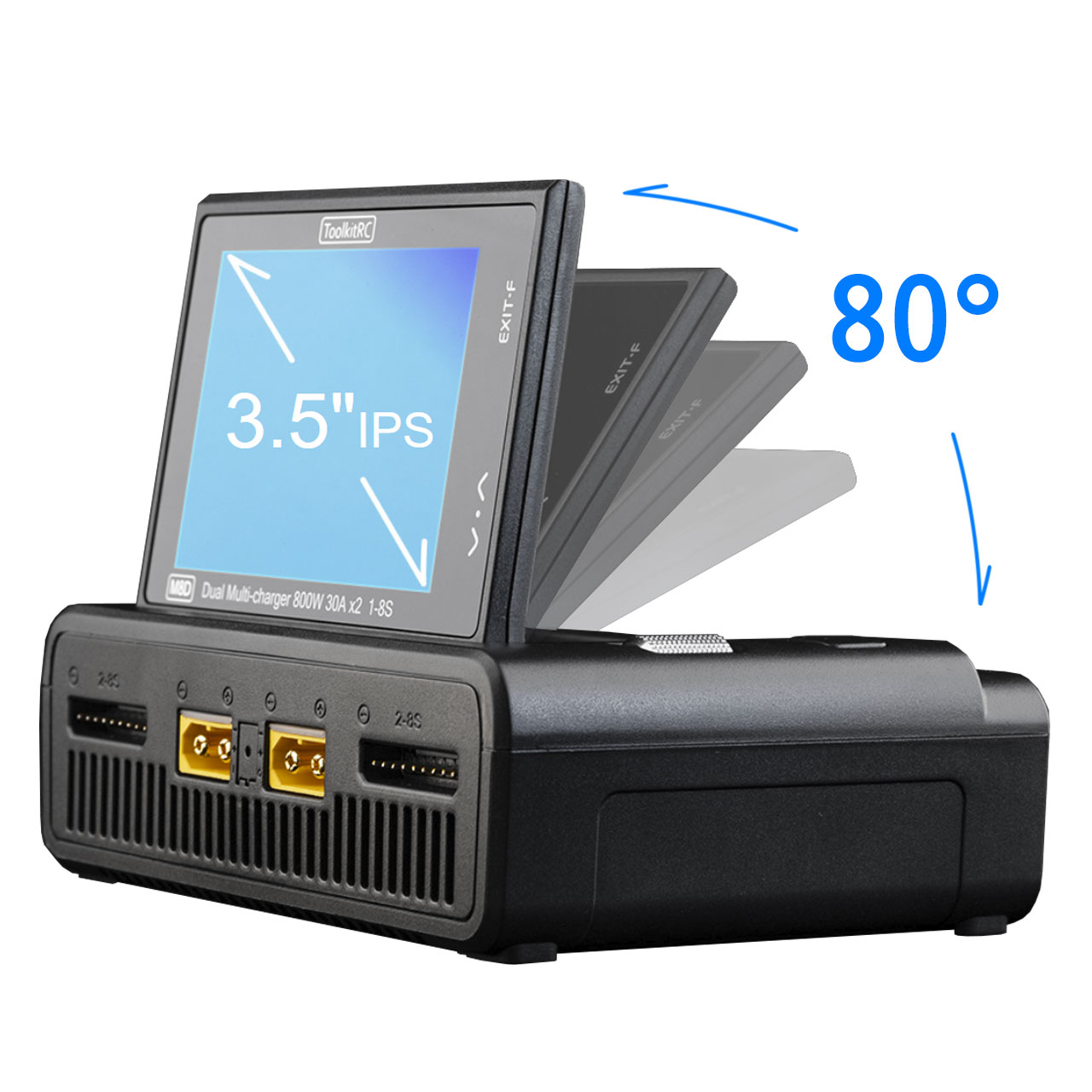

- Flipable 3.5'' touchscreen with a 480x320px resolution
- Easy-to-use user interface
- Includes USB-C port
- Various security features
Technical Specifications:
| Input Voltage: | DC 10-49V, max. 60A |
| Charge Power: | max. 30A, 800W x2 (Asynch. Mode) max. 50A, 1600W x2 (Synch. Mode) |
| Discharge Power: | max. 30A, 800W (Recycle Mode) max. 10A, 40W (Normal Mode) |
| Charging Accuracy: | - |
| USB C: | 5-20V @ 65W or Upgrade PD QC PPS AFC FCP SCP PE SFCP |
| Balance Current: | 2000mA, 4.2V |
| Cells: LiPo/LiFe/LiIon/LiHV/LTO | 1-8S |
| Cells: NiMH | 1-20S |
| Pb Battery Voltage: | 1-15S |
| Voltage: | - |
| Display: | IPS 3.5'', 480x320px Touch LCD |
| Dimensions: | 140 x 110 x 50mm |
| Weight: | 450g |
Delivery:
- 1x M8D charger
- 1x USB-C cable
- 1x XT90 input cable
- 1x Screen protector
- 1x Manual
