Kavan S15AII 2T ABC 2,26ccm
| Displacement [ccm] | 2.49 |
| Cylinder count | 1 |
| Bore [mm] | 15.2 |
| Stroke length [mm] | 13.7 |
| Operating RPM [ot./min] | 3000 - 17000 |
| Motor power (16500RPM) [W] | 510 |
| Weight [g] | 164 |
| Recommended tank volume [ml] | 60 - 120 |
| Propeller nut thread | M5 |
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandKavan
Description
Article no.: KAV28.1003
KAVAN two-stroke engines are an excellent choice for any „Sunday flyer’s“ sporty, aerobatic and scale model aircraft. Reliable operation and very easy running-in and fine-tuning make them, in the best sense of the word, „consumer's“ engines that everybody can afford to buy and fly. Given adequate care and maintenance, they will reliably power your models for many years to come.

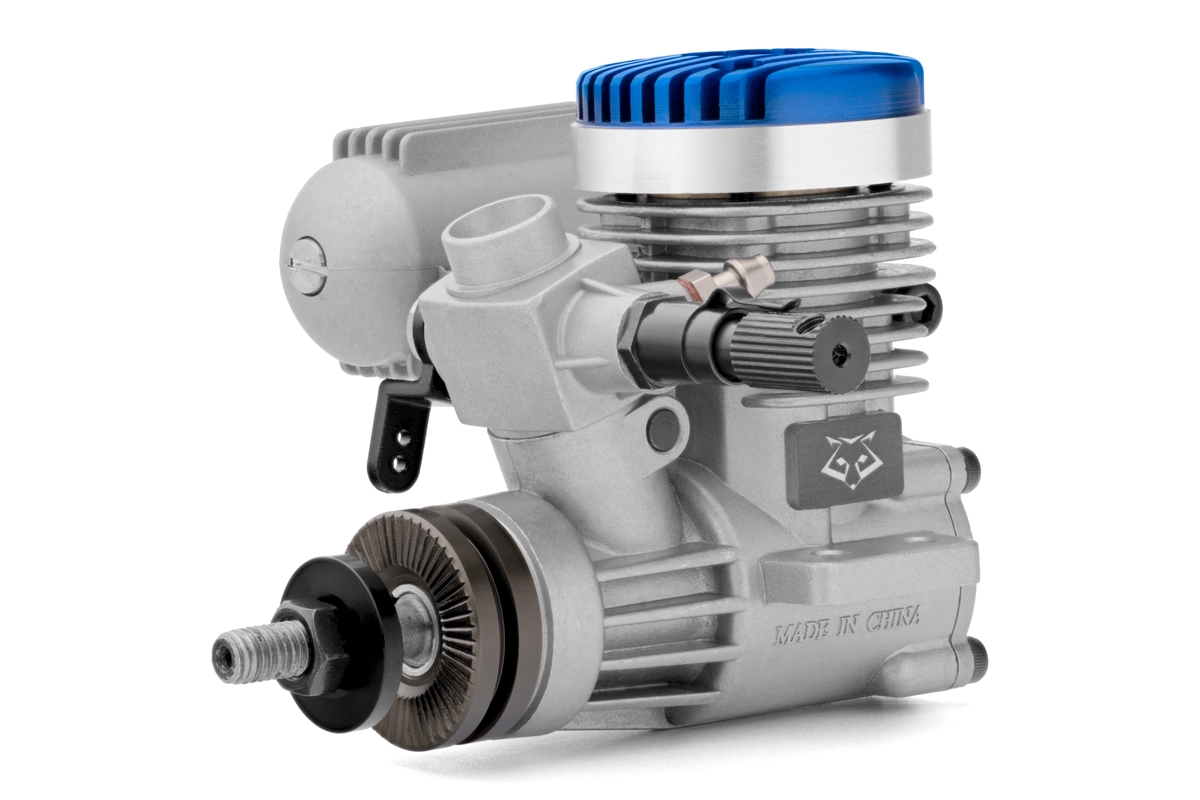

KAVAN S15A is a two-stroke engine with a glow plug of classic ABC design (Aluminium piston - Brass liner - Chromed), ideal for model aircraft of all kinds. It is equipped with a twin-needle RC carburettor; the set also includes a muffler.
The crankshaft has an M5 propeller nut/bolt thread.
Recommended propeller:
Running-in: 8×4"
Sportster and Aerobatic: 8×4", 8×5"
Scale: 8×4"
Recommended fuel tank: 60–120 ml.
Recommended fuel: „Straight“ (no nitro) fuel with 20 % castor oil or similar with a castor/synthetic oil blend or with synthetic oil and 1–15 % nitromethane. We recommend using fuel with at least a small nitromethane content - the engine operation is then really highly reliable and the carburettor adjustment is easier and less sensitive to temperature changes and other environmental influences.
Recommended glow plug: KAVAN GP-1, O.S. MAX No.6 (former A3), KAVAN Premium No.1.
Engine set includes: engine with RC carburettor and muffler, instruction manual.
