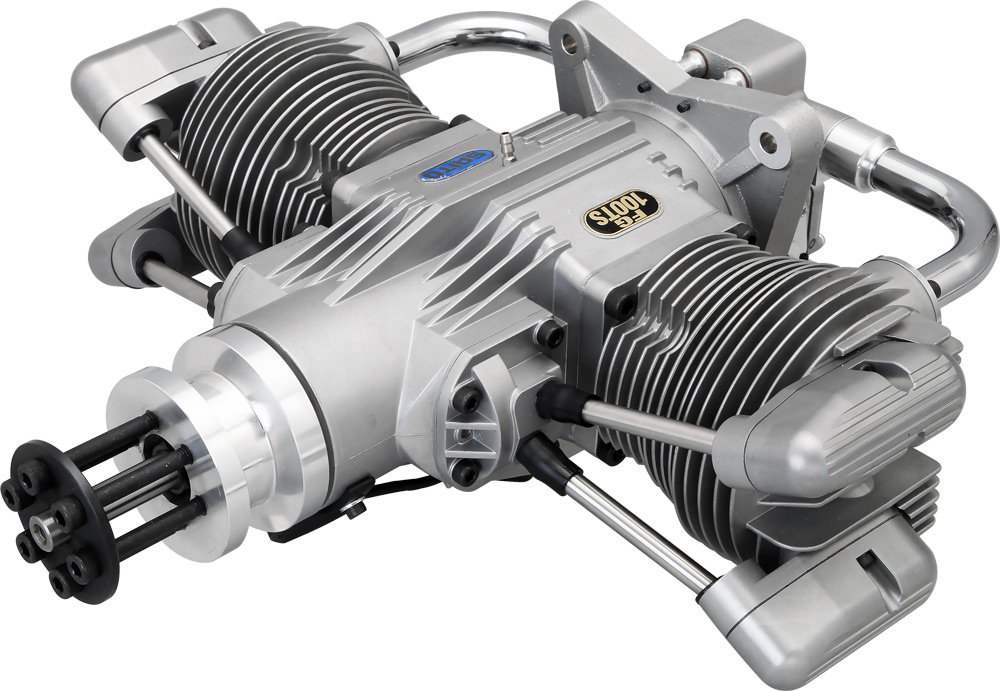

FG-100TS Twin 4-stroke Petrol engine

Saito FG-100TS - 100.3cc Twin 4-Stroke Gas Engine

This is the latest addition to the Saito range of Gas Four-Stroke engines with the same high quality build we expect from Saito - introducing the FG-100TS Twin.

• Canister muffler is unnecessary
• Mellow four stroke boxer sound with standard exhaust
• A perfect engine for aerobatic and scale models in the two-stroke 70cc size
• Ultra-fuel efficiency - approximately 20cc/minute (full throttle at ground bench)

Recommended Gasoline/Oil Mix:

• 15-20:1 Mix with Klotz Original Techniplate synthetic oil
• Do not use gasoline that is containing ethanol - use for example Aspen+/R/4

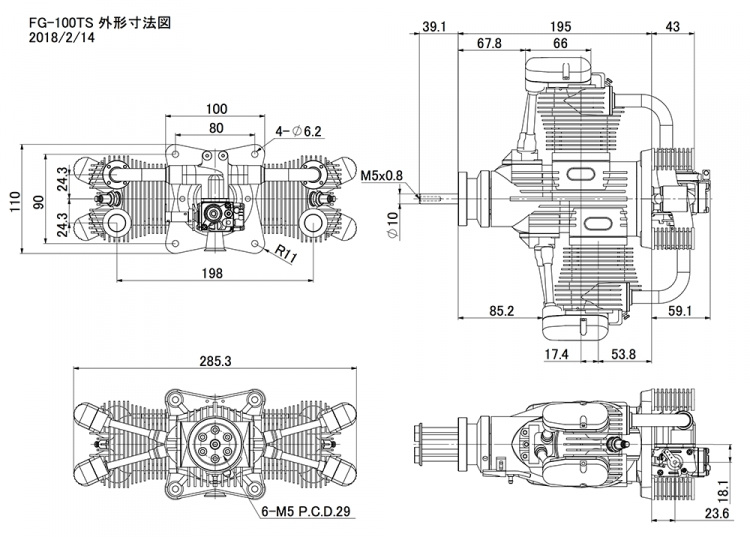

Specs:

• Displacement: 100.3 cc
• Bore: 43.6 mm (x2)
• Stroke: 33.6 mm (x2)
• Engine Weight: 4004g
• Muffler Weight: 180g
• Ignition Weight: 160g
• Ground RPM: MAX 5500～6000 (Mejzlik 26x12"）
• Recommended Prop: 25×12"～27×10"

Thrust info:

• Engine: FG-100TS
• Propeller: 26x12
• Static Thrust: 10kg
• Max weight for hover capability: 10kg
• Rec. Max weight for sportsman flying: 14.28
• Max weight for possible take-off: 20kg
