SkyRC B6 Nano 320W DC Laddare
948 SEK per pc
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- MakeSkyRC
- Power supply:12 VDC
- Charging (Battery Type):Li-Po NiCd Li-Fe Li-Ion LiHV NiMH Pb
- Number of Outputs:1pc
- Traxxas iDNo
- Charging (Li-Fe):1-6 Cells
- Charging (Li-Ion):1-6 Cells
- Charging (Li-Po):1-6 Cells
- Charging (NiMH):1-15 Cells
- Charging (Pb):2-20V
- Charging current:0.1-15,0A
- Discharge current:0.1-3,0A
- Output:320W
- Measure:76x85x37 mm
- Weight:130 g
- BrandSkyRC
Description
Article no.: SK100134

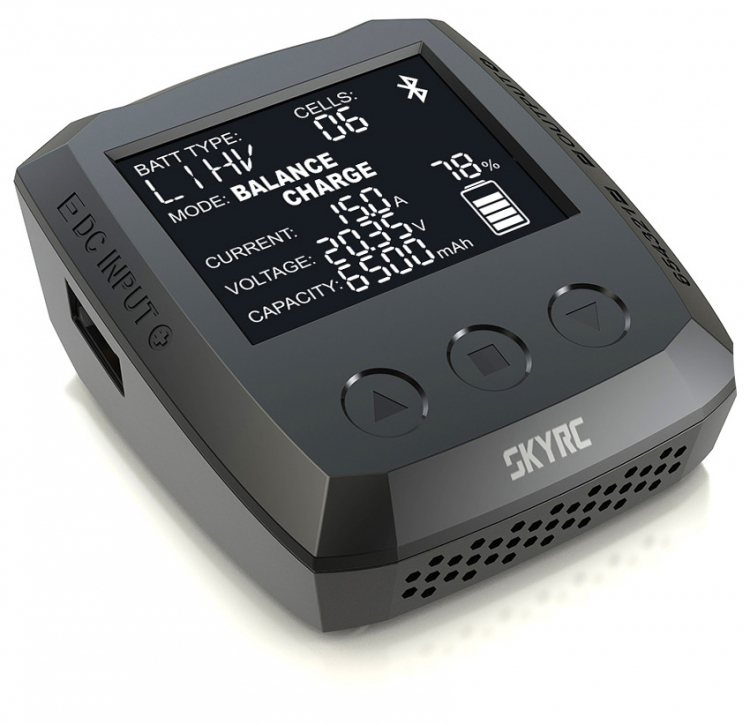

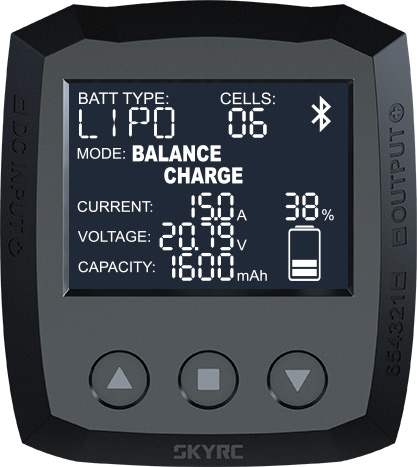

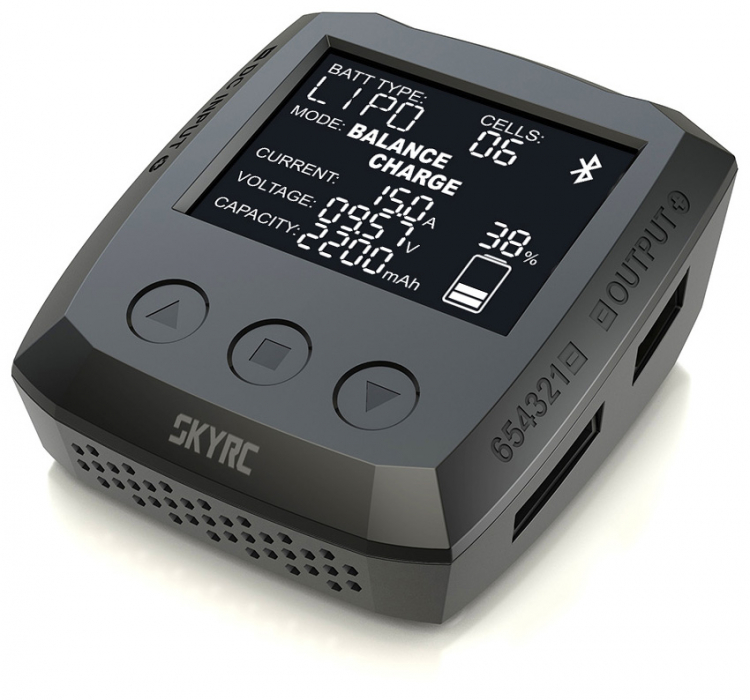

SkyRC B6 Nano - 320W DC Laddare
The B6 Nano is a DC charger with 320W power that supports charging and discharging of various types of batteries including LiPo/LiFe/LiIon/LiHV and NiMH/NiCd (XT60 connector). It has multiple types of protection like high/low voltage protection and reverse protection etc.
To take advantage of B6 nano's full power capability, the power source should be 9-32V DC, and output power should be capable of 380W or higher. Low quality DC power source may damage your B6 nano charger. We recommend you to choose the SKYRC 380W Power Supply.

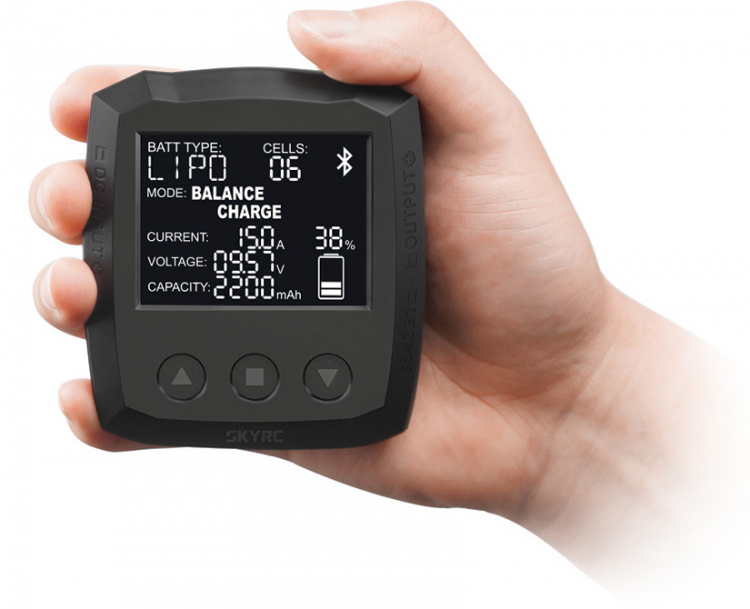

TINY - Half height of iPhone X
MIGHTY - 15A/320W
APP - Smartphone Control
Built-in Bluetooth
Specifications:
B6 nano: This product is suitable for charging and discharging of LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries with an XT60 connector. It has protection functions such as input high and low voltage protection and reverse input and output reverse polarity protection.
Size & weight:
Case Material: Plastic
Case Size: 76 x 85 x 37 mm
Weight: 130g
Display:
Display type: LCD
Reading Voltage Range: 0.1-26.1V/cell
Buttons & Ports:
External Port: 2-6S Balance Socket-XH, XT60 Battery Socket, DC Input
Controls:Three buttons
Power:
DC Input Voltage : 9-32V
Charge Wattage: 320W
Discharge Wattage: 5W
Battery:
LiPo/LiIon/LiFe/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 2-20V
Battery Capacity Range:
NiMH/NiCd: 100-50000mAh
LiPo/LiIon/LiFe/LiHV:100-50000mAh
Pb: 100-50000mAh
Charge Voltage:
NiMH/NiCd: Delta-Peak detection
LiPo: 4.18-4.25V/cell
LiFe: 3.58-3.7V/cell
LiIon: 4.08-4.2V/cell
LiHV: 4.25-4.35V/cell
Discharge Cut-off Voltage:
NiMH/NiCd: 0.1-1.1V/cell
LiPo: 3.0-3.3V/cell
LiFe: 2.6-2.9V/cell
LiIon: 2.9-3.2V/cell
LiHV: 3.1-3.4V/cell
Free App:
Scan with your Smartphone to download

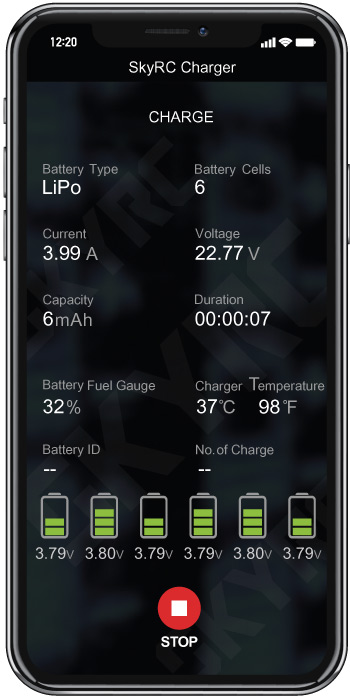

Smart Phone Control (both iOS and Android) The free SkyCharger App unleashes tons of features and advanced settings, which tremendously expands the user experience of B6 nano.
Supports 11 languages
Simplified Chinese, Traditional Chinese, English, Japanese, Spanish, Swedish, Polish, French, Czech, Italian, German & Bokmal Norwegian
Bluetooth connection
Bluetooth 4.0, APP support operation, charge and discharge complete push notification, upgrade
Working & Storage:
Operating temperature: 0-40°C
Working humidity: 0-75%
Storage temperature: -10-70°C
Storage humidity: 0-75%
The B6 Nano is a DC charger with 320W power that supports charging and discharging of various types of batteries including LiPo/LiFe/LiIon/LiHV and NiMH/NiCd (XT60 connector). It has multiple types of protection like high/low voltage protection and reverse protection etc.
To take advantage of B6 nano's full power capability, the power source should be 9-32V DC, and output power should be capable of 380W or higher. Low quality DC power source may damage your B6 nano charger. We recommend you to choose the SKYRC 380W Power Supply.
TINY - Half height of iPhone X
MIGHTY - 15A/320W
APP - Smartphone Control
Built-in Bluetooth
Specifications:
B6 nano: This product is suitable for charging and discharging of LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries with an XT60 connector. It has protection functions such as input high and low voltage protection and reverse input and output reverse polarity protection.
Size & weight:
Case Material: Plastic
Case Size: 76 x 85 x 37 mm
Weight: 130g
Display:
Display type: LCD
Reading Voltage Range: 0.1-26.1V/cell
Buttons & Ports:
External Port: 2-6S Balance Socket-XH, XT60 Battery Socket, DC Input
Controls:Three buttons
Power:
DC Input Voltage : 9-32V
Charge Wattage: 320W
Discharge Wattage: 5W
Battery:
LiPo/LiIon/LiFe/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 2-20V
Battery Capacity Range:
NiMH/NiCd: 100-50000mAh
LiPo/LiIon/LiFe/LiHV:100-50000mAh
Pb: 100-50000mAh
Charge Voltage:
NiMH/NiCd: Delta-Peak detection
LiPo: 4.18-4.25V/cell
LiFe: 3.58-3.7V/cell
LiIon: 4.08-4.2V/cell
LiHV: 4.25-4.35V/cell
Discharge Cut-off Voltage:
NiMH/NiCd: 0.1-1.1V/cell
LiPo: 3.0-3.3V/cell
LiFe: 2.6-2.9V/cell
LiIon: 2.9-3.2V/cell
LiHV: 3.1-3.4V/cell
Free App:
Scan with your Smartphone to download
Smart Phone Control (both iOS and Android) The free SkyCharger App unleashes tons of features and advanced settings, which tremendously expands the user experience of B6 nano.
Supports 11 languages
Simplified Chinese, Traditional Chinese, English, Japanese, Spanish, Swedish, Polish, French, Czech, Italian, German & Bokmal Norwegian
Bluetooth connection
Bluetooth 4.0, APP support operation, charge and discharge complete push notification, upgrade
Working & Storage:
Operating temperature: 0-40°C
Working humidity: 0-75%
Storage temperature: -10-70°C
Storage humidity: 0-75%
