SkyRC SK-200015-17 Power supply 50A/1200W
3,995 SEK per pc
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- Power supply:110-240 VAC
- Output:15-30VDC / 50A / 1200W

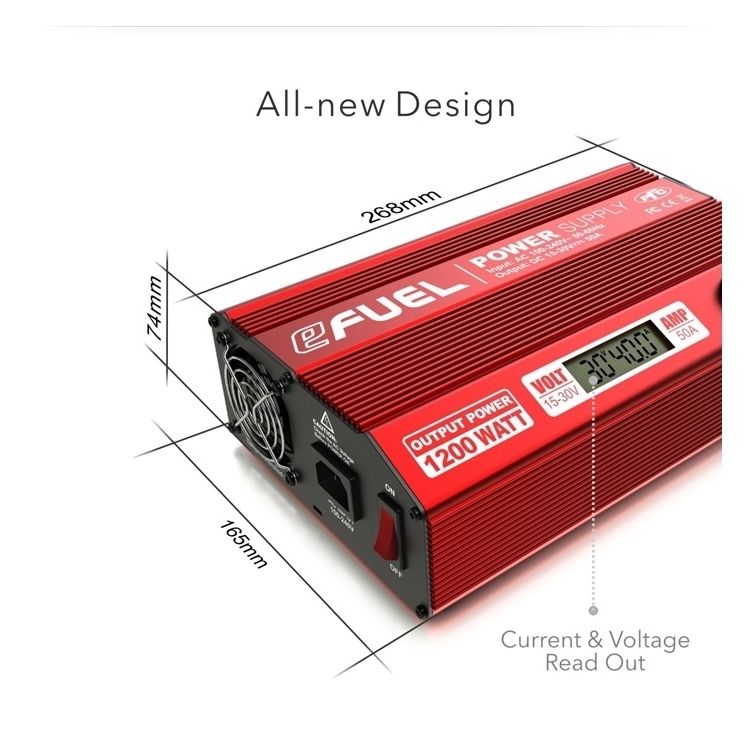

- Measure:305x170x85 mm
- Weight:3080 g
- BrandSkyRC
Description
Article no.: SK200015
| Vikt: | 3080 g |
| Drivspänning: | 100-240 V |
| Mått: | 305x170x85 mm |
| Uteffekt: | 15-30VDC / 50A / 1200W |

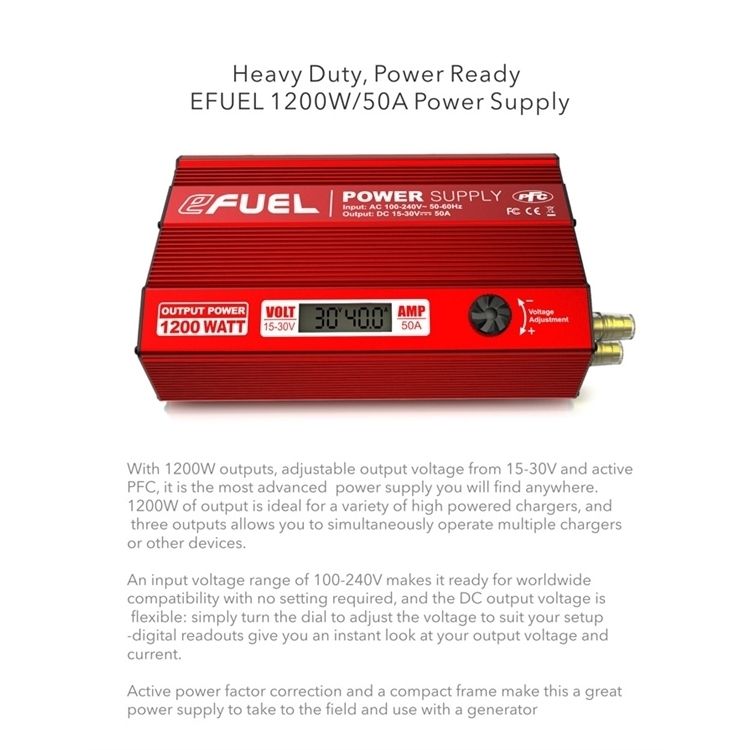

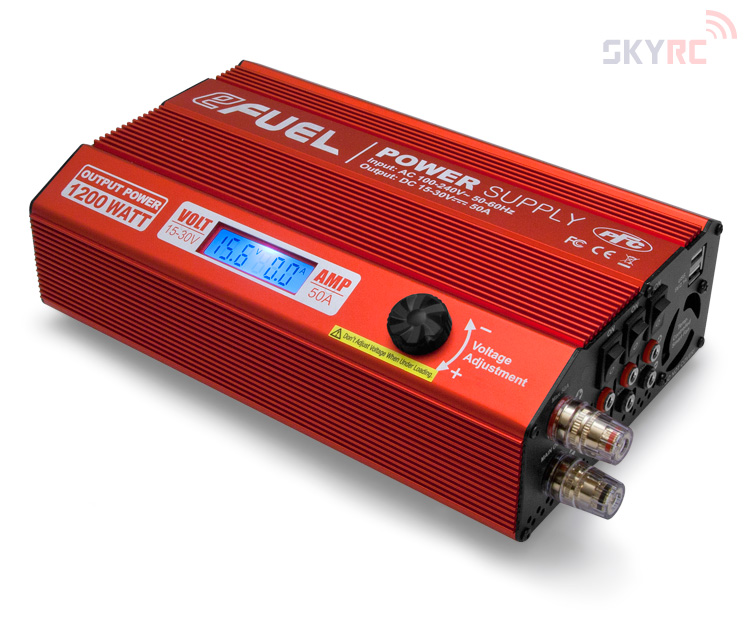

Heavy Duty, Power Ready EFUEL 1200W/50A Power Supply

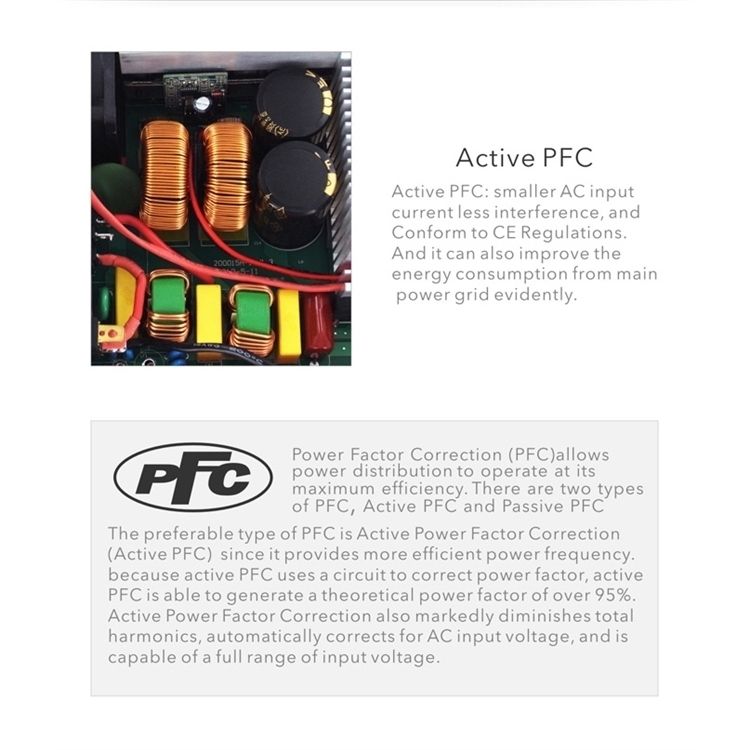

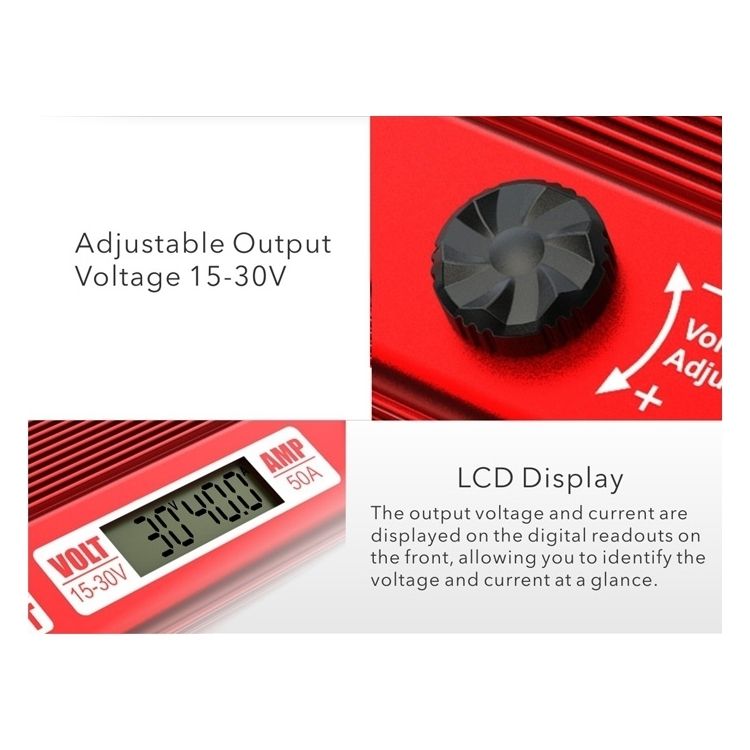

With 1200W outputs, adjustable output voltage from 15-30V and active PFC, it is the most advanced power supply you will find anywhere. 1200W of output is ideal for a variety of high powered chargers, and three outputs allow you to simultaneously operate multiple chargers or other devices.An input voltage range of 100-240V makes it ready for worldwide compatibility with no setting required, and the DC output voltage is flexible: simply turn the dial to adjust the voltage to suit your setup-digital readouts give you an instant look at your output voltage and current. Active power factor correction and a compact frame make this a great power supply to take to the field and use with a generator.

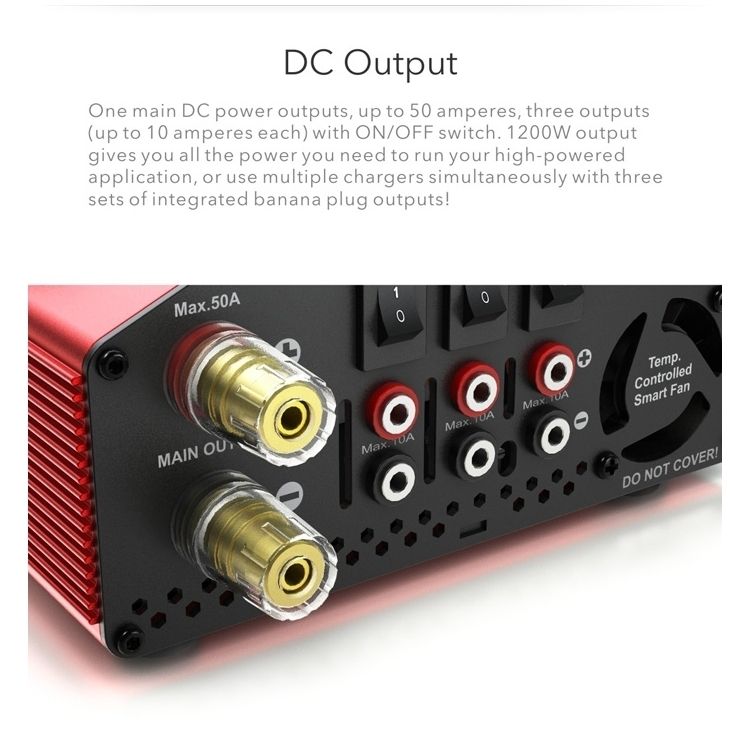

DC Output

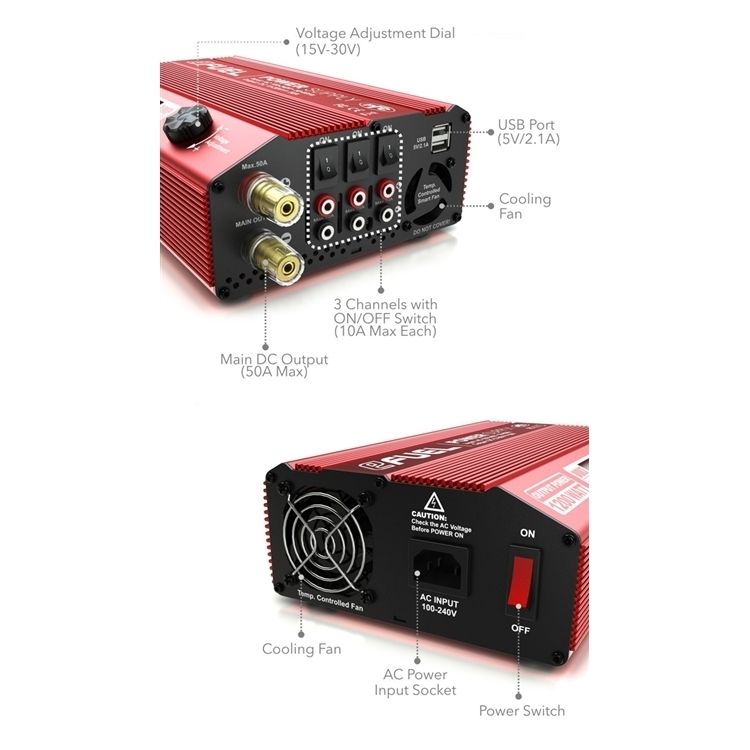

One main DC power output, up to 50 amperes, three outputs (up to 10 amperes each) with ON/OFF switch. 1200W output gives you all the power you need to run your high-powered application, or use multiple chargers simultaneously with three sets of integrated banana plug output.

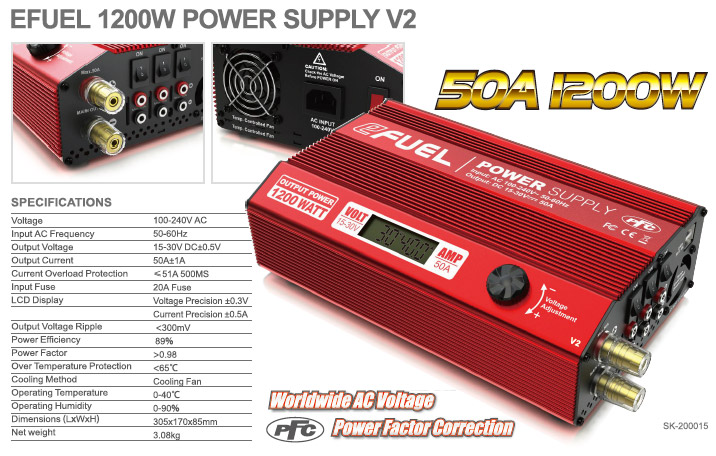

Specifications:

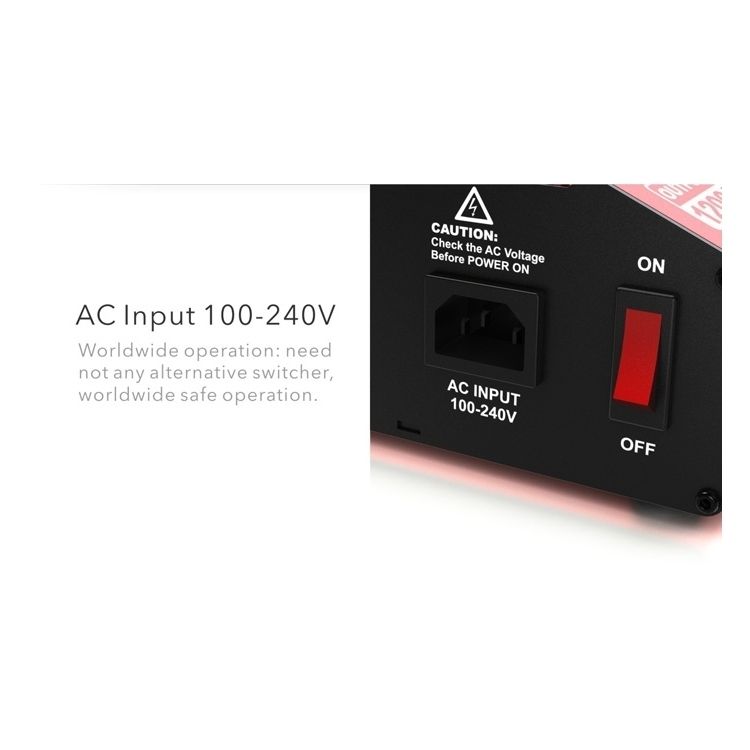

- Voltage: 100-240V AC
- Input AC Frequency: 50-60Hz
- Output Voltage: 15-30V DC±0.5V
- Output Current: 50A±1A
- Current Overload Protection: 51A 500MS
- Input Fuse: 20A Fuse
- LCD Display Voltage Precision: ±0.3V
- Current Precision: ±0.5A
- Over Temperature Protection: <65°

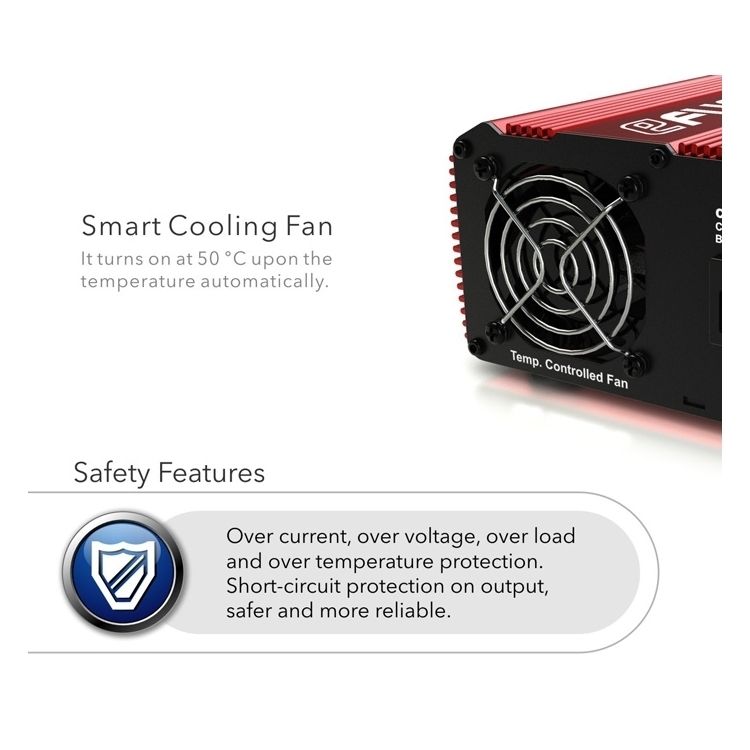

- Cooling Method: Cooling Fan
- Operating Temperature: 0-40°
- Size: L305 x W170 x H85 mm
- Weight: 3.08 kg
SK200015_50A_1200W_PS_Manual.pdf
Files and media
 | Manual |
